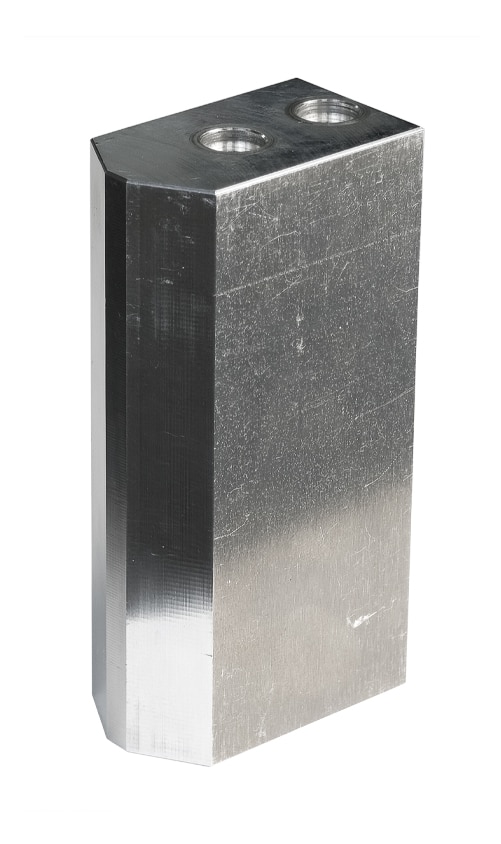

Aluminum/Steel Gripper Jaw Blanks
End of Arm Tooling
Each kit includes one jaw and two bolts. High tensile aluminum alloy l material. Compatible with VGP and VZP grippers.
Each kit includes one jaw and two bolts. High tensile aluminum alloy l material. Compatible with VGP and VZP grippers.

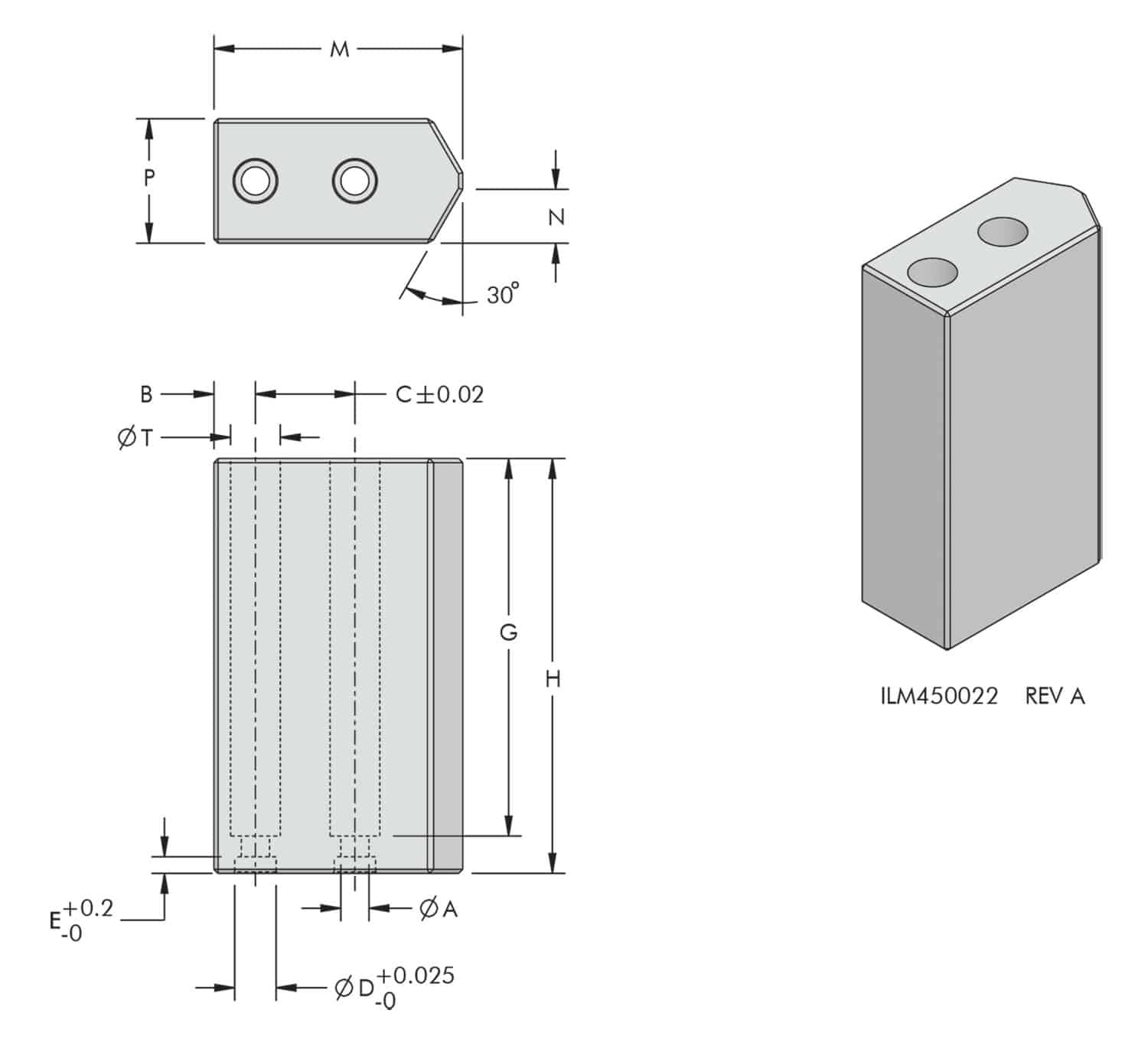

| Model No. | A | B | C | D | E | G | H | M | N | P | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VS-LL-40 | 2.7 | 4 | 8 | 4 | 2 | 36 | 40 | 22.2 | 4 | 10 | 5 |
| VS-LL-50 | 3.4 | 5 | 12 | 5 | 2 | 45.5 | 50 | 30 | 6.5 | 15 | 6 |
| VS-LL-64 | 4.5 | 5 | 13 | 6 | 2.5 | 59.5 | 64 | 32 | 8.5 | 20 | 8 |
| VS-LL-80 | 5.5 | 6 | 16 | 8 | 2.5 | 74.5 | 80 | 41 | 11.5 | 25 | 10 |
| VS-LL-100 | 6.6 | 7 | 20 | 10 | 3 | 94.5 | 100 | 51 | 12.5 | 30 | 11 |
| VS-LL-125 | 6.6 | 9.5 | 24 | 10 | 3 | 119.5 | 125 | 60 | 14.5 | 35 | 11 |
| VS-LL-160 | 11 | 10 | 32 | 14 | 4 | 151 | 160 | 80 | 16 | 40 | 18 |
| VS-LL-200 | 13 | 15 | 40 | 16 | 4 | 186 | 200 | 96 | 18 | 45 | 20 |
| VS-LL-240 | 13 | 15.5 | 44 | 16 | 4 | 204 | 220 | 109 | 20 | 50 | 20 |
| VS-LL-300 | 17.5 | 20 | 46 | 22 | 6 | 185 | 200 | 130 | 22 | 60 | 26 |
| Model No. | A | B | C | D | E | G | H | M | N | P | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VS-CC-40 | 2.7 | 4 | 8 | 4 | 2 | 36 | 40 | 22.2 | 4 | 10 | 5 |
| VS-CC-50 | 3.4 | 5 | 12 | 5 | 2 | 45.5 | 50 | 30 | 6.5 | 15 | 6 |
| VS-CC-64 | 4.5 | 5 | 13 | 6 | 2.5 | 59.5 | 64 | 32 | 8.5 | 20 | 8 |
| VS-CC-80 | 5.5 | 6 | 16 | 8 | 2.5 | 74.5 | 80 | 41 | 9 | 22 | 10 |
| VS-CC-100 | 6.6 | 7 | 20 | 10 | 3 | 94.5 | 100 | 51 | 12.5 | 30 | 11 |
| VS-CC-125 | 6.6 | 9.5 | 24 | 10 | 3 | 119.5 | 125 | 60 | 14.5 | 35 | 11 |
| VS-CC-160 | 11 | 10 | 32 | 14 | 4 | 151 | 160 | 80 | 16 | 40 | 18 |
| VS-CC-200 | 13 | 15 | 40 | 16 | 4 | 186 | 200 | 96 | 13.5 | 40 | 20 |
| VS-CC-240 | 13 | 15.5 | 44 | 16 | 4 | 204 | 220 | 109 | 20 | 50 | 20 |
| VS-CC-300 | 17.5 | 20 | 46 | 22 | 6 | 185 | 200 | 130 | 22 | 60 | 26 |
