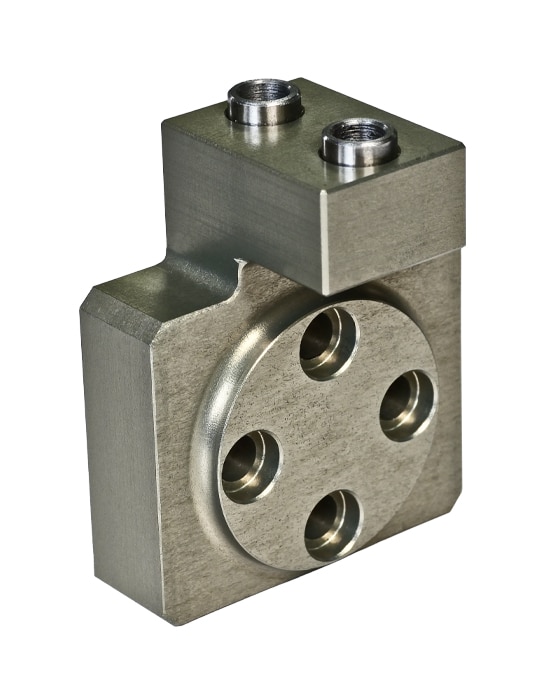

VY-LL Intermediate Jaw for VSO & VZO Universal Grippers
End of Arm Tooling
Made of high tensile aluminum alloy material.
Each kit includes one jaw and two bushings.
Bushings are the same size as the matching gripper.
Each kit includes one jaw and two bushings.
Bushings are the same size as the matching gripper.
*If the max finger weight is exceeded, it is important to throttle the air pressure so that the jaw
movement occurs without any hitting or bouncing. Not correcting this may reduce service life.
movement occurs without any hitting or bouncing. Not correcting this may reduce service life.

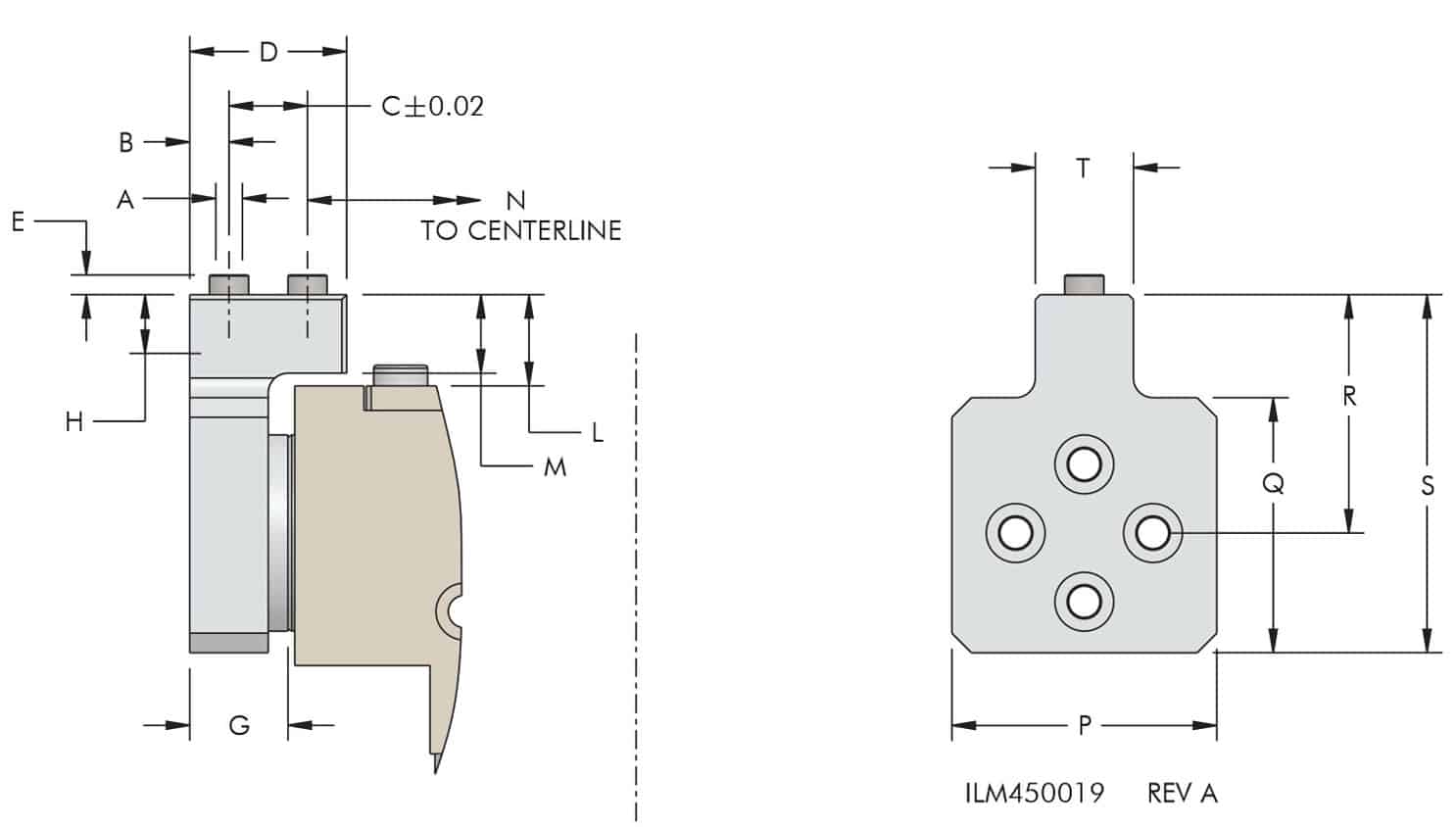

Unless otherwise stated dimensions are in mm.
| Model No. | A | B | C | D | E | G | H | L | M | N | P | Q | R | S | T | Recommended Part Weight (kg) | Max Finger Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VY-LL-50 | M2.5 | 4 | 8 | 16 | 2 | 10 | 6 | 9 | 8 | C1 - 31.5 - 35.5 / C2 - N/A | 27 | 26 | 24.3 | 36.5 | 10 | 0.02 | 0.15 |
| VY-LL-64 | M3 | 4 | 12 | 20 | 2 | 13 | 8 | 10 | 9 | C1 - 36 - 42 / C2 - 36 - 39 | 32 | 28 | 25.5 | 39.5 | 12.5 | 0.03 | 0.3 |
| VY-LL-80 | M4 | 5 | 13 | 23 | 2.5 | 15.25 | 10 | 14 | 12 | C1 - 43.5 - 51.5 / C2 - 43.5 - 47.5 | 37 | 34 | 34 | 50.5 | 16 | 0.05 | 0.5 |
| VY-LL-100 | M5 | 6 | 16 | 28 | 2.5 | 16.25 | 10 | 14 | 12 | C1 - 52.5 - 62.5 / C2 - 52.5 - 57.5 | 44 | 37 | 35.5 | 53.5 | 20 | 0.08 | 0.95 |
| VY-LL-125 | M6 | 7 | 20 | 34 | 3 | 21 | 14 | 18 | 16 | C1 - 66.5 - 79.5 / C2 - 66.5 - 72.5 | 53 | 45 | 44.5 | 66.5 | 24 | 0.15 | 1.75 |
| VY-LL-160 | M6 | 8 | 23 | 40 | 3 | 25 | 14 | 18 | 16 | C1 - 87 - 103 / C2 - 87 - 92 | 64 | 55 | 49.5 | 76.5 | 30 | 0.21 | 3 |
