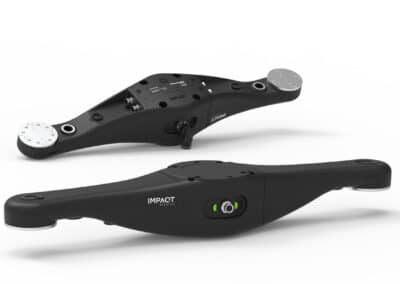

NEW! PQ180 – Range Extension, Narrow Design
Universal Pneumatic EOAT Interface
- 180° EOAT Offset – ideal for Material Handling
- 4 sensor ports – no more long wires for sensors
- 870 grams – maximize robot payload utilization
- 200 mm extension – increase robot reach for better machine utilization
- IP 54 rated – perfect for usage in harsh environments
- Air blow-off port cleans oil and burr easily
Unless otherwise specified, dimensions are in millimeters.
*Must be ordered separately.
When was the last time there was a path-breaking innovation in pneumatics? Magic with pneumatics, we call it ‘pneumagiQ’!
Excited to launch pneumagiQ PQ180 – a Universal Pneumatic EOAT Interface that extends the reach of your robot. Installing your pneumatic EOATs is no longer a nightmare. pneumagiQ makes it ‘Plug & Play’.
| Model No. | Mountable pneumatic EOAT | Angle between EOAT | Range Extension | Air blow-off ports | Sensor connectors | Response Time | Operating medium | Weight (Kg) | Max Payload per Tool Mounting Face | Overall payload | Airflow rate for EOAT | Airflow rate at Auxiliary port (Air blow-off) | Max. Operating Pressure | Universal robots | Other robots / controllers | I/O Connector | Air Inlet | Sensor port | Air Blow-off Port Type | Robot Mounting | Tool Mounting | Operational Voltage | Nominal operational current | Ambient Temperature Range | Noise Level | Ingress protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61020224 | 2 | 180° | 200 mm (7 7/8 in) | 2 | 4 | <30 ms (Modbus RTU) | Compressed Air | 870g / 1.9lbs | 3.5 kg / 7.7 lbs | 5 kg / 11 lbs | 85 slpm / 3 scfm | 230 slpm / 8.1 scfm | N/A | URCap | Modbus RTU (RS-485) | M8 8 pin female connector | Ø8 mm tube quick connector | m8 3pin female connector | G 1/4 female thread | pneumagiQ Robot Coupler | pneumagiQ Tool Coupler | 24V DC | 600 mA | +5°C to 50°C / 41°F to 122°F | <50 dB | IP54 |
