VFB Self-Centering Clamping Force Block

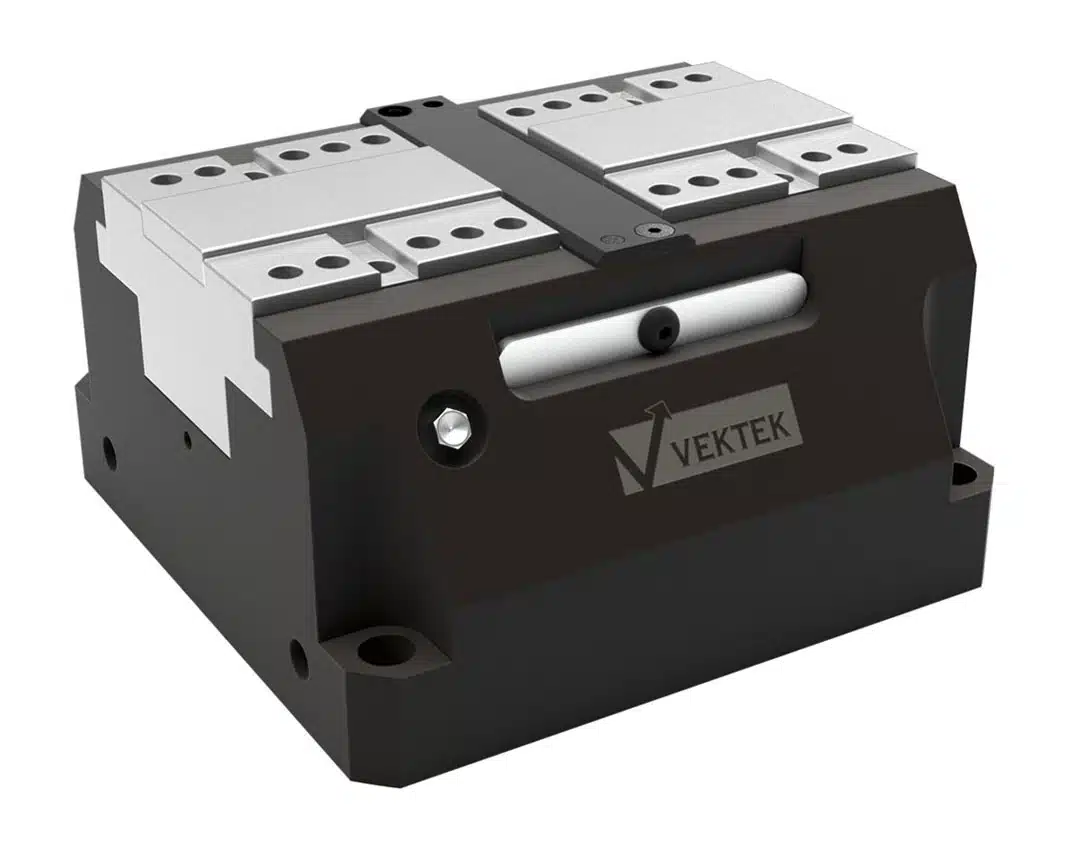

Hydraulic Self-Centering Vise

Vektek’s VFB hydraulic power vise maintains workpiece stability and jaw alignment during heavy milling operations while promoting consistent operator setups. From a clamping force of 6,800 N for moderate fixturing tasks to a holding power of 62,000 N for securing large materials during aggressive cuts, our workholding solutions support CNC machinists and manufacturing engineers.

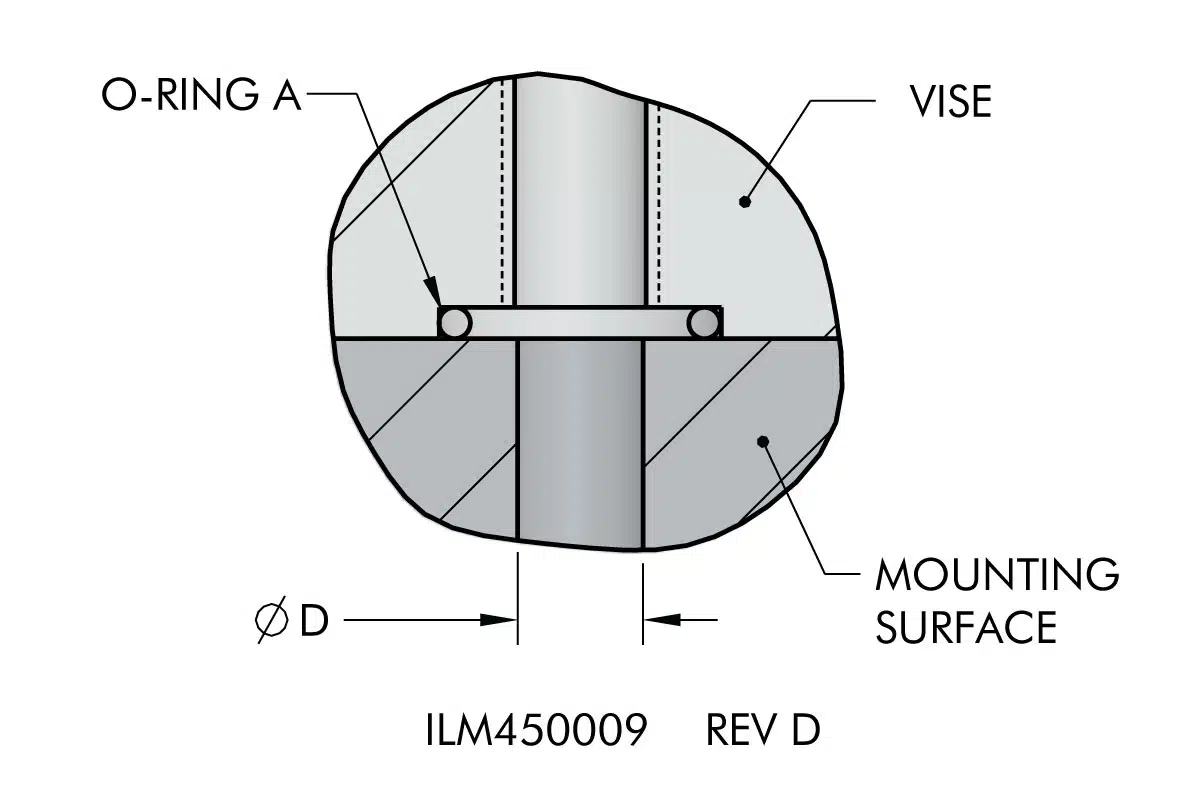

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

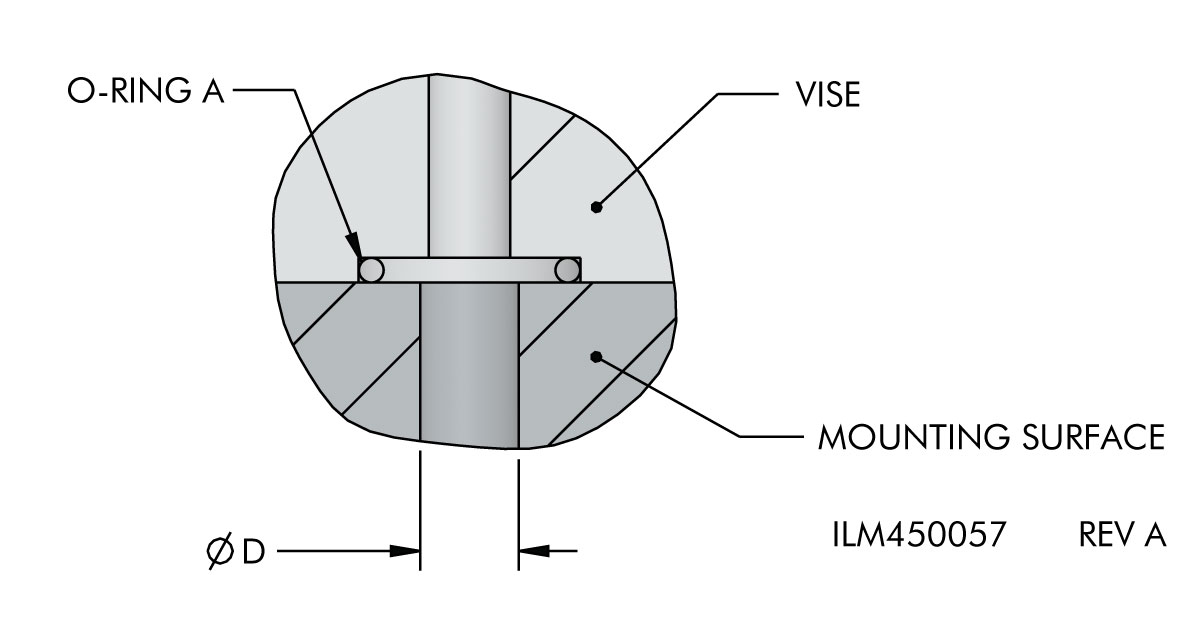

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

Max operating pressure 60 or 120 bar.
High jaw repeatability:
VFB 66-100: 0.01MM
VFB 160-200: 0.02MM
VFB 250: 0.03MM over 100 cycles
Wedge and piston design.
Stroke range from 4 to 30MM.
Operating temperature range from 5° to 60° C.
Hardened steel construction.
Hydraulic connections on the side or bottom.

STANDARD PART NUMBER TO ORDER → VFB-160-C1-PN

VFB

VISE

VFB

160

SIZE

66 | 100 | 160 | 200 | 250

C1

VERSION

C1 = Long stroke
C2 = Short stroke, greater gripping force – Not available in size 66 pneumatic, 66-200-250 hydraulic

PN

ACTUATION

PN = Pneumatic
ID = Hydraulic

STANDARD PART NUMBER WITH OPTIONS → VFB-160-C1-PN-X-XX-X-

OPTIONS

D = Version with serrated base jaw 1.5 x 60º
Z = High precision version +/-0.01

OPTIONAL ACCESSORIES

MH = Top jaw blank (kit of 2 pcs)
MT = Serrated top jaw blank 1.5 x 60º (kit of 2 pcs)
S = Mounting kit for inductive sensor application (excluded VFB 66)
Inductive sensor (M5 for VFB 100-160, M8 for VFB 200-250)

* The gripping force is the arithmetic sum of the individual forces at “F” distance at max pressure.
** Closing and opening times are purely the times that the base jaws are in motion. Valve switching, hose filling, PLC/CNC reactions, and other potential delays are not included and must be taken into consideration when determining cycle times.

Model No.	F	Clamping Force (N)	Max Pressure (bar)	Jaw Stroke per Jaw (mm)	Max Jaw Length (mm)	Open/Close Time	Oil Consumption per Stroke Cycle (cm³)	Weight
VFB-100-C1-ID	16	16000	120	6	60	1 s	33	4.9 kg
VFB-100-C2-ID	16	20000	60	2	60	1 s	33	4.9 kg
VFB-160-C1-ID	25	44000	120	8	60	1.5 s	105	14.5 kg
VFB-160-C2-ID	25	54000	60	3	60	1.5 s	105	14.5 kg
VFB-200-C1-ID	32	56000	60	10	95	2.3 s	240	24 kg
VFB-250-C1-ID	40	62000	60	15	140	3 s	440	37 kg
VFB-66-C1-ID	10	6800	60	2	60	0.5 s	10	1.5 kg

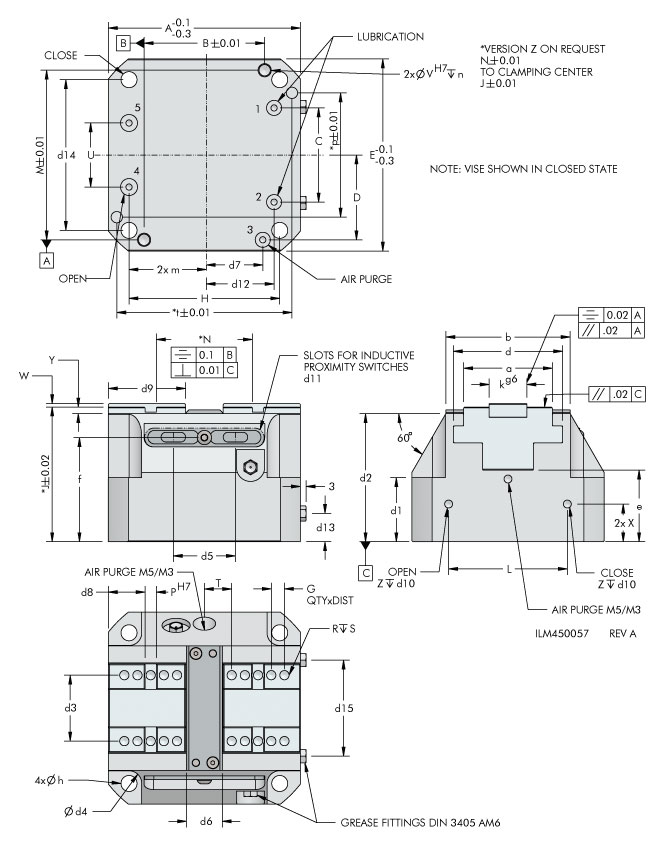

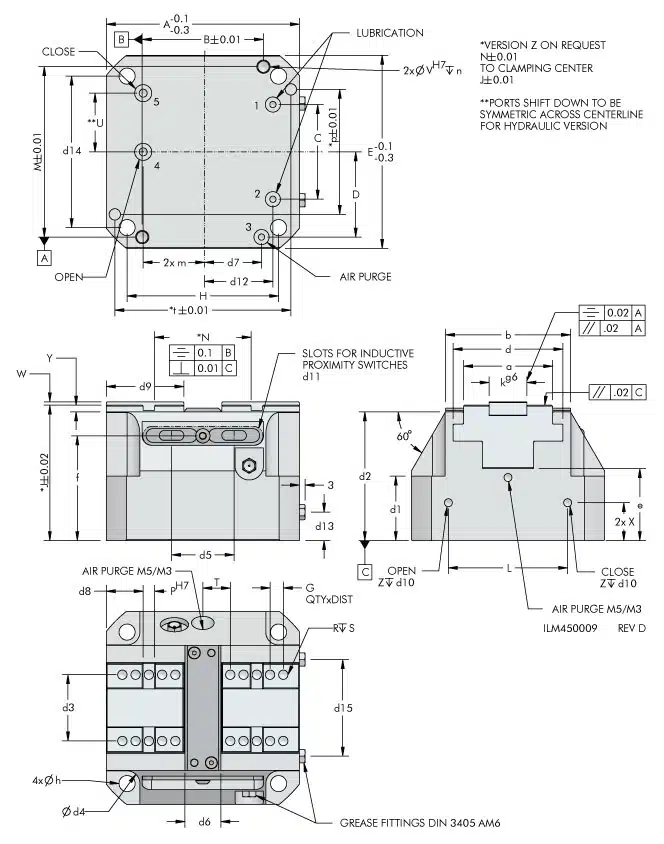

Model No.	A	B	C	D	E	G	H	L	M	N	P	R	S	U	V	Z	X	Y	W	J	K	a	b	d	d1	d2	d3	d4	d5	d6	d7	d9	d10	d11	d12	d13	d14	d15	e	f	T	N	d8	p	t	h	m	n
VFB-100-C1-ID	102	64	51	44.5	102	7x4	80	34	90	51	6	M6	9	34	6	G1/8	20	2.7	1.8	71.5	20	47	66	58	34	68	35	13.5	40	19	31	41	8	M5	37.2	15	80	51	38	55.7	14.5	51	19.5	66	93	8.5	40	12
VFB-100-C2-ID	102	64	51	44.5	102	7x4	80	34	90	52	6	M6	9	34	6	G1/8	20	2.7	1.8	71.5	20	47	66	58	34	68	35	13.5	40	19	31	41	8	M5	37.2	15	80	51	38	55.7	15	52	19	66	93	8.5	40	12
VFB-160-C1-ID	160	110	78	55	160	10x5	140	42	140	89.6	8	M8	13	42	8	G1/8	16	3.2	1.8	88.5	32	78	104	91	25	84.8	60	18	48	24	70	67.5	9	M5	62	49.5	140	78	47.5	71	18.8	89.6	27.2	81	149	11	68	14
VFB-160-C2-ID	160	110	78	55	160	10x5	140	42	140	90	8	M8	13	42	8	G1/8	16	3.2	1.8	88.5	32	78	104	91	25	84.8	60	18	48	24	70	67.5	9	M5	62	49.5	140	78	47.5	71	19	90	27	81	149	11	68	14
VFB-200-C1-ID	200	130	106	65	200	10x7	164	70	186	92	8	M8	13	70	8	G1/8	18	4	2.3	93.5	40	102	140	118	35	89.5	74	19	65	27	87	85.5	9	M8	91.5	54	164	106	51	74	20	92	46	149	186	13	88	14
VFB-250-C1-ID	254	156	124	79	254	12x7	202	96	189	103	10	M10	18	96	10	G1/8	18	4	2.3	103	50	125	170	142	45	98.8	90	19	86	35	109	108.5	9	M8	119	58	189	124	55	81	32.5	103	65.5	182	225	13	115	18
VFB-66-C1-ID	66	42	34	28	66	5x3	54	27	59	26.4	4	M4	6.5	35	4	G1/8	15	2.7	1.8	53	14	30	43	38	26	49.5	24	11	N/A	12	19	26.3	8	N/A	25	16	54	34	30	N/A	10.2	26.4	15.8	20	59	6.5	25	7.5

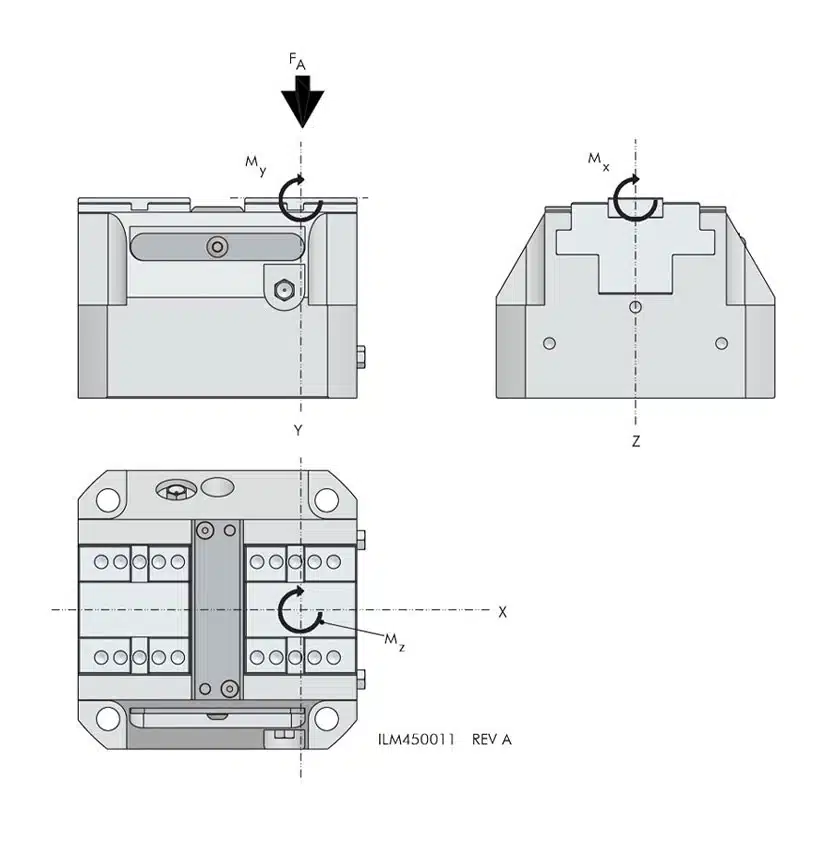

Model No.	FA (N)	My (Nm)	Mz (Nm)	Mx (Nm)
VFB-100-C1-ID	5000	250	250	250
VFB-100-C2-ID	5000	250	250	250
VFB-160-C1-ID	10000	500	500	500
VFB-160-C2-ID	10000	500	500	500
VFB-200-C1-ID	13500	800	800	800
VFB-250-C1-ID	22000	1200	1200	1200
VFB-66-C1-ID	2000	75	75	75

Model No.	Feed Hole 4 & 5 Actuation - A	Feed Hole 4 & 5 Actuation - D	Feed Hole 3 Air Purge - A	Feed Hole 3 Air Purge - D	Feed Hole 1 & 2 Lubrication - A	Feed Hole 1 & 2 Lubrication - D
VFB-100-C1-ID	Ø6 x 1.5	4	Ø5 x 1.5	3.5	Ø5 x 1.5	3.5
VFB-100-C2-ID	Ø6 x 1.5	4	Ø5 x 1.5	3.5	Ø5 x 1.5	3.5
VFB-160-C1-ID	Ø7 x 1.5	5	Ø5 x 1.5	3.5	Ø5 x 1.5	3.5
VFB-160-C2-ID	Ø7 x 1.5	5	Ø5 x 1.5	3.5	Ø5 x 1.5	3.5
VFB-200-C1-ID	Ø7 x 1.5	5	Ø6 x 1.5	4	Ø6 x 1.5	4
VFB-250-C1-ID	Ø7 x 1.5	5	Ø6 x 1.5	4	Ø 6 x 1.5	4
VFB-66-C1-ID	Ø5 x 1.5	3.5	Ø2.5 x 1	2.5	Ø2.5 x 1	2.5

The Benefits of a Hydraulic Machine Vise

Automated, self-centering vises help conserve operator energy and support consistent part quality. The VFB Hydraulic uses engineered fluid power to deliver highly repeatable clamping pressure. The wedge and piston design maintains high jaw repeatability for strict tolerance control, while our hardened steel construction maintains structural integrity under high-pressure vise conditions. Versatile porting provides side or bottom connections, which allow for manifold mounting and integration into crowded machine envelopes.

Projects a Hydraulic Jaw Vise Supports

Heavy-duty environments require robust workholding solutions. We engineered the VFB Hydraulic specifically to stabilize parts in applications that require maximum rigidity:

Heavy material removal: Secure titanium, Inconel and large steel billets that exceed the capacity of a standard hydraulic vise.
Lights-out automation: Integrate with robotic tending systems for automated load and unload cycles.
Material yield optimization: Upgrade from manual vises to establish more consistent operator torque, help maintain tolerances and save material.
Multipart fixturing: Provide simultaneous, uniform clamping across multiple vises plumbed into a single hydraulic circuit to maximize spindle uptime.

Frequently Asked Questions

Explore questions about clamping capacities, actuation speeds and system compatibility to help specify the right vise for your production cell.

VFB Hydraulic vs. VFB Pneumatic: Which do I need?

Choose VFB Hydraulic for maximum holding power and aggressive machining. For faster actuation and moderate force, use VFB Pneumatic.

Do I need a hydraulic power unit, or can I use my machine’s hydraulics?

You can plumb into existing machine hydraulics if the pressure requirements match. For optimized control, we recommend pairing this vise with our Advanced Automation Workholding Pump.

Can VFB Hydraulic replace my Kurt manual vise?

Yes. An upgrade to a hydraulic clamping vise introduces automated actuation, conserves operator energy and delivers highly repeatable clamping pressure across production runs.

What jaw options are available?

We offer serrated base jaws and steel top jaw blanks, which let you custom-machine profiles for specific workpieces.

Can robots load VFB Hydraulic vises?

Yes. The hydraulic actuation integrates into automated cells and robot-tended CNC environments.

Is VFB Hydraulic overkill for my application?

Pneumatic or manual options work well for machining aluminum or lightweight plastics. Hydraulic force is suitable for applications with a high risk of part movement. Shops comparing a hydraulic bench vise with CNC hydraulic workholding options should choose based on material, cut aggressiveness and required repeatability.

Upgrade Your Workholding System With Vektek

Equip your facility with the required holding force for aggressive milling and automated production. We offer a complete portfolio of hydraulic workholding systems and expert support from a U.S. team. Complete our online form to request a VFB Hydraulic quote.
