Hydraulic Workholding Products

High-force machining in aerospace, automotive and heavy equipment fabrication requires workholding systems that can resist extreme cutting forces while maintaining tight manufacturing precision. Hydraulic workholding equipment addresses these challenges by providing the necessary clamping force and rigidity these applications need.

Vektek offers a complete line of integrated hydraulic workholding systems, including power units, distribution valves, clamps, cylinders and accessories engineered to work together to meet your operational requirements.

Industrial Hydraulics for Precision Workholding

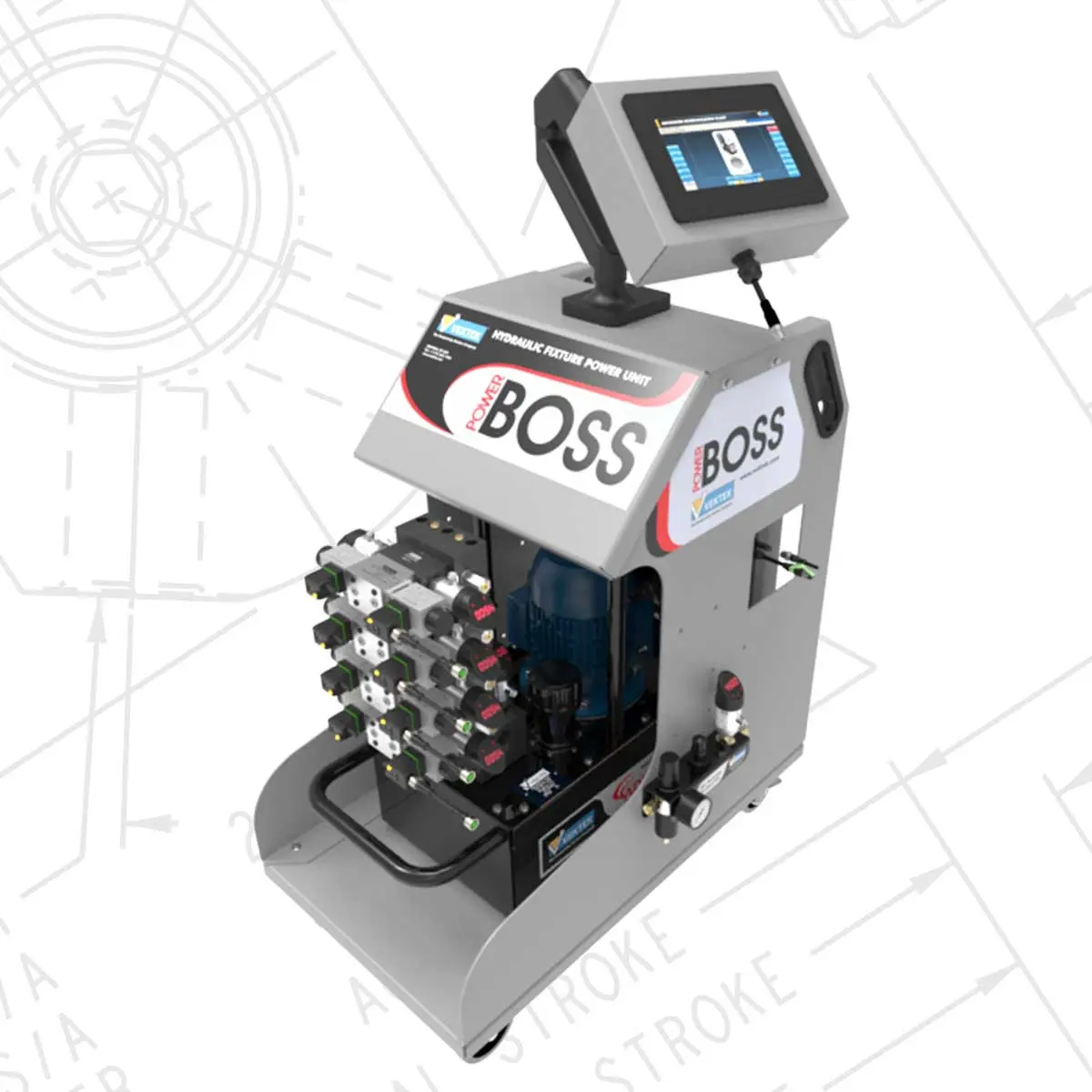

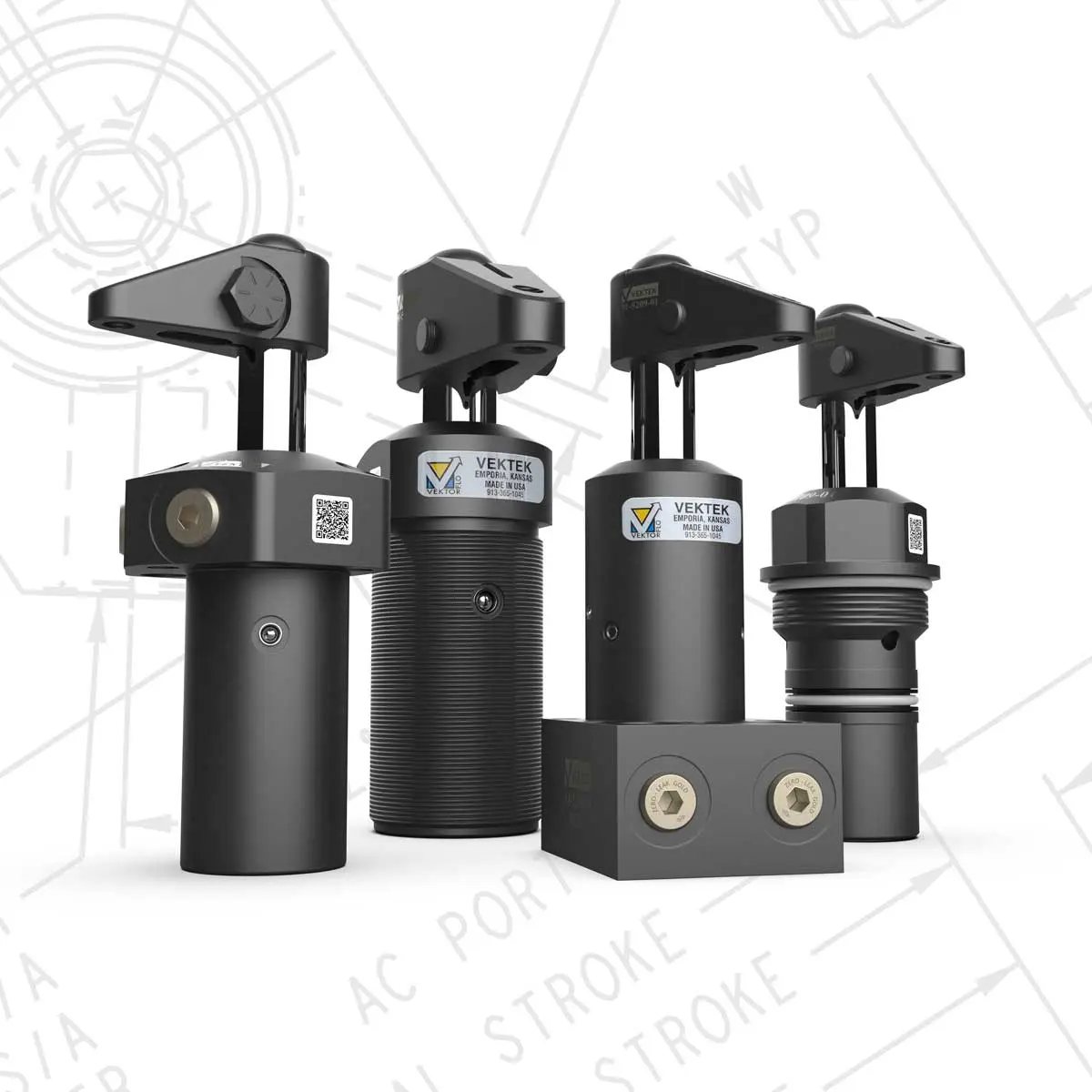

A hydraulic workholding system integrates three essential components to deliver controlled clamping force. Hydraulic power units generate and maintain the pressure required for operation. Distribution valves and manifolds route fluid to specific clamping locations. Hydraulic clamps and cylinders then apply force to secure the workpiece.

Unlike mechanical clamping that relies on manual torque or pneumatic systems limited by air pressure, hydraulic cylinder systems use incompressible fluid to generate significantly higher clamping forces in a compact package. The combination of increased force and rigid hydraulic clamping helps resist cutting loads and maintain part positioning throughout the machining cycle.

Benefits of Hydraulic Power Units, Cylinders and Fixture Clamps

Manufacturers that need maximum holding power rely on hydraulic workholding for operational advantages like:

• High clamping force: Hydraulic systems generate significantly higher clamping forces than pneumatic alternatives in comparable package sizes.

• Rigid workholding: Incompressible hydraulic fluid provides rigid clamping that helps resist deflection during machining while supporting consistent part positioning and surface quality.

• Simultaneous actuation: Multiple hydraulic clamps engage simultaneously from a single power unit, eliminating the need to manually tighten each clamp during setup.

• System flexibility: A single hydraulic unit can power multiple clamps at different positions and orientations within a fixture.

Choosing the Right Hydraulic Workholding Products for Your Needs

Facility managers and production engineers should consider several factors before choosing a solution, including:

• Clamping force: Calculate the forces generated by your machining operation, and select hydraulic clamps and cylinders rated to withstand those loads.

• Power unit size: Determine total fluid volume requirements based on the number of clamps, desired actuation speed and system pressure.

• Hydraulic vs. pneumatic options: Choose hydraulic systems when maximum clamping force and rigidity are critical, particularly for heavy cuts on hard materials or large workpieces.

• Automation: Evaluate whether your application needs integration with automated manufacturing cells, CNC control systems and feedback devices for high-volume production.

• Positioning: Consider whether your application requires hydraulic cylinder stops for precise, repeatable stroke control and part positioning.

Applications for Hydraulic Workholding Systems

Hydraulic workholding systems address the demands of manufacturing operations where high clamping forces and rigid positioning are critical:

• Heavy-duty CNC machining: Aerospace and automotive manufacturers use hydraulic fixture clamps to machine large components from hardened steels and titanium alloys.
• High-volume production cells: Automated milling and drilling operations rely on hydraulic systems that provide consistent clamping force for higher-volume production runs.

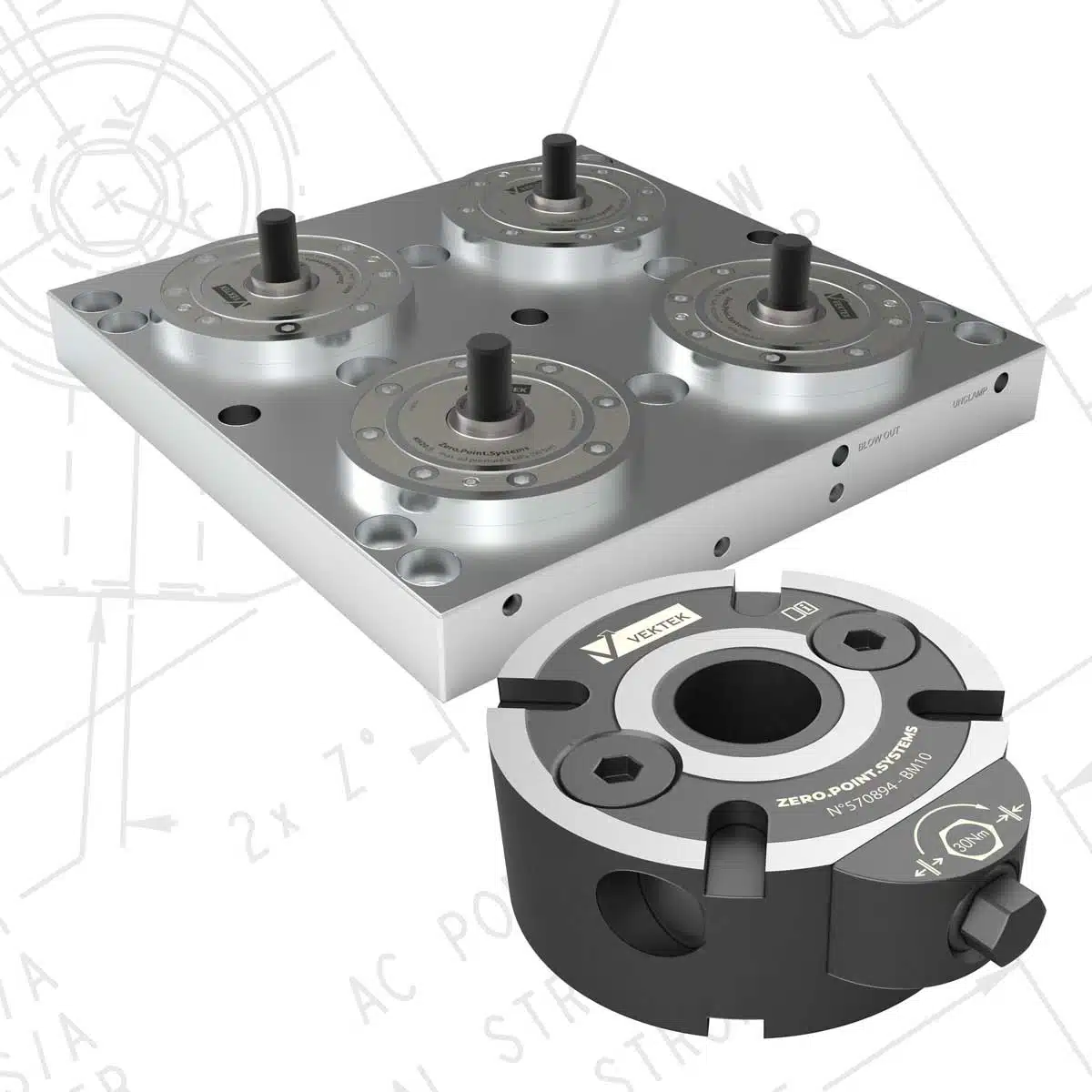

• Complex fixturing applications: Custom fixtures for irregularly shaped workpieces use hydraulic zero-point systems to position and secure components at multiple clamping points.

Frequently Asked Questions

What clamping force do I need for my application?

Clamping force requirements depend on cutting forces, workpiece material and fixture design. Our engineers can help you determine the appropriate specifications for your application.

How do I size a hydraulic power unit?

Power unit sizing depends on total fluid volume, number of clamps and desired actuation speed. We can help you select the right power unit to prevent pressure drops and ensure reliable performance.

What maintenance do hydraulic cylinder systems require?

Hydraulic systems require periodic fluid level checks and leak inspections. Our engineers can help you develop an effective maintenance schedule based on your operational needs.

Design Your Hydraulic Workholding System

Vektek offers a wide range of hydraulic workholding solutions tailored to your manufacturing requirements. Contact our engineering team today for product recommendations or assistance with system design.
