Pull-Stud
Hydraulic

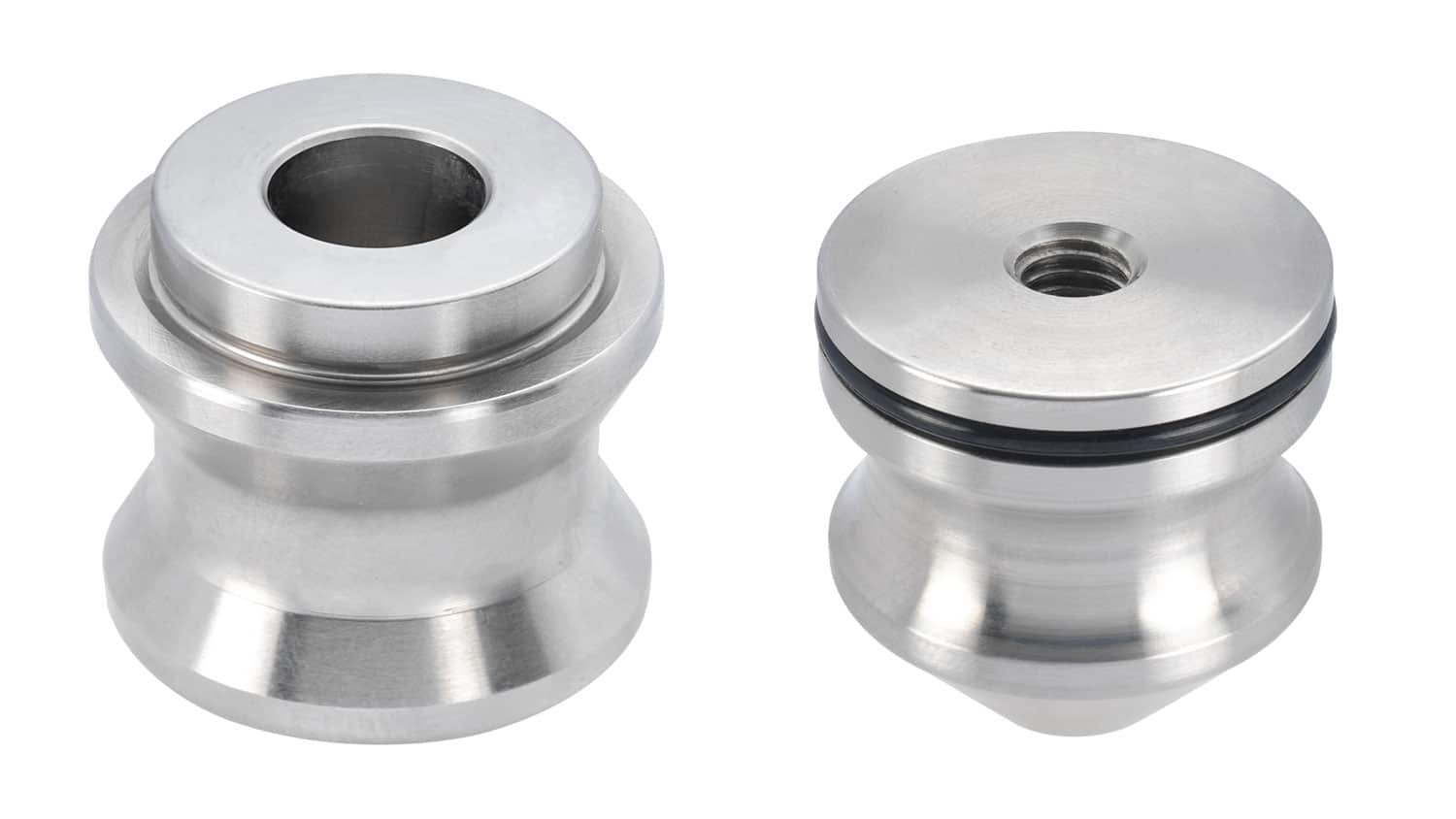

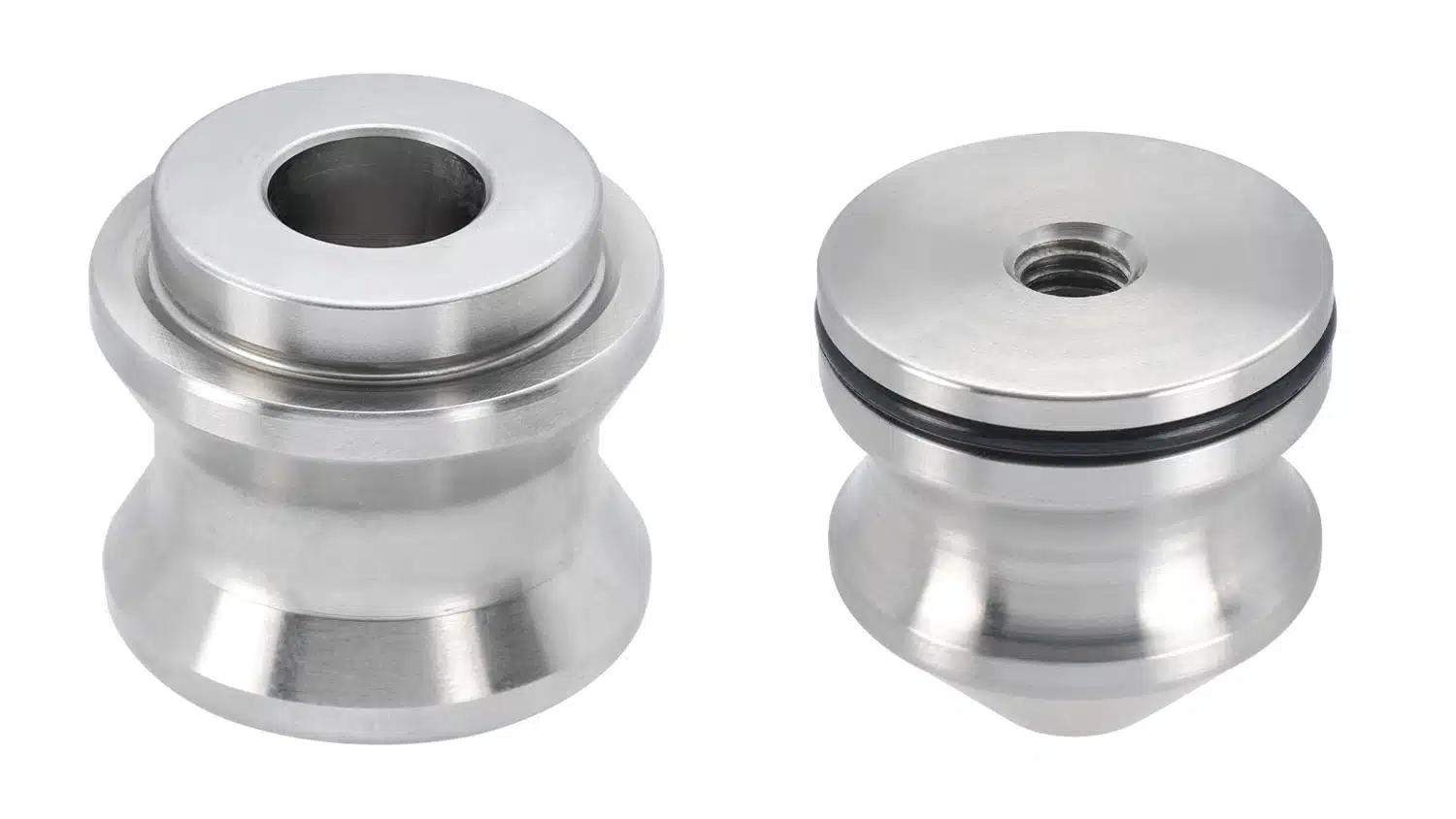

Pull-stud size 10 for M8 engagement screw.
Hardened, for clamping modules size 10.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
Pull-stud size 10 for M10 engagement screw
Hardened, for clamping modules size 10.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
Pull-stud size 20 for M10 and M12 engagement screw
Hardened, for clamping modules size 20
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
Pull-stud size 20 for M16 engagement screw
Hardened, for clamping modules size 20.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
Pull-stud size 40 for M16 engagement screw
Hardened, for clamping modules size 40.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
Pull-stud size 40 for M18 engagement screw
Hardened, for clamping modules size 40.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.

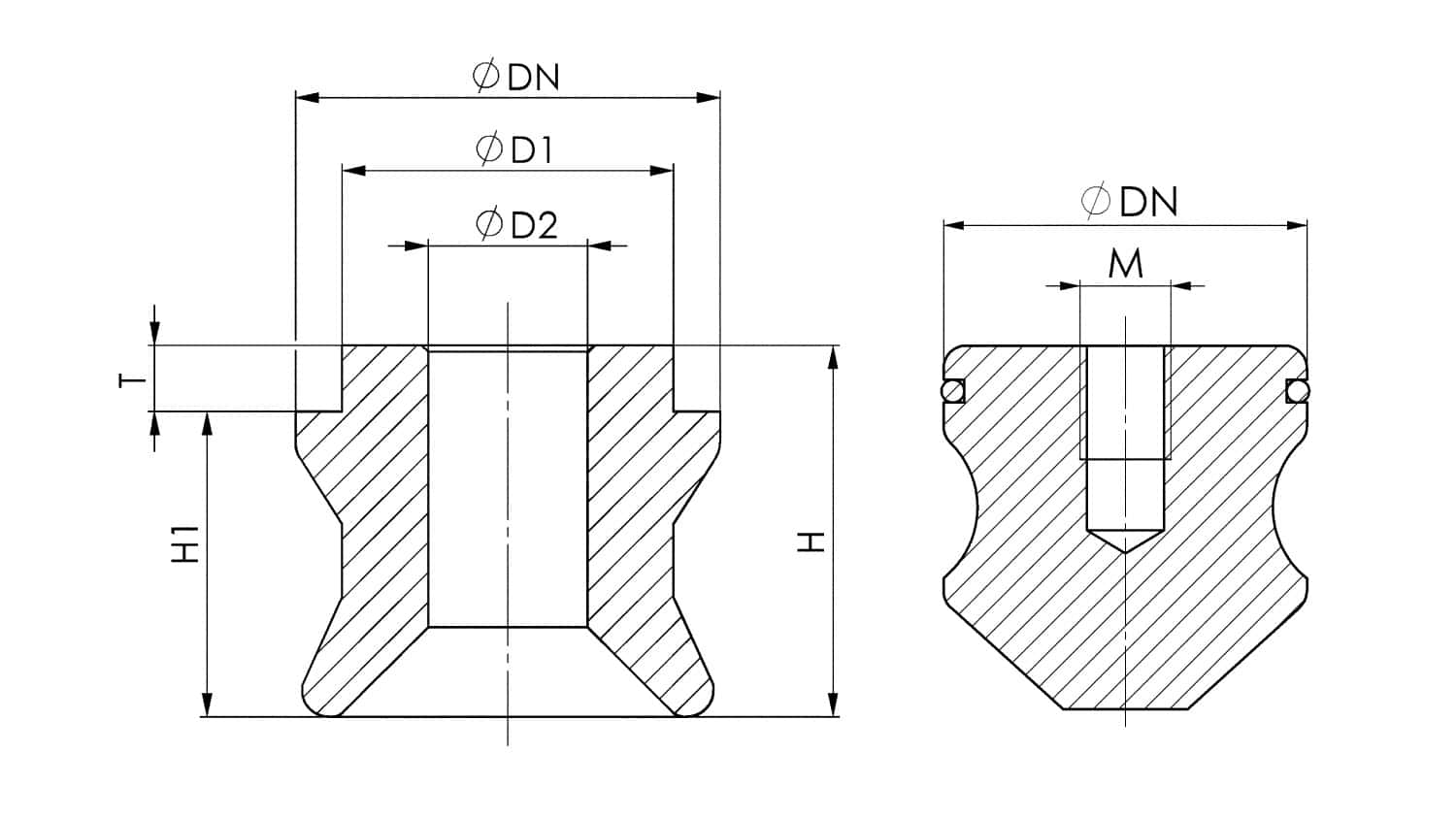

| SIZE | ØD1 [mm] | ØD | S1 [mm] | S2 [mm] | Suitable Pull-Stud Order-no. | Suitable Engagement Screw Order-no. |
| 10 | 15.00 | M8 | 3.5 | 16 | 570370 570371 570372 |
570401 |
| 10 | 15.00 | M10 | 3.5 | 20 | 570375 570377 570376 |
570402 |
| 20 | 25.00 | M10 | 5.5 | 23 | 570384 570383 570381 |
570407 |
| 20 | 25.00 | M12 | 5.5 | 23 | 570384 570383 570381 |
570404 |
| 20 | 25.00 | M16 | 5.5 | 32 | 570384 570383 570381 |
570405 |
| 40 | 25.00 | M16 | 5.5 | 30 | 570388 570389 570387 |
570408 |
| 40 | 30.00 | M18 | 5.5 | 35 | 570391 570394 570396 |
570409 |
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
