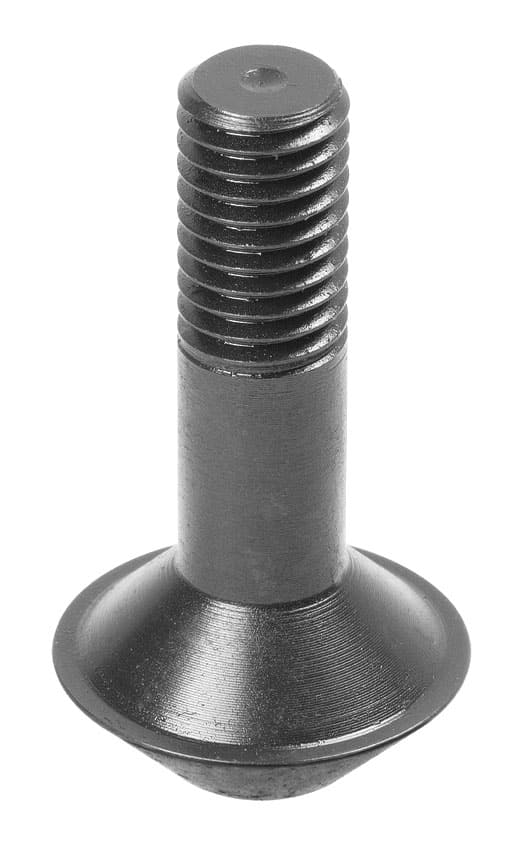

Engagement Screw

Hydraulic

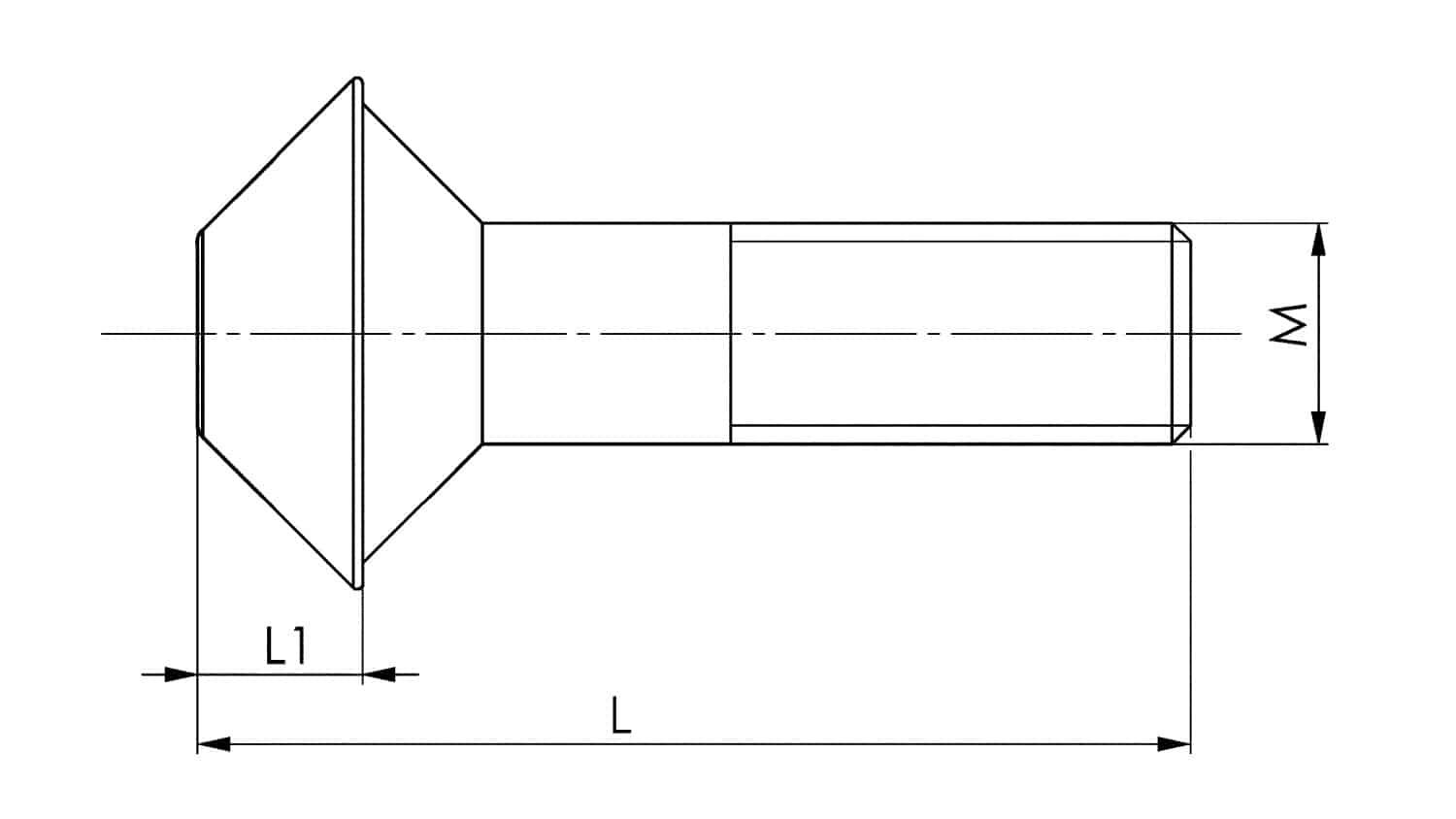

Model No.	Size	Pull-in/locking force up to (kN)	L	L1	M	Hex	Torx	Weight
570401	10	17	37	6.0	M8	6	--	25
570402	10	25	41	6.0	M10	--	T45	32
570404	20	43	54	9.0	M12	8	--	70
570405	20	55	63	9.5	M16	--	T60	125
570407	20	25	54	9.0	M10	8	--	63
570408	40	75	69	10.0	M16	14	--	130
570409	40	105	73	11.0	M18	--	T70	195
