NEW! PQ0 – Single Gripper, 5 kg Payload

Universal Pneumatic EOAT Interface

Catalog Section

Ideal for Material Handling
2 sensor ports – no more long wires for sensors
410 grams – maximize robot payload utilization
5 kg payload – high payload capacity
IP 54 rated – perfect for usage in harsh environments
Air blow-off port cleans oil & metal chips easily

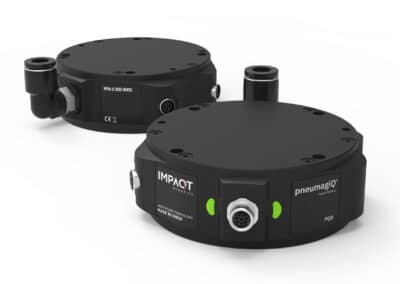

PQ0 Universal Pneumatic EOAT Interface

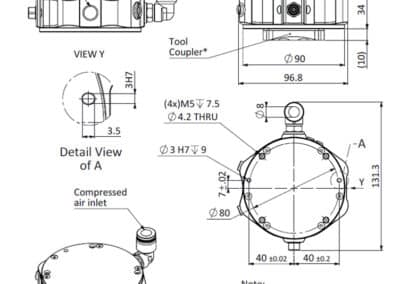

PQ0 Dimensions

Unless otherwise specified dimensions are in millimeters.
*Must be ordered separately.

PQ0 Dimensions

Introducing pneumagiQ PQ0, the lightweight and versatile Pneumatic EOAT Interface! Tired of bulky EOAT setups, complex tubing, and payload limitations? The pneumagiQ PQ0 is designed to solve these challenges with seamless compatibility, a compact footprint, and effortless installation.

Regardless of your choice of pneumatic gripper, the PQ0 makes integration simple and efficient, helping you deploy robots faster, streamline air connections, and enhance efficiency. A truly Plug & Play solution for pneumatic automation!

Model No.	Mountable pneumatic EOAT	Angle between EOAT	Range Extension	Air blow-off ports	Sensor connectors	Response Time	Operating medium	Weight (Kg)	Max Payload per Tool Mounting Face	Overall payload	Airflow rate for EOAT	Airflow rate at Auxiliary port (Air blow-off)	Max. Operating Pressure	Universal robots	Other robots / controllers	I/O Connector	Air Inlet	Sensor port	Air Blow-off Port Type	Robot Mounting	Tool Mounting	Operational Voltage	Nominal operational current	Ambient Temperature Range	Noise Level	Ingress protection
61020012	1	0°	-	1	2	<30 ms (Modbus RTU)	Compressed Air	380g / 0.8lbs	5 kg / 11 lbs	5 kg / 11 lbs	85 slpm / 3 scfm	230 slpm / 8.1 scfm	N/A	URCap	Modbus RTU (RS-485)	M8 8 pin female connector	Ø8 mm tube quick connector	m8 3pin female connector	G 1/4 female thread	pneumagiQ Robot Coupler	pneumagiQ Tool Coupler	24V DC	474 mA	+5°C to 50°C / 41°F to 122°F	<50 dB	IP54
