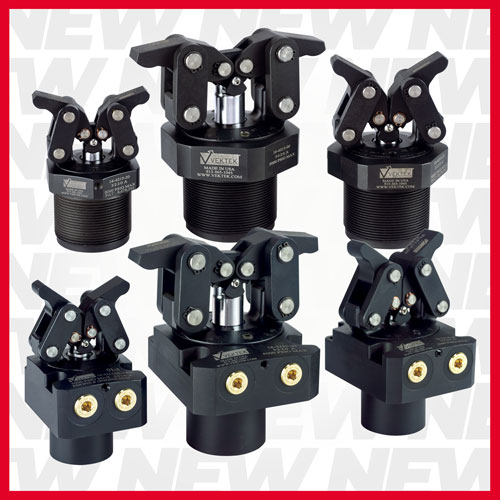

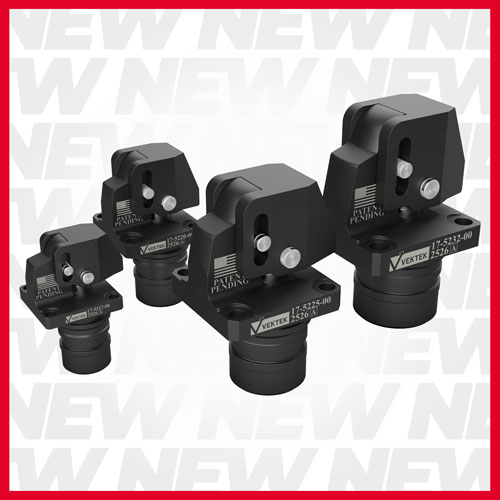

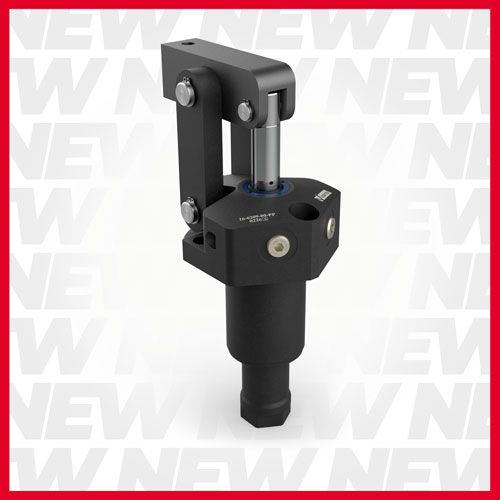

World’s Only! Twin Lever Link Clamps

Twin Lever Link Clamps are mechanical clamping devices that use a dual–lever linkage system to generate high clamping force with minimal input motion, providing precise, repeatable clamping in machining, welding, fabrication, assembly, and automated production environments.

• High clamping force with minimal hydraulic input.
• Controlled arc motion for precise part engagement.
• Load–equalizing mechanism for uniform clamping when surfaces vary up to 0.060″.
• 360° rotary lug positioning for ideal plumbing and orientation.
• Two mounting styles: top flange or cartridge.
• Compact footprint for crowded fixtures.

Ideal for:  CNC machining fixtures and milling, drilling, and tapping.

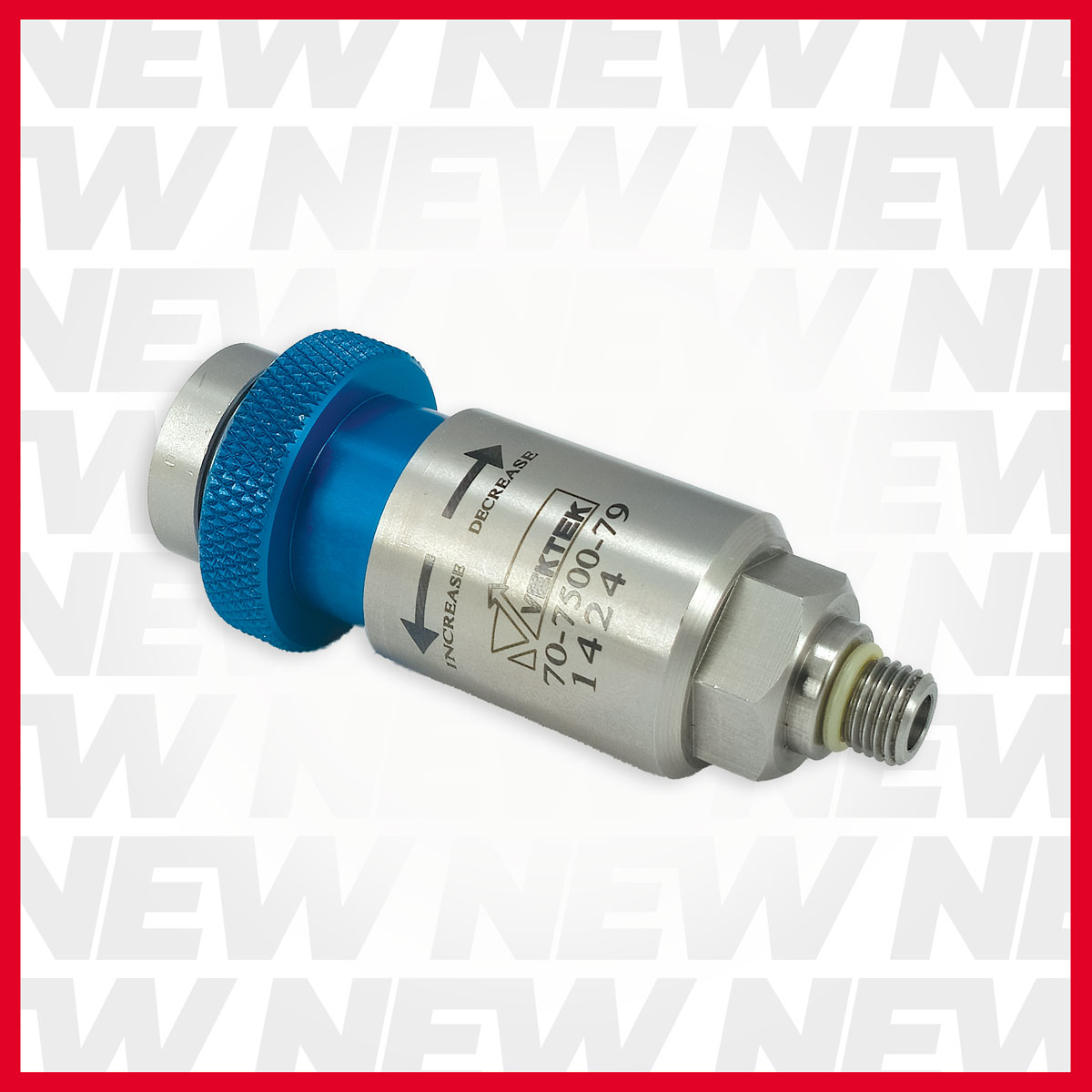

NEW! Pressure Confirmation Cylinder

The Pressure Confirmation Cylinder provides a simple, wire–free method for detecting hydraulic circuit pressure on decoupled pallets using the machine’s existing CNC touch probe. It converts hydraulic pressure into a measurable piston height so the machine can confirm pressure without electrical integration.

• Detects hydraulic pressure without wires, sensors, or electronics.
• Uses the machine’s existing CNC probe — no additional tooling.
• Ideal for decoupled pallets, rotating pallets, and multi–circuit systems.
• Installs directly into any SAE 4 port.
• Compact enough for small pallets.
• Lower cost than wireless pressure–confirmation alternative.

Ideal for:  Decoupled hydraulic fixtures, pallet pools, and HMC/VMC probing routines.

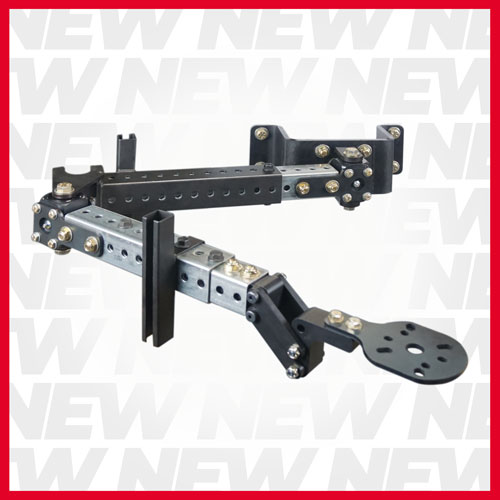

Rotary Union Arm

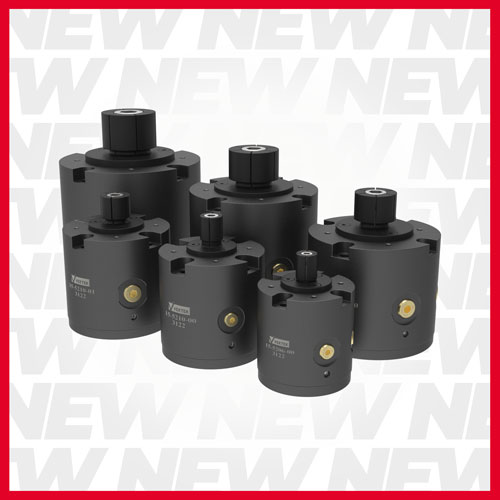

NEW! ID Expansion Clamps

• Ideal for clamping in blind holes or bore holes.
• Save hours and fatigue by not manual clamping.
• Consistent clamping force without the use of a torque wrench.
• Range of expansion 0.010 to 0.015 depending upon size.
• Mandrel can be modified to fit application***.
• All cylinder pistons are chrome plated, hardened alloy steel.

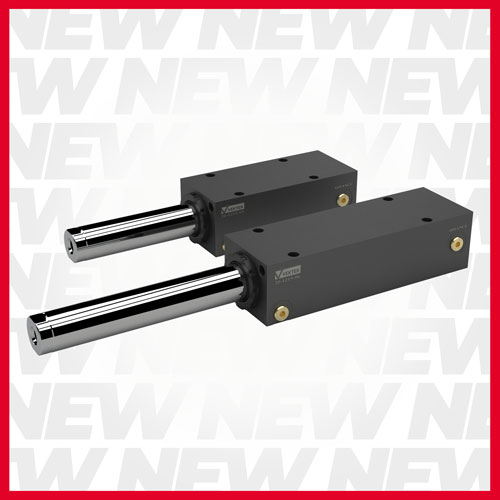

Long Stroke Block Cylinders

Single and Double Acting

• No special mounting hardware required, just bolt down these easy to use devices.
• Dual position mounting, either parallel or perpendicular to piston travel, on every model.
• A force ranging from negligible to maximum cylinder capacity, simply adjust the input pressure.
• Advance porting, for easy plumbing, is provided on both bottom and side of most models.
• NEW! Double Acting 4″ and 6″ stroke now available (20-1215-05 and 20-1215-06)
• See Ultrasonic variant.

Threaded piston ends allow the use of custom end attachments (Double Acting recommended for attachments or mechanisms). Springs are designed to return the cylinder and contact points, S/A not intended to pull mechanisms.

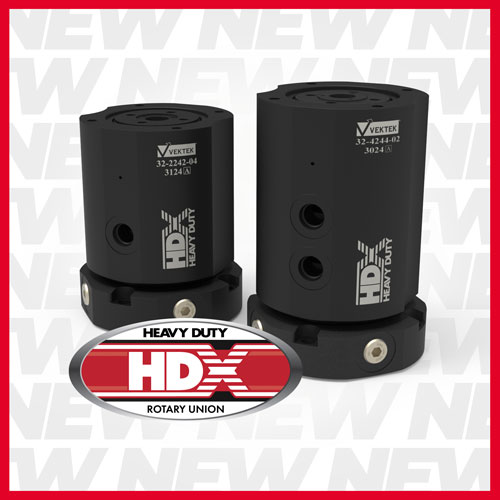

NEW! HDX Heavy Duty Rotary Union

• Engineered with tapered roller bearings for increased durability.
• Enhanced efficiency with reduced passage restrictions.
• Increased operational speeds.
• Simplified manifold mounting.
• Interchangeable mounting between all sizes.
• Used units are fully factory refurbish-able.

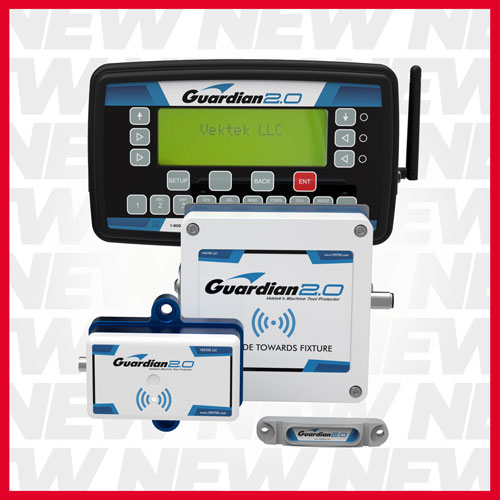

NEW! Guardian 2.0

• 100 Foot receiver range.
• Each transmitter can monitor either 1, 2 or 4 pressure switches.
• Continuous monitoring throughout the machining cycle.
• Simple integration into your automation controller using industry standard connectors.
• Easy to install and powered from Machine Tool (CNC machine) 24 VDC power supply.
• No more tool crashes. Guard your spindle from fixture pressure loss with wireless pressure monitoring using Vektek pressure switches and Vektek Guardian system.
• The transmitter is powered by common lithium CR2 batteries and has a life of up to 5 years.
• Inputs are opto-isolated to protect electrical circuits and allow for syncing and sourcing I/O.
• Extended transmitting range designed for large machines, linear pallet pool systems, and even small applications such as vertical machining centers.
• Housing with aluminum base for excellent durability.

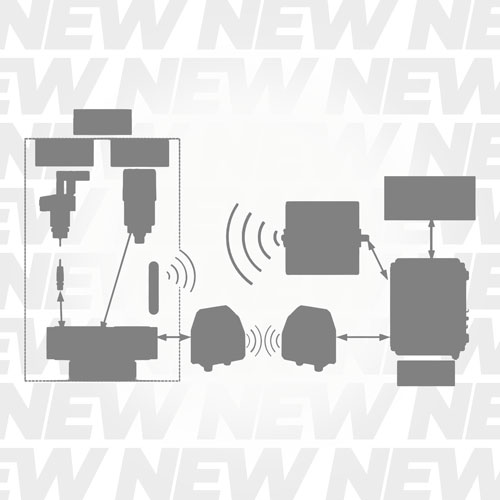

• Pallet Identification system that simplifies integration and can be used for pallet management.
• In-cycle input to tell the Guardian when to begin the monitoring process, such as when the pallet is in the machining area.
• Status monitoring outputs that include pressure, battery level, connection status, and M-code acknowledgement via internal isolated relay contacts.
• Standard USB-C port for firmware updates in the field.

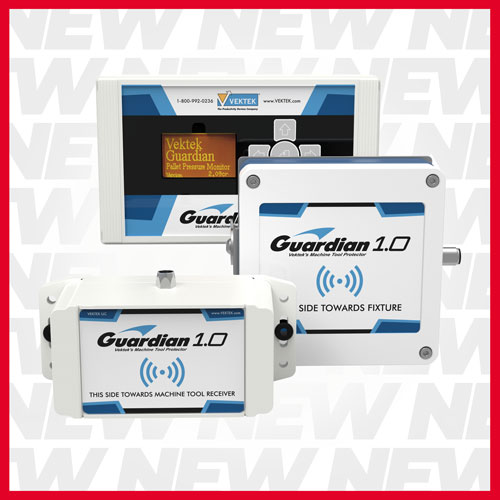

NEW! Guardian 1.0

• “Focused Field” Fixture Proximity Transmitters require no batteries, EVER! Nothing to replace.
• Wires into your supplied 10-36 VDC supply.
• Samples and confirms pressure before, after and even during machining when the fixture can be in a known location and is not in motion. Can be used outside the machine before or after machining to confirm pressure is present. Can be used to monitor inside the machine enclosure when the fixture is at a predetermined location and stationary while pressure confirmation is checked.
• The Simple Convenience package includes everything you need to monitor 1 circuit on 2 fixtures before they enter the machine. Installs with an M code confirmation, into a door or enclosure switch or other input of choice.
• Simple systems can be configured to monitor 1, 2 or 4 circuits for pressure confirmation by selecting from the Configuration Kits.
• Will not affect other plant wireless systems.
• Fully Sealed Fixture Transmitters.

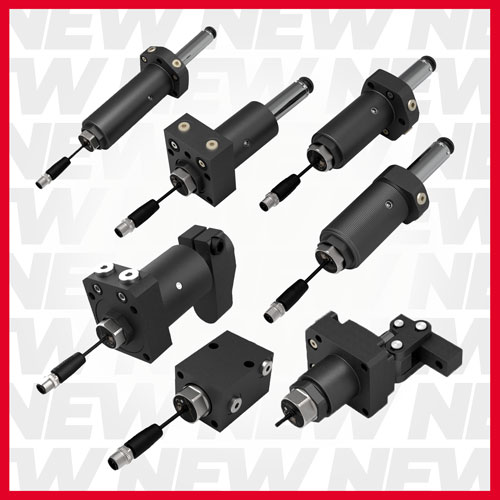

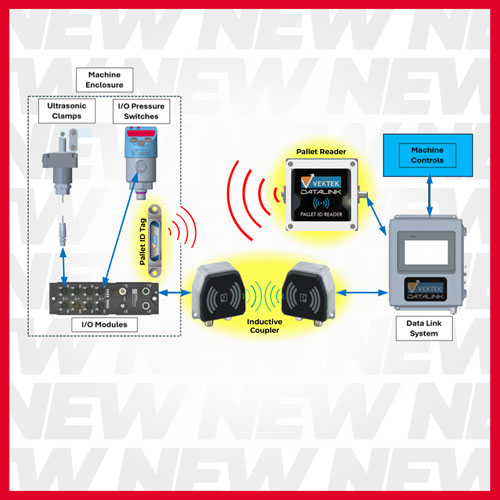

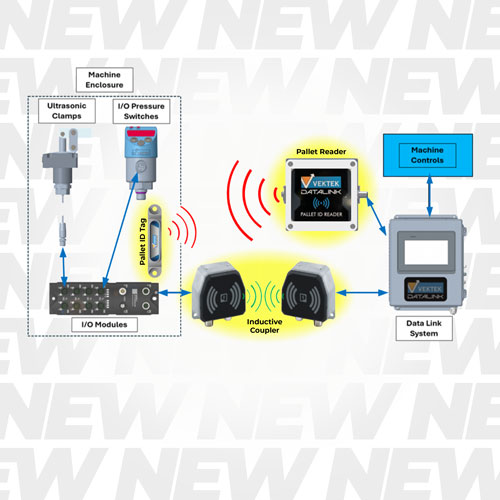

NEW! Ultrasonic Position Sensing Clamps

Provides accurate and repeatable live clamp position measurements.

• Sensing available for TuffCam Swing Clamps, VersaCam Swing Clamps,TuffLink Link Clamps, and Block Body Cylinders.
• Repeat accuracy of +/-0.002″.
• Allowable maximum pressure of 5000 psi.
• Accuracy unaffected by heat up to 185° F.
• Communication through IO-Link, discrete IO, or analog.
• All components are rated to at least IP67.
• All-in-one Vektek ultrasonic position sensing package available for easy integration.

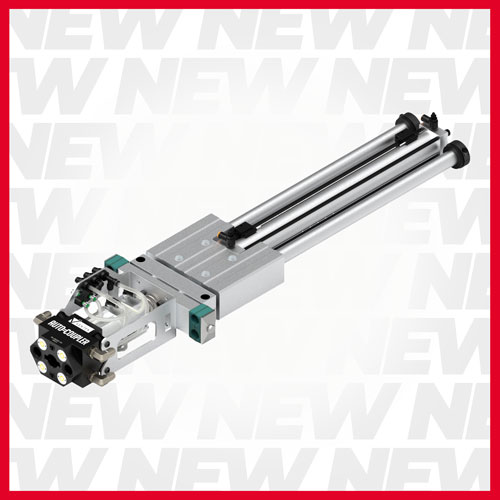

NEW! Auto-coupler with 16 Inch Slide

• The Auto-coupler with slide allows for easy and fast installation. The included pneumatic slide features an easy to control 6 Inch (or 16 Inch) stroke. This movement allows for quick extension and retraction of the Auto-coupler when machine door is opened, allowing for repeatable expedite and precise Auto-coupler coupling.
• Includes two proximity switches to monitor slide extension.
• Can be used in conjunction with air valve kits P7-1012-12 to P7-1012-15 for more precise and accurate control of slide extension.
• Allows for easy base mounting to most flat surfaces.
• Slide mounts to rear of Auto-coupler allowing Auto-coupler to move freely to self align with pallet receiver.
• Pneumatic elbows have integrated flow control valves allowing for precise setting of slide extension and retraction speeds.

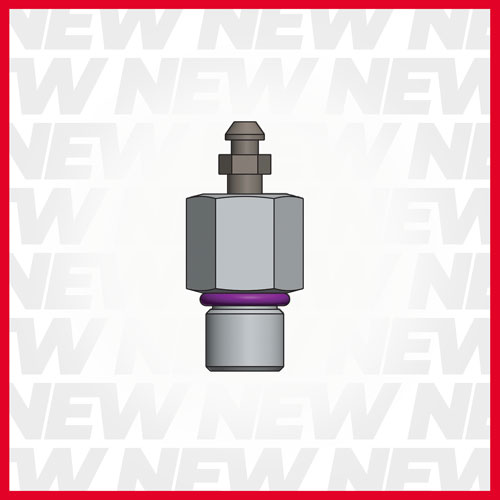

NEW! Air Bleeder Valve

• The Vektek air bleeder valve is the perfect device for removing air from your fixture.
• In the port compatible! Installs directly into compatible device port, requires oil feed through manifold mount ports.
• Can be installed anywhere on your fixture using a simple run-T fitting.
• Easily bleed hydraulic circuits without extruding or damaging seals on fittings.
• Hydraulic circuits contaminated with air can lead to malfunctions and take up to 30% longer to clamp!
• Engineered for longevity to prevent blowout, for a worry-free experience.
• Available with or without hose for your convenience!

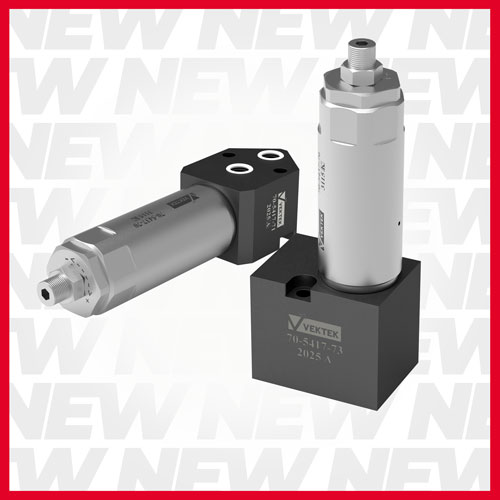

NEW! Compact Block Manifold Mount Pressure Reducing Valve

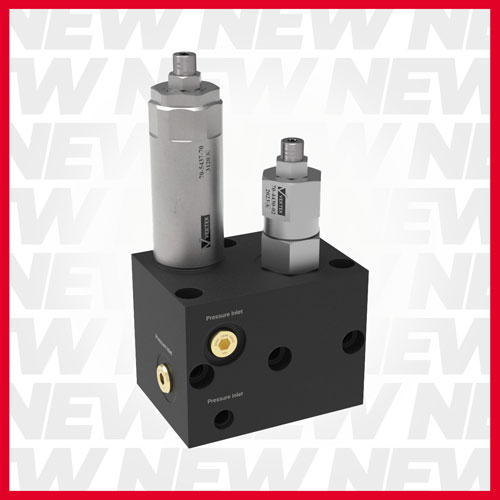

NEW! Low-High Valve

• Clamp with lower pressure to position parts then clamp with high pressure
  once sequence pressure has been met on the rest of the circuit.
• Common inlet port feeds both sequence and reducing valves in parallel.
• 5 (SAE 2) manifold ports: 3x Inlet and 2x Outlet
• 4 (SAE 4) ports: 2 x Inlet, 2x Outlet.
• Use with single or double acting devices.
• Block includes standard Sequence and PRV cartridges.
• Can be sandwiched with a PRV/Sequence Combo block.
• Enough space is provided on the block to accommodate a Gauge for setup
  or troubleshooting.
• Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (minimum)

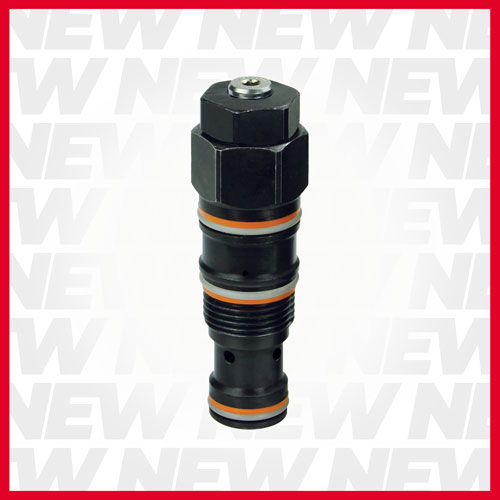

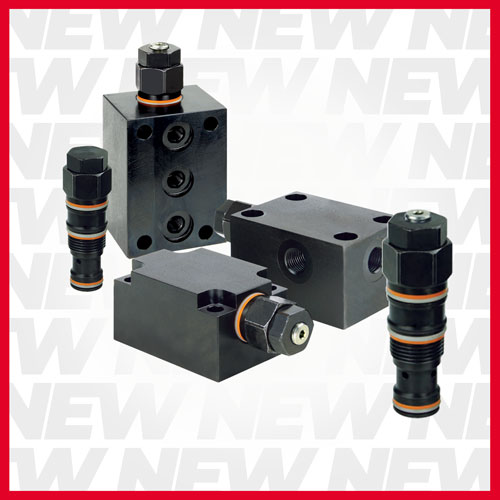

NEW! Manual Operated Check Valves

• Sealed pilot piston eliminates cross circuit leakage.
• 5:1 Ratio of Pilot to Check pressure for release.
• Flows up to 1.5 gal/min at 5,000 psi maximum pressure.
• See Cartridge tab for cartridge details.

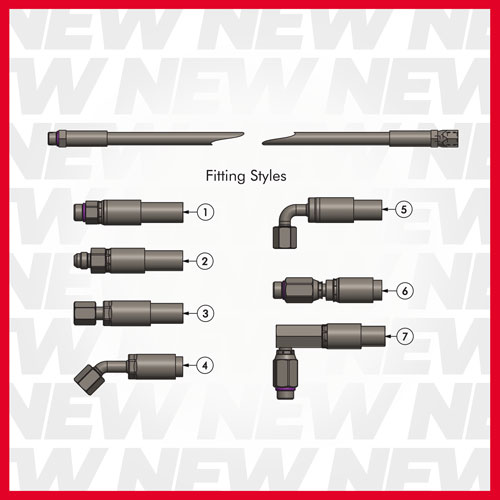

NEW! Custom Hoses

Options 1/8th and 1/2 Inch.

• All VektorFlo® hoses are intended to operate up to 5,000 psi working pressure.
• End fittings have the largest possible orifice to reduce restrictions and allow devices to work better.
• Large hoses are typically used to feed entire fixtures, medium size hoses are for feeding small fixtures or single devices.
• Small hoses are to be used to feed single devices ONLY and are to be connected directly back to a manifold unless used on double acting clamps.

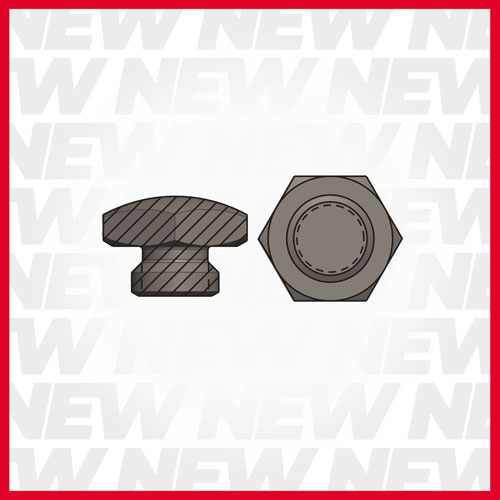

NEW! Spherical Work Support Contact Bolt

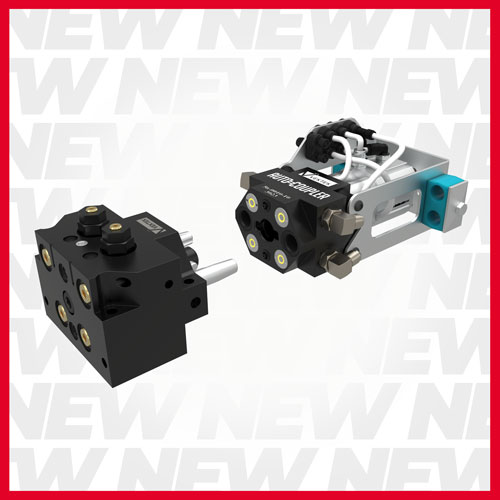

NEW! Auto-coupler

• For decoupled systems where automated coupling is required.
• The Pallet Receiver, (similar to Vektek’s automatic shutoff pallet decouplers), is a self-contained package including two separate clamp/unclamp circuits, hydraulic connections, pilot operated check valves, internal filters, pressure relief valves, and SAE 6/manifold ports conveniently located on the back and bottom.
• Integral mechanical lock connects and holds opposing hydraulic forces without the need of a large cylinder.
• Mechanical lock is actuated with pneumatic cylinder (90 psi min.)
• Cartridge style pilot operated check valves accessible for easy servicing.
• Two independent air pass thru circuits with 1/8 NPT/manifold ports on the back and bottom of Pallet Receiver.
• Integrated air blow off to reduce contamination.
• Two proximity switches used for integration and control of Auto-coupler included.
• Pneumatic slide optional.
• Air valve kit available.
