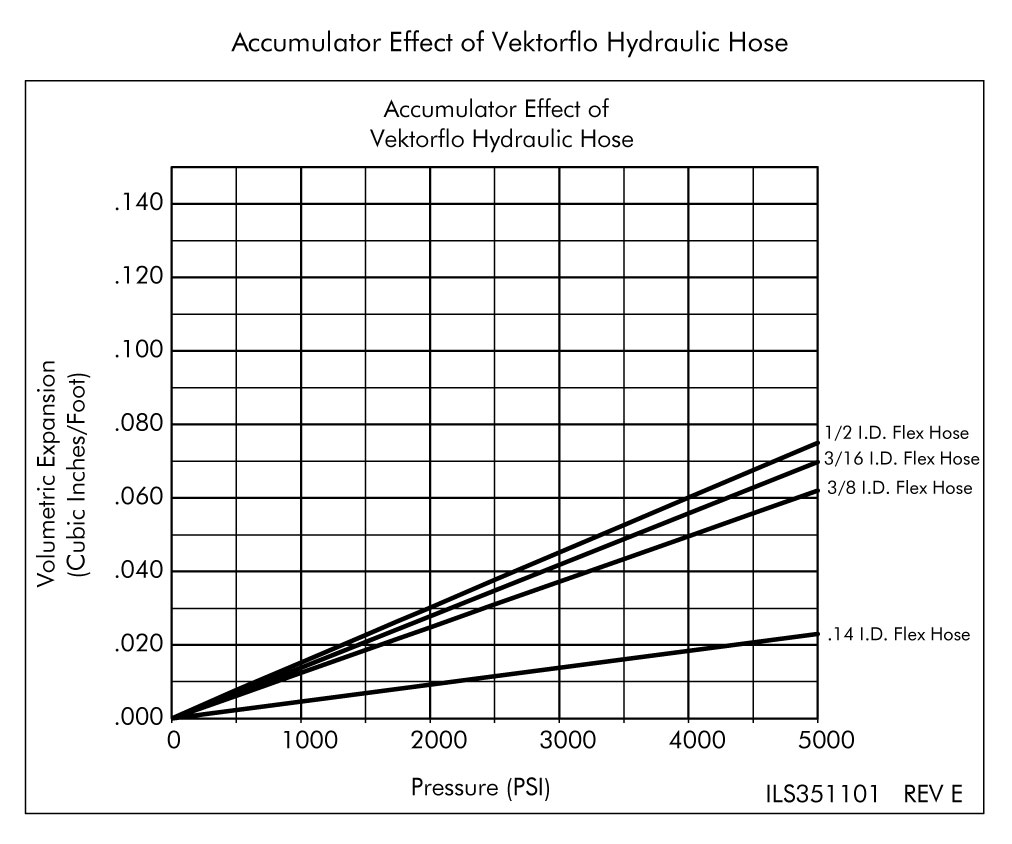

- All VektorFlo® hoses are intended to operate up to 5,000 psi working pressure.
- End fittings have the largest possible orifice to reduce restrictions and allow devices to work better.
- Large hoses are typically used to feed entire fixtures, medium size hoses are for feeding small fixtures or single devices.
- Small hoses are to be used to feed single devices ONLY and are to be connected directly back to a manifold unless used on double acting clamps.
NOTE: Use of standard rubber hoses and end fittings can hamper the action of many devices due to excessive end fitting restrictions. If you choose to purchase hoses from another supplier, be sure that hose diameters and end fittings are not causing excessive restrictions.

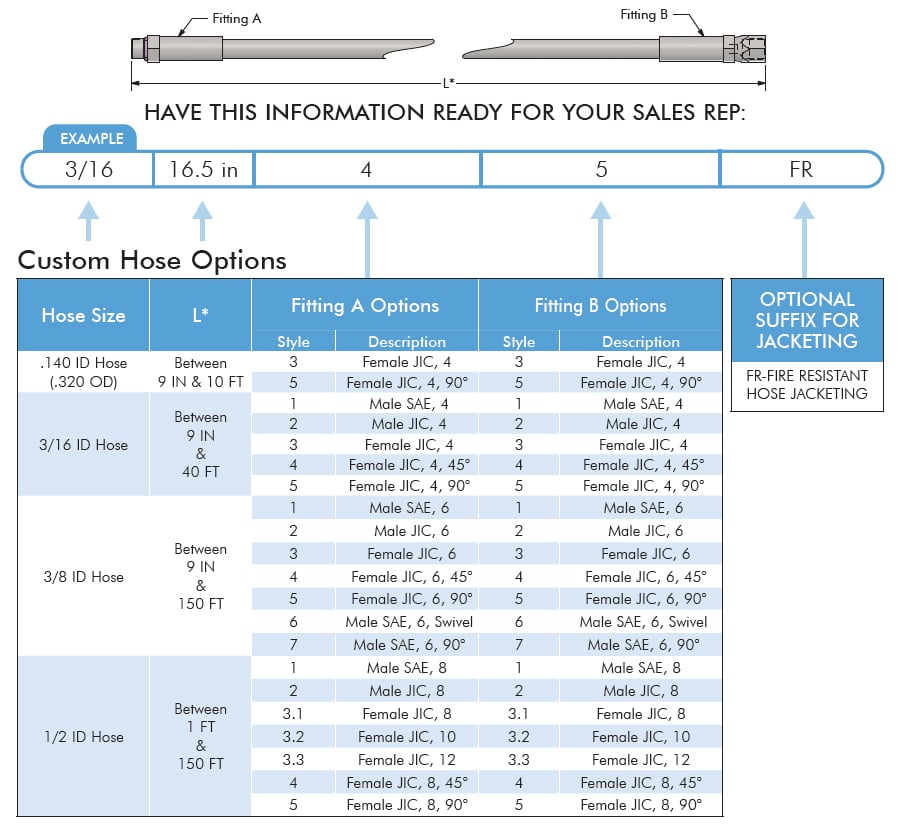

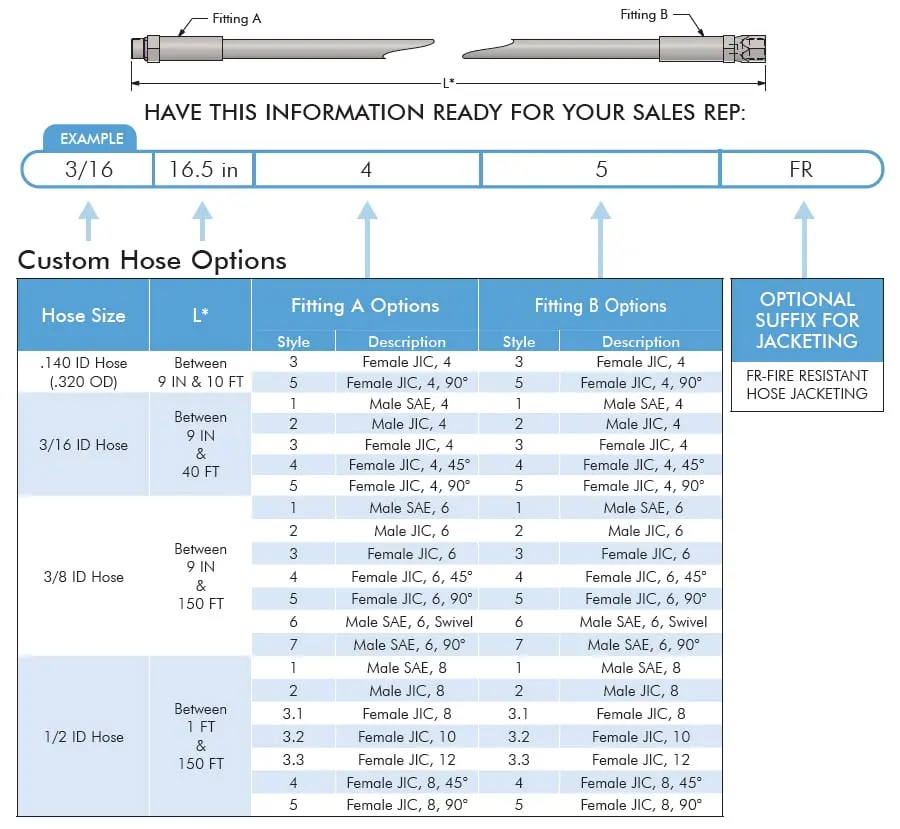

- We can make hoses in 1/8 foot length increments therefore length must be in 1.5″ increments based off of nearest foot.
Example: we could make the following hoses: 144″(12′), 145.5 (12-1/8′), 147″(12-1/4′), etc. but not lengths
that do not divide evenly by 1.5″.

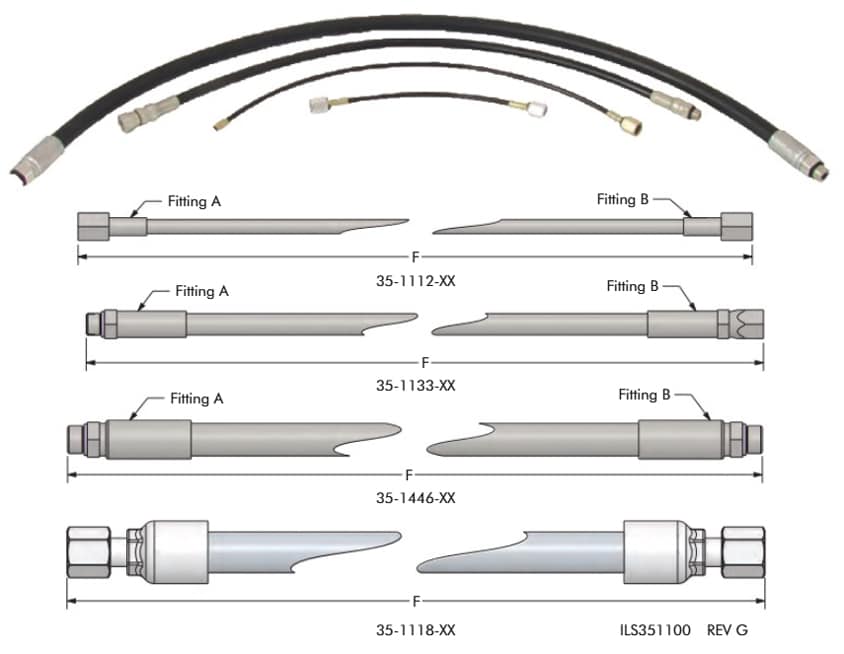

| Model No. | Minimum Bend Radius (in.) | Hose I.D. | Hose O.D. | Fitting A | Fitting B | F |
|---|---|---|---|---|---|---|
| 35-1112-08 | 0.79 | 0.14 | 0.29 | 7/16 - 20 Female JIC 37° Swivel | 7/16 - 20 Female JIC 37° Swivel | 8 in. |
| 35-1112-12 | 0.79 | 0.14 | 0.29 | 7/16 - 20 Female JIC 37° Swivel | 7/16 - 20 Female JIC 37° Swivel | 12 in. |
| 35-1112-18 | 0.79 | 0.14 | 0.29 | 7/16 - 20 Female JIC 37° Swivel | 7/16 - 20 Female JIC 37° Swivel | 18 in. |
| 35-1112-24 | 0.79 | 0.14 | 0.29 | 7/16 - 20 Female JIC 37° Swivel | 7/16 - 20 Female JIC 37° Swivel | 24 in. |
| 35-1112-30 | 0.79 | 0.14 | 0.29 | 7/16 - 20 Female JIC 37° Swivel | 7/16 - 20 Female JIC 37° Swivel | 30 in. |
| 35-1112-42 | 0.79 | 0.14 | 0.29 | 7/16 - 20 Female JIC 37° Swivel | 7/16 - 20 Female JIC 37° Swivel | 42 in. |
| 35-1118-05 | 3.50 | 0.50 | 0.80 | 3/4 - 16 Female JIC 37° Swivel | 3/4 - 16 Female JIC 37° Swivel | 60 in. |
| 35-1118-20 | 3.50 | 0.50 | 0.80 | 3/4 - 16 Female JIC 37° Swivel | 3/4 - 16 Female JIC 37° Swivel | 240 in. |
| 35-1133-02 | 1.50 | 0.19 | 0.43 | 7/16 - 20 Male Straight Thread SAE 4 O-ring Boss | 7/16 - 20 Female JIC 37° Swivel | 24 in. |
| 35-1133-03 | 1.50 | 0.19 | 0.43 | 7/16 - 20 Male Straight Thread SAE 4 O-ring Boss | 7/16 - 20 Female JIC 37° Swivel | 36 in. |
| 35-1133-05 | 1.50 | 0.19 | 0.43 | 7/16 - 20 Male Straight Thread SAE 4 O-ring Boss | 7/16 - 20 Female JIC 37° Swivel | 60 in. |
| 35-1446-03 | 2.50 | 0.38 | 0.67 | 9/16 - 18 Male Straight Thread SAE 6 O-ring Boss | 9/16 - 18 Male Straight Thread SAE 6 O-ring Boss | 36 in. |
| 35-1446-05 | 2.50 | 0.38 | 0.67 | 9/16 - 18 Male Straight Thread SAE 6 O-ring Boss | 9/16 - 18 Male Straight Thread SAE 6 O-ring Boss | 60 in. |
| 35-1446-10 | 2.50 | 0.38 | 0.67 | 9/16 - 18 Male Straight Thread SAE 6 O-ring Boss | 9/16 - 18 Male Straight Thread SAE 6 O-ring Boss | 120 in. |

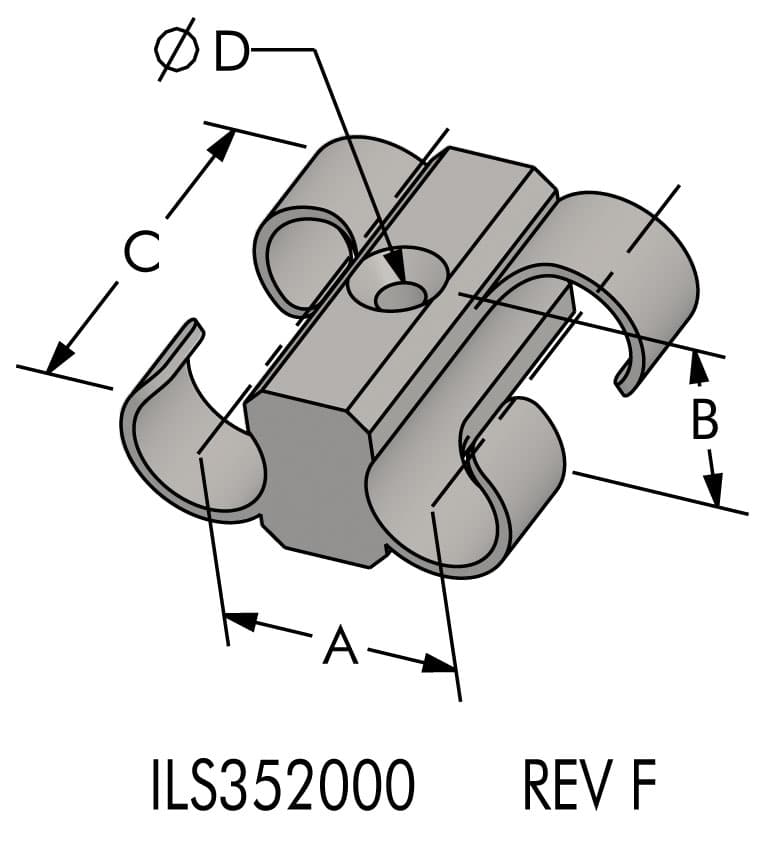

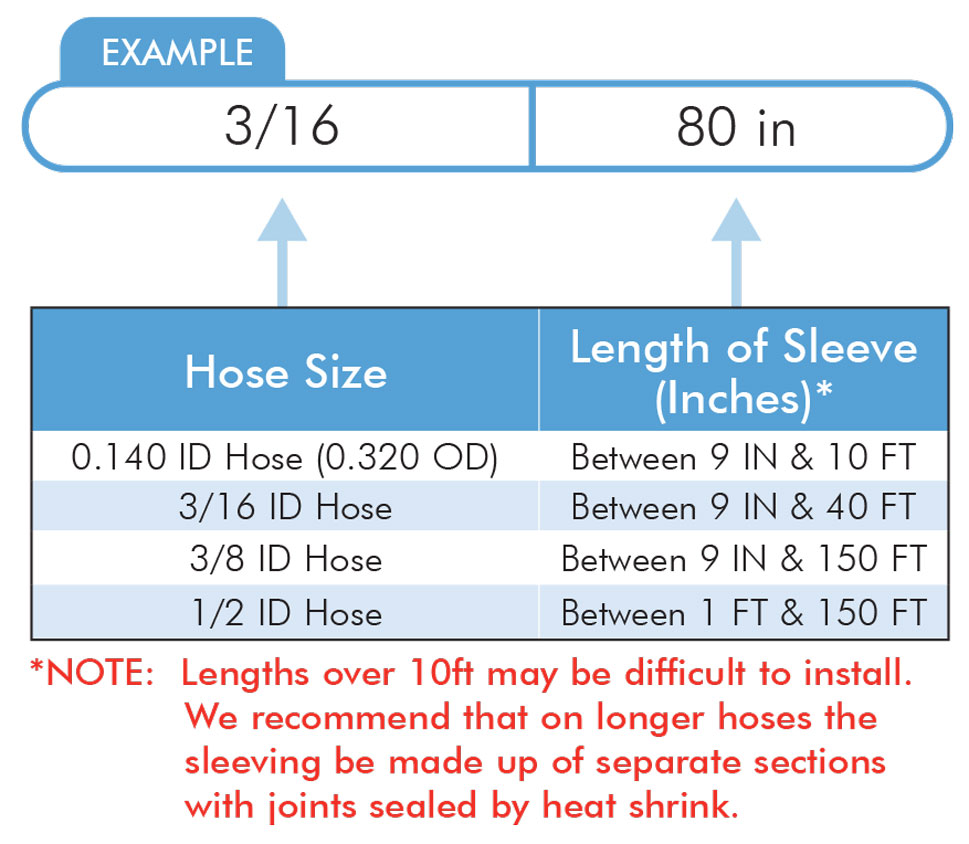

| Model No. | Hose O.D. | A | B | C | D |
|---|---|---|---|---|---|
| 35-2001-00 | 0.29 | 0.48 | 0.36 | 0.80 | 0.13 |
| 35-2003-00 | 0.43 | 0.74 | 0.57 | 1.10 | 0.16 |
| 35-2006-00 | 0.67 | 1.04 | 0.80 | 1.61 | 0.22 |
