Pneumatic Tubing
EOAT Tubing

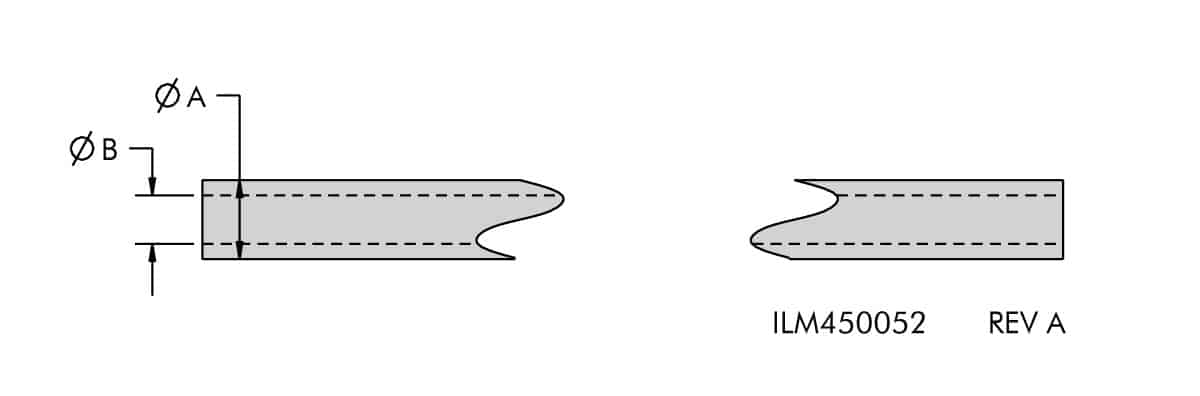

Pneumatic Straight Tubing
- Order in one foot increments.
Pneumatic Straight Tubing
- Order in one foot increments.
NOTE: Working pressures are the same as straight tubing.
| Model No. | Hose I.D. | Hose O.D. | Material Grade | Max pressure at 75°F | Max pressure at 100°F | Max pressure at 125°F | Max pressure at 150°F | Minimum Bend Radius | Color |
|---|---|---|---|---|---|---|---|---|---|
| P3-0015-01 | 0.180 in | 0.250 in | Nylon 11 | 250 | 188 | 162 | 137 | 0.88 in | Natural |
| P3-0015-02 | 0.275 in | 0.375 in | Nylon 11 | 220 | 165 | 143 | 121 | 1.5 in | Natural |
| P3-0015-04 | 3 | 5 | Nylon 12 | 250 | 188 | 162 | 137 | 25 | Red |
| P3-0015-05 | 4 | 6 | Nylon 12 | 250 | 188 | 162 | 137 | 30 | Red |
| Model No. | Hose I.D. | Hose O.D. | Material Grade | Max pressure at 75°F | Max pressure at 150°F | Minimum Bend Radius | Color |
|---|---|---|---|---|---|---|---|
| P3-0015-06 | 0.250 in | 0.125 in | Shore A 95 | 260 | 90 | 0.50 | Clear |
| P3-0015-08 | 6 | 4 | Shore A 98 | 180 | 65 | 12 | Clear Blue |
| P3-0015-09 | 8 | 5 | Shore A 98 | 175 | 75 | 15 | Clear Blue |

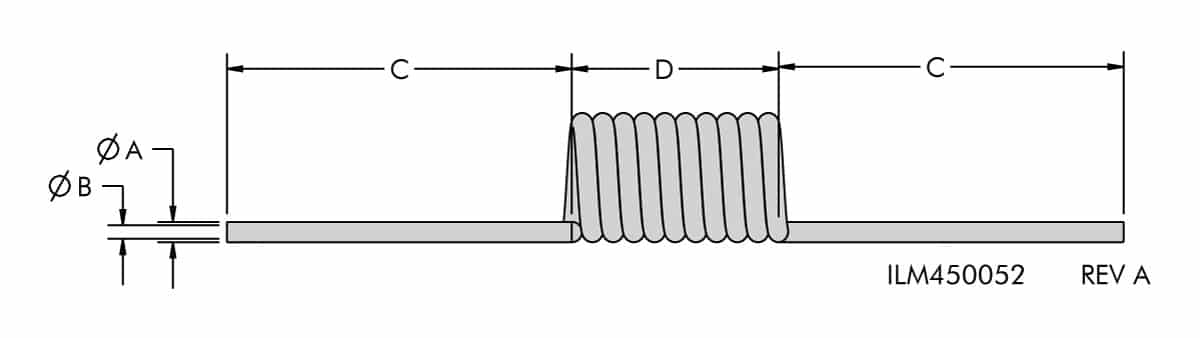

| Model No. | A | B | C | D | Material Grade | Minimum Bend Radius | Color |
|---|---|---|---|---|---|---|---|
| P3-0015-14 | 0.250 in | 0.156 in | 4 in | 2.5 in Compressed / 3.2 ft Working | Shore A 98 | 0.476 in | Clear Blue |
| P3-0015-15 | 0.250 in | 0.156 in | 4 in | 5 in Compressed / 5.8 ft Working | Shore A 98 | 0.476 in | Clear Blue |
| P3-0015-10 | 6 | 4 | 101.6 | 60.5 Compressed / 0.98 m Working | Shore A 98 | 12 | Clear Blue |
| P3-0015-11 | 6 | 4 | 101.6 | 120.7 Compressed / 1.77 m Working | Shore A 98 | 12 | Clear Blue |
| P3-0015-12 | 8 | 5 | 101.6 | 79.4 Compressed / 1m Working | Shore A 98 | 15 | Clear Blue |
| P3-0015-13 | 8 | 5 | 101.6 | 158.8 Compressed / 1.86 m Working | Shore A 98 | 15 | Clear Blue |
