Magnetic Proximity Sensors
EOAT Proximity Switches
- 62-2970-02/3 are standard solid state sensors.
- 29-7002-01 is an excellent compact sensor for small grippers with minimal space and can be adapted to either c-slot or t-slot with one of the required mounting brackets. The brackets also allow the sensor to be replaced while keeping the same slot position.
- 29-7002-05 has quick installation with it’s 2 point manual teach function and 60mm measurement range. It is also IO Link compatible, enabling up to 8 set points.
29-7002-01 Mounting Brackets

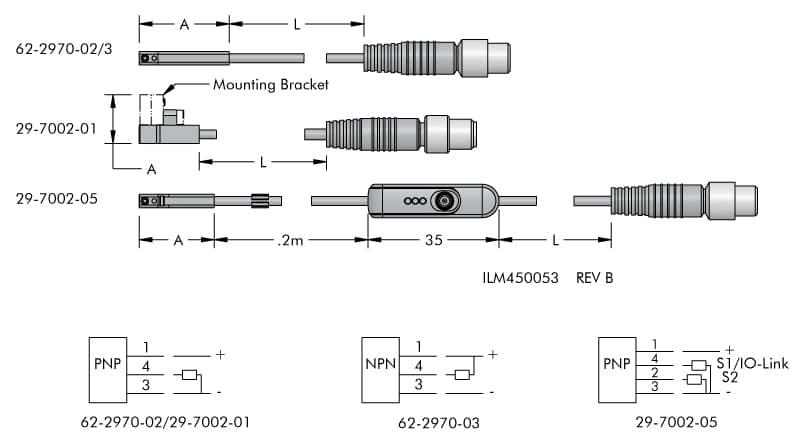

| Model No. | No. of Positions | A | L | Description | Pins | IO-Link |
|---|---|---|---|---|---|---|
| 62-2970-02 | 1 | 19.5 | 0.3 m | N/A | 3 | No |
| 62-2970-03 | 1 | 19.5 | 0.3 m | N/A | 3 | No |
| 29-7002-01 | 1 | See Mounting Brackets tab for required brackets. | 0.3 m | N/A | 3 | No |
| 29-7002-05 | 2 - 8 | 20 | 0.3 m | N/A | 4 | Yes |
| Model No. | Slot Style | A |
|---|---|---|
| 29-7002-02 | C-slot | 12.9 |
| 29-7002-03 | Compact c-slot | 8.9 |
| 29-7002-04 | T-slot | 12.9 |
