Installation Clamping Module Single Acting

Pneumatic

Catalog Section

Model No.SizePull-in/locking force up to (kN)Holding Force (kN)Blow OutWeight (Kg)
570258KP10.310.025✓1.4
570259KP20.317.055✓2.6
Model No.SizeDDND1 (mm)HHALKMT
570258KP10.31122278.0351088M625
570259KP20.313832102.04915115M634

Application:
Zero-point clamping system for set-up-time-optimized clamping during cutting and non-cutting machining.

  • Pneumatic opening.
  • Pneumatic blow-out.
  • Opening operating pressure:
    KP5.3 min. 5 bar – max. 12 bar.
    KP10.3 min. 5 bar – max. 12 bar.
    KP20.3 min. 4.5 bar – max. 12 bar.
  • Cover and piston hardened.
  • Repeat accuracy < 0.005 mm.
zp-pm-sa-schematic

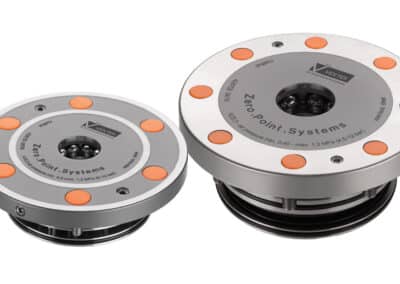

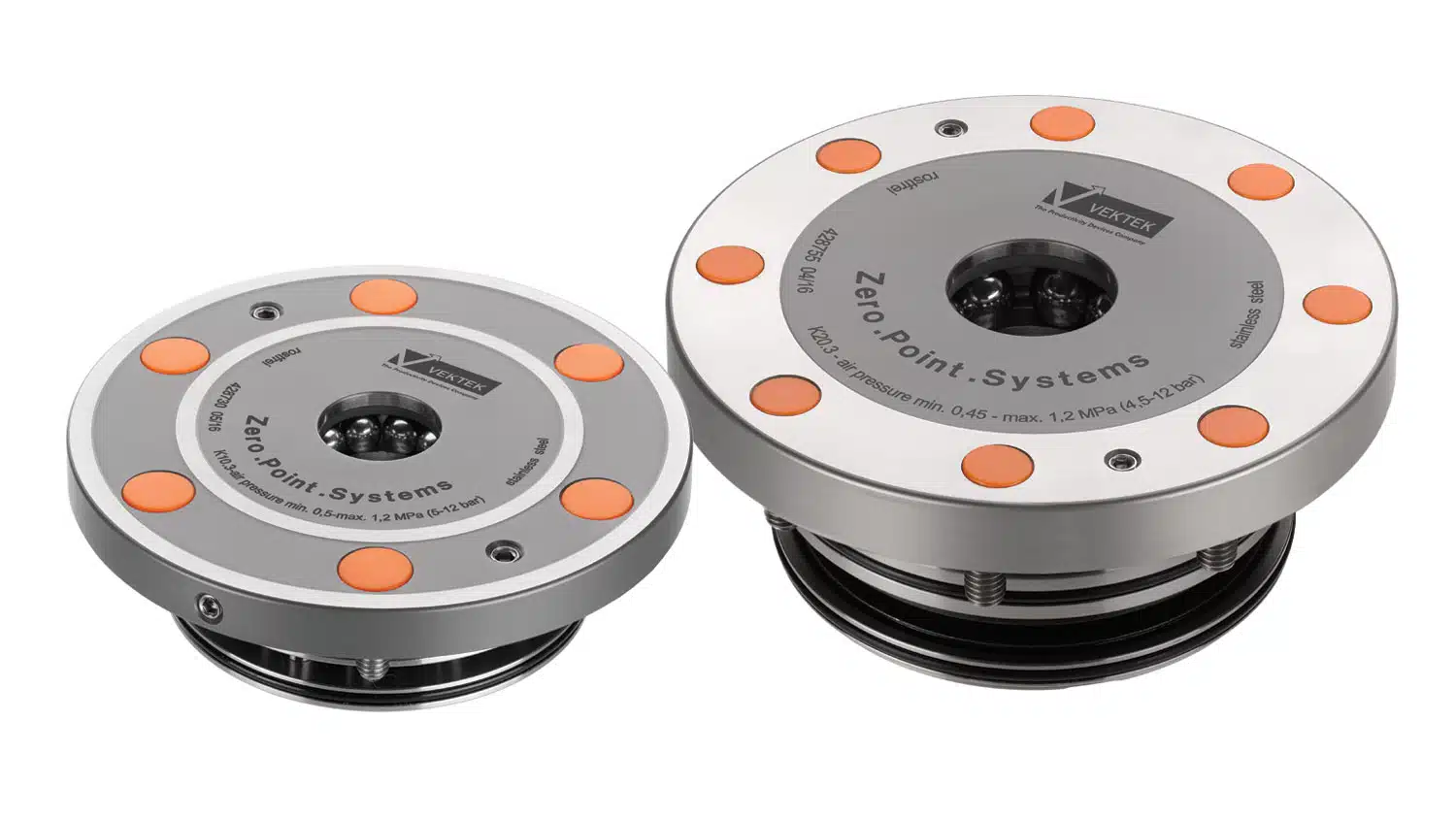

Vektek Zero-Point Pneumatic Single Acting

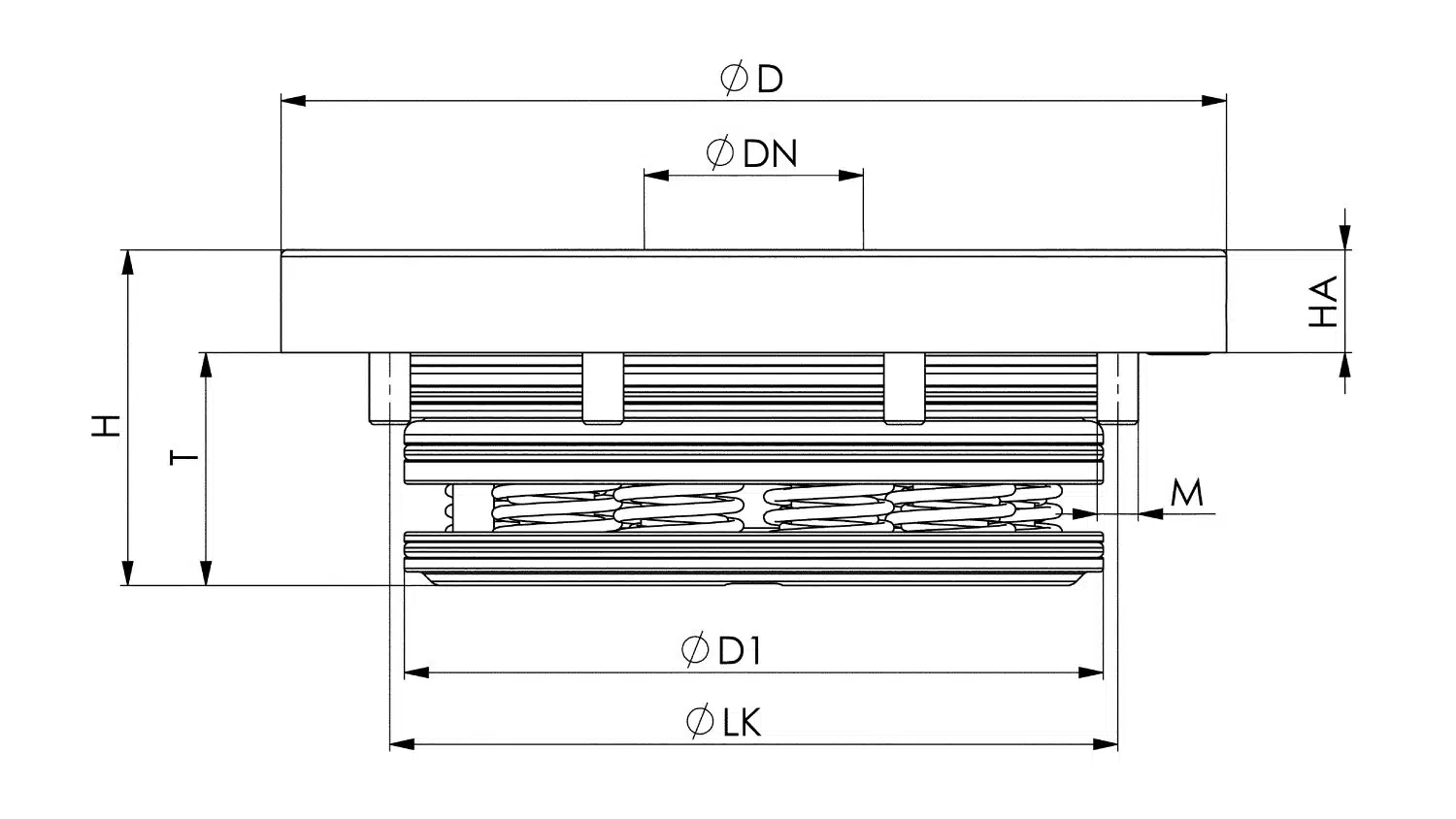

zp-pm-sa-dims

Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure free). The clamping module with blow-out and support control has two connections: 1x pneum. opening (1), 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
