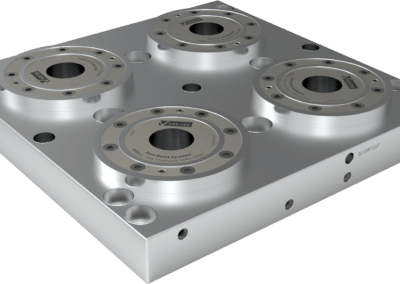

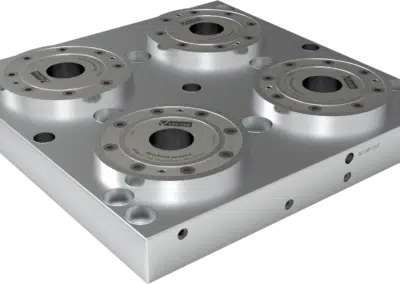

4 Module Subplates- Pneumatic
Zero-Point Subplates
- Reduce setup times by up to 90% with fast and repeatable fixture changes, keeping your machines running efficiently.
- Achieve positioning accuracy within microns, ensuring consistent quality and reduced scrap rates.
- Compatible with a wide range of workholding solutions, allowing seamless integration into your existing setup.
- Pneumatic quick-couplers included.
NOTE: Download the CAD files for more detailed dimensions.
* Blowoff not available on all models.
** Blowoff option not available.

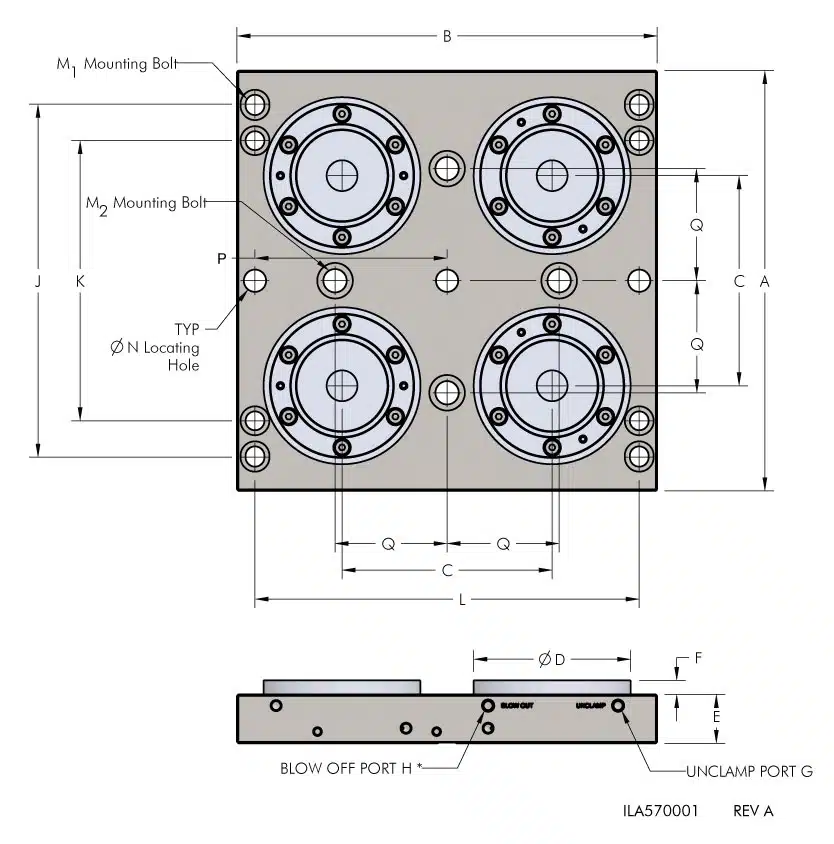

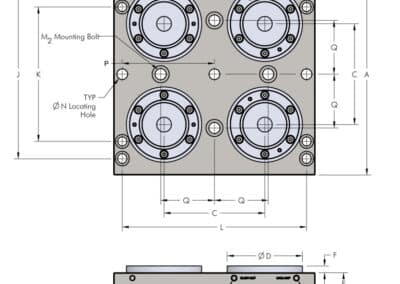

| Model No. | Size | A | B | C | D | E | F | G | H | J | K | L | M1 | M2 | N | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 571040 | K10 | 300 | 300 | 150 | Ø112 | 35 | 10 | G1/8 | G1/8 | 251 | 200 | 274 | 1/2" SHCS | M16 SHCS | 15.9 | 137 | 80 |
| 571041 | K10 | 366 | 366 | 200 | Ø112 | 28 | 10 | G1/4 | N/A** | 251 | 200 | 340 | M12 SHCS | M12 SHCS | 20 | 166.5 | 100 |
| 572040 | K20 | 400 | 400 | 200 | Ø138 | 39 | 15 | G1/8 | G1/8 | 320 | N/A | 320 | M16 SHCS | 1/2" SHCS | 15.9 | 160 | 125 |
| 572041 | K20 | 399 | 399 | 200 | Ø138 | 38 | 15 | G1/4 | N/A** | 251 | 200 | 370 | M12 SHCS | M12 SHCS | 20 | 183.5 | 100 |
