Precision Support with Pneumatic Cylinders and Work Supports

Catalog Section

Pneumatic cylinders use compressed air to provide controlled movement in workholding systems, while work supports help stabilize parts when clamping alone is insufficient. In machining, long workpieces, thin-walled components and multi-pass operations can deflect under cutting forces. Work supports add controlled reinforcement beneath or around the part, helping manufacturers maintain tighter tolerances without overclamping.

Vektek work supports complement power clamps and other fixture clamping devices by reinforcing the part where it needs support. For engineers comparing Vektek and Kosmek, Vektek offers hydraulic, pneumatic and spring-advance options within one workholding ecosystem, with engineering support for application-specific fixture needs.

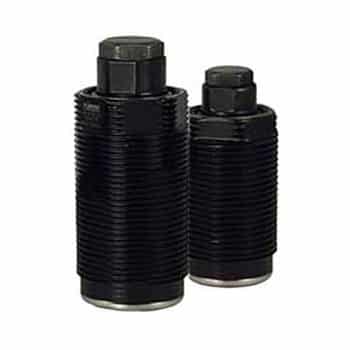

TuffGrip High Capacity Fluid Advance 3-Bolt Base

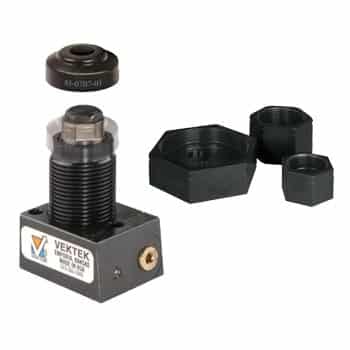

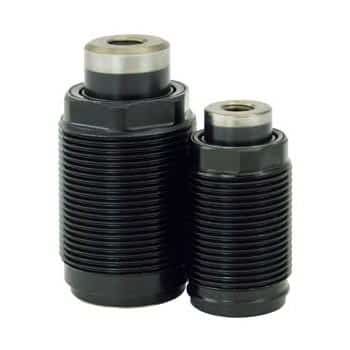

Air Advance Work Support Cartridge

Work Supports – Learn More

Key Benefits of Work Supports

Work supports help reduce setup time, improve repeatability and control workpiece movement during machining. Instead of manually shimming or overclamping a part, Vektek supports provide consistent reinforcement before cutting begins, delivering the precision and dependability demanding applications require.

How to Choose the Right Work Supports

Start by identifying where the part deflects, how much support force is required and which actuation method best fits the fixture. Hydraulic support cylinders are well-suited to high-force applications and integrate with hydraulic workholding products. Pneumatic work supports may be suitable for applications where compressed air is available and lighter actuation is preferred.

Adjustable work supports can help when fixture conditions vary by part, while a spring-loaded work support can provide gentle contact before locking or supporting the part. Use the product cards below to compare styles, capacities, mounting options and actuation types.

Applications for Machine Work Supports

Machine work supports are commonly used in CNC machining, milling, drilling, automation, aerospace components, automotive parts, medical manufacturing and custom fixturing. They are valuable when the workpiece must remain stable through multiple operations without distortion from excessive clamping force.

Inch Hydraulic Work Supports

Vektek’s hydraulic work supports are engineered to deliver precise, repeatable support for workpieces during machining operations. Designed for high-performance fixturing, these supports offer exceptional positional accuracy with repeatability up to ±0.0002 inches, ensuring consistent results across demanding applications.

Built for durability, Vektek work supports feature corrosion-resistant coatings, oversized plungers and sleeves for added rigidity, and proprietary wipers and seals that minimize contamination and friction — extending service life even in harsh environments. Standard SAE porting is conveniently located at the base for streamlined installation and maintenance, while cartridge-mount options allow for seamless integration into custom-machined cavities.

Multiple styles are available to meet a variety of application needs, including high-capacity fluid advance, spring advance, air advance, and part-present sensing models — each shown with detailed cutaway views for clarity. Among the latest innovations is Vektek’s “World’s Smallest Work Support,” delivering up to 3× the capacity of competing models at 5,000 PSI. This compact unit features a smart hydraulic sequence: the plunger retracts during part loading, advances gently via spring pressure, then automatically locks under hydraulic force to provide secure, stable support.

Work Support FAQs

Use these answers to compare work support styles and identify the right support approach for your fixture.

What is the difference between a work support and a clamp?

A clamp holds the part in place. A work support reinforces the part so it does not deflect under machining forces.

Hydraulic vs. pneumatic vs. spring-loaded — which is right?

Choose hydraulic for higher support force, integration with hydraulic systems and maximum precision. Choose pneumatic for air-powered actuation when shop air is available. Choose spring-loaded support when gentle contact is required by the fixture design.

How many work supports do I need?

The answer depends on part geometry, material, unsupported span, cutting forces and tolerance requirements.

Can work supports cause workpiece deformation?

Yes, if they are placed incorrectly or apply more force than the part can handle. The right support should stabilize the part without lifting, shifting or distorting it.

How do I calculate the required support force?

Start with the expected cutting forces, part geometry, material and unsupported areas. Vektek engineers can help confirm the right support force for the fixture.

Are Vektek work supports compatible with Kosmek fixtures?

Compatibility depends on the existing fixture layout, mounting space and support requirements. Compare product drawings and consult Vektek engineering before replacing or retrofitting work supports.

Need Selection Help? Contact Our Engineers

Compare work support options or contact our engineers to discuss support force, placement and fixture requirements.
