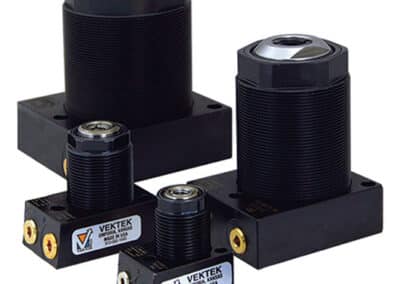

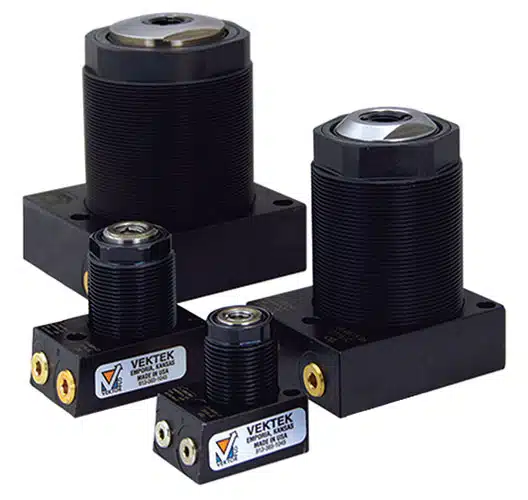

Air Advance Base Inch Hydraulic Work Supports
For Supporting Fragile Parts Or Use In Harsh Environments
- Available in four capacities from 1,000 to 12,500 lb., adapt to support fragile parts, heavy parts or “hog out” applications.
- For harsh environments (where contaminants such as aluminum or cast iron fines, corrosive or tacky coolants are present) we suggest running a constant “air spring” to keep the plunger extended and the problem contaminants out.
- Normally retracted plungers provide additional clearance for part loading. Advance them with air pressure, exerting ONLY the force needed to “kiss” the part, then “freeze” the plunger in place hydraulically.
- Heavier attachments may be used with air advance supports because of their additional air powered lifting/contact force. Stainless steel plunger and sleeve assemblies help guard against corrosion in most machining environments.

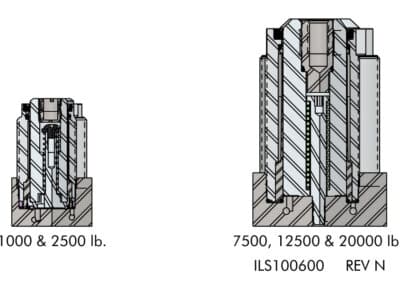

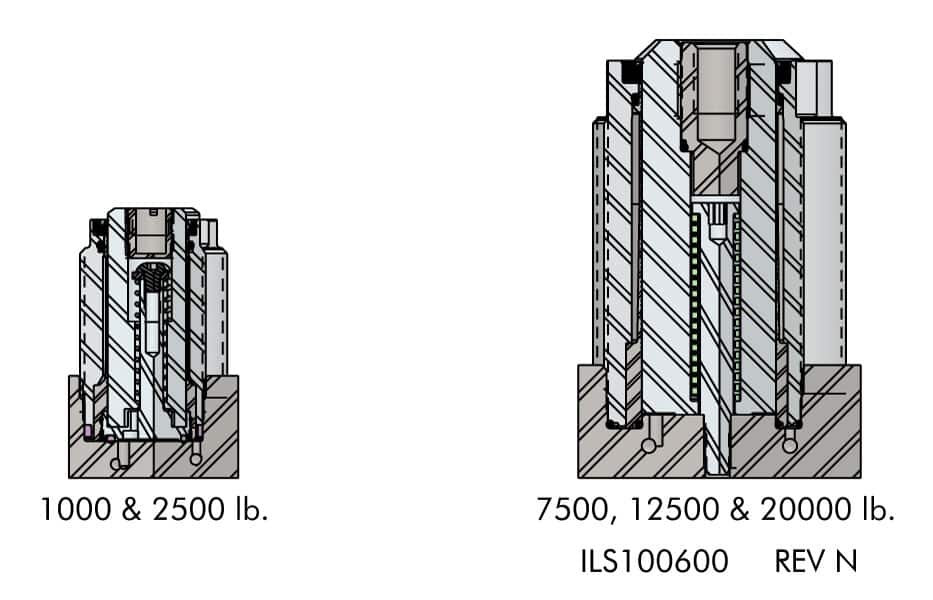

- Standard SAE porting and alternate o-ring manifold face seal is located in the base of the support for bolt down installation, The base can be removed for direct cartridge mounting.
- Stainless steel plunger and sleeve assemblies help guard against corrosion in most machining environments.
- Special large diameter plungers and sleeves provide greater rigidity.
Continuous flow of air, can serve as an “air spring” and be left connected during machining. This “air spring” effect helps keep harsh contaminants from getting between the plunger and sleeve. This is an excellent support choice when using double acting cylinders. You should observe air bubbles escaping around the plunger when used in this manner.

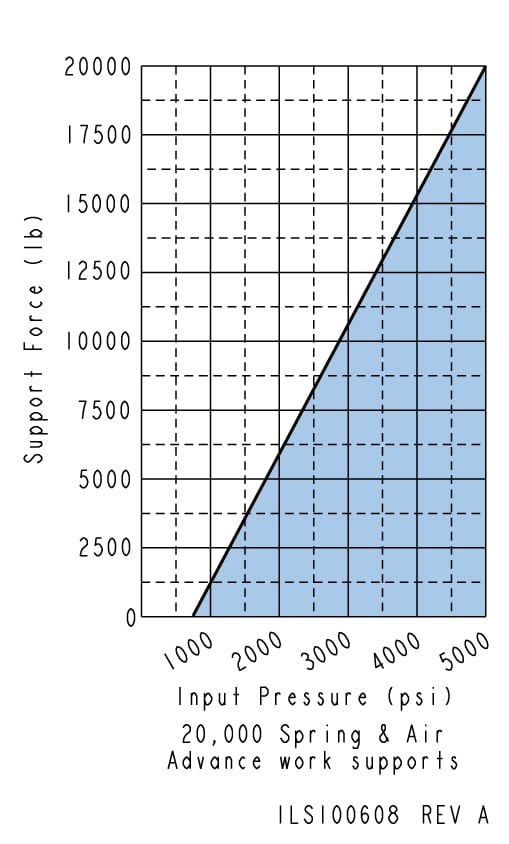

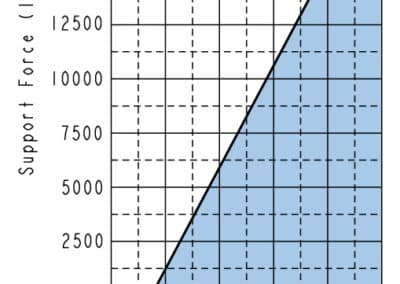

* Support capacities are listed at 5,000 psi maximum operating pressure. Support capacities for other pressures must be determined by consulting the capacity graph tab.

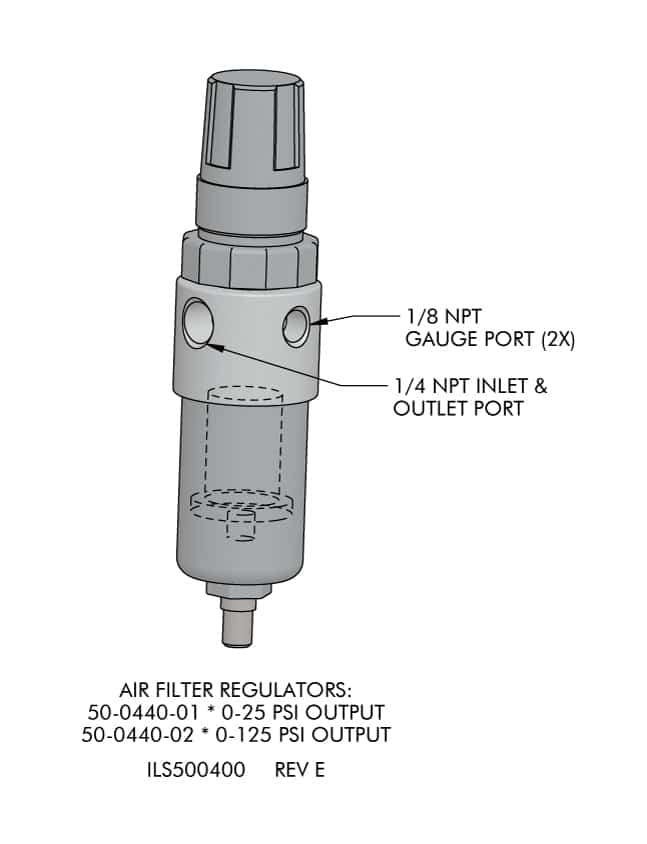

** The maximum air pressure for advancing the plunger is 25 psi. Order air regulator separately. Model No. 50-0440-01 (0 to 25 psi) to more precisely control plunger advance force (See tab on this section).

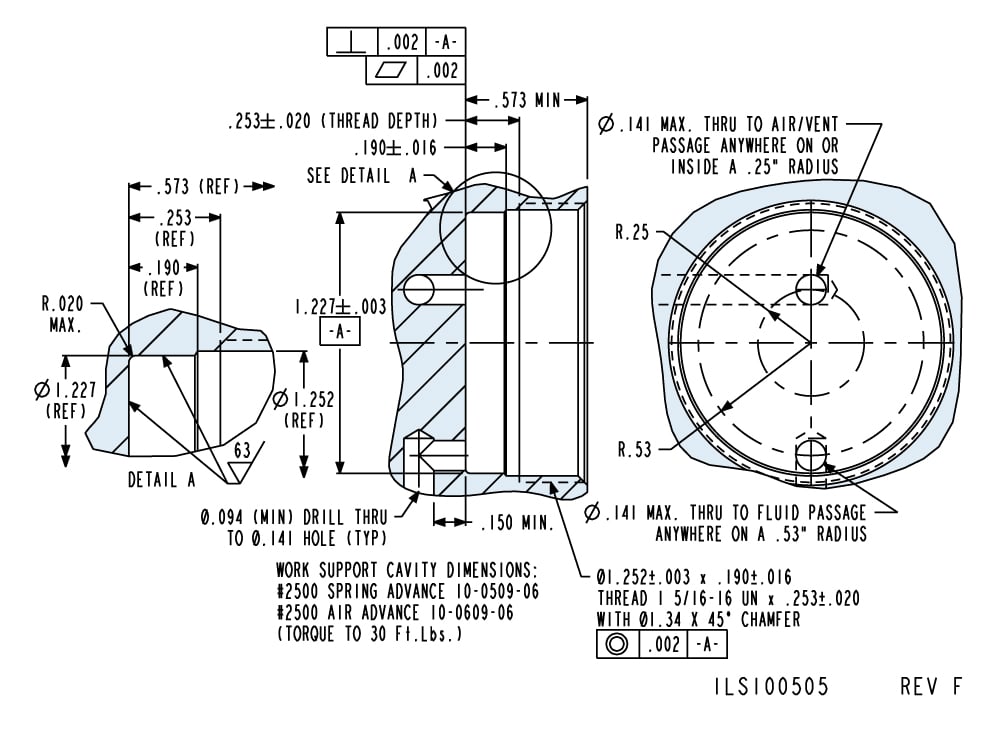

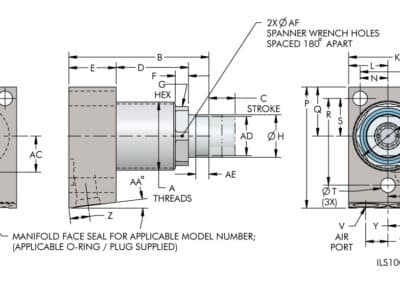

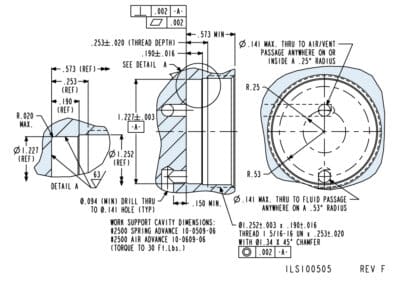

For proper sealing, all mating surfaces should be flat within 0.003 inches, with a maximum surface roughness of 63 μ in. Ra. Hydraulic oil feed holes for manifold mounting Ø 0.09 to Ø 0.20 inches.
| Model No. | Support Capacity (lb.) | Mounting Style | Contact Force (lb.) | Stroke (in.) | Base Dimension (in.) | Retracted Height (in.) | Oil Capacity (cu. in.) | Approximate Pressure to Extend |
|---|---|---|---|---|---|---|---|---|
| 10-0606-11 | 1000 | Base - SAE Port | 4 | 0.25 | 0.85 X 1.25 X 1.75 | 1.93 | 0.12 | 7 |
| 10-0606-12 | 1000 | Base - Manifold Mount | 4 | 0.25 | 0.90 X 1.31 X 1.75 | 1.99 | 0.13 | 7 |
| 10-0609-07 | 2500 | Base - SAE Port | 8 | 0.38 | 0.91 X 1.50 X 2.31 | 2.40 | 0.13 | 10 |
| 10-0609-08 | 2500 | Base - Manifold Mount | 8 | 0.38 | 0.91 X 1.50 X 2.31 | 2.40 | 0.10 | 10 |
| 10-0615-06 | 7500 | Base - SAE Port | 20 | 0.50 | 1.00 X 2.50 X 3.00 | 3.87 | 0.81 | 15 |
| 10-0620-07 | 12500 | Base - SAE Port | 57 | 0.75 | 1.25 X 3.50 X 3.81 | 4.50 | 1.79 | 7 |
| 10-0629-10 | 20000 | Base - SAE Port | 116 | 1.00 | 1.99 X 4.75 X 4.88 | 6.15 | 3.37 | 10 |

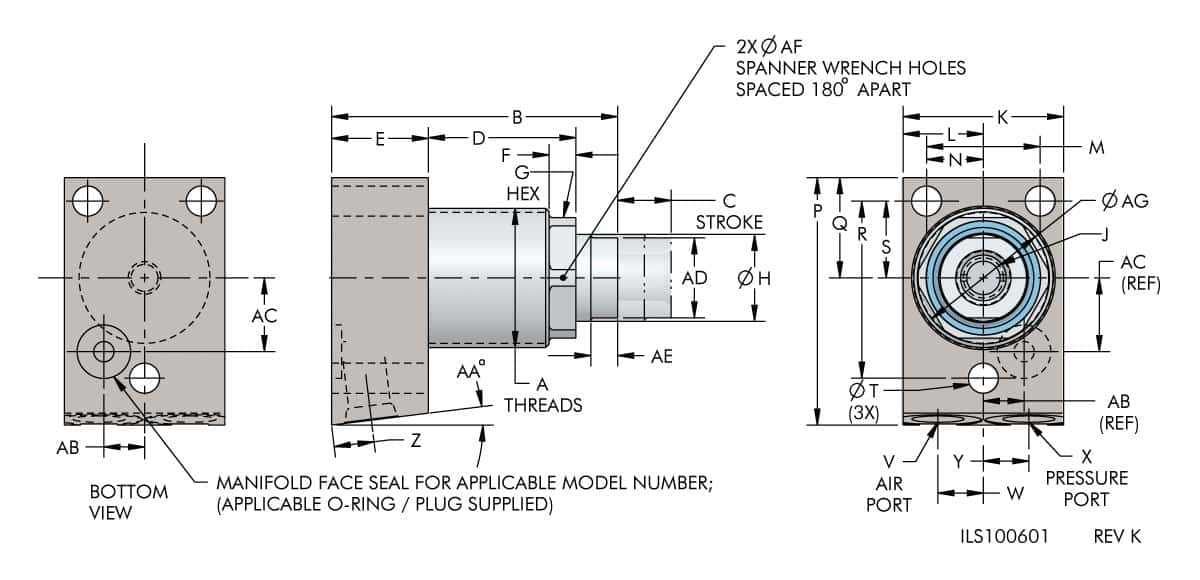

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AB | AC | AD | AE | AF | AG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-0606-11 | 1-16 | 1.93 | 0.25 | 1.06 | 0.85 | 0.21 | 0.87 | 0.63 | 5/16-18 X 0.29 | 1.25 | 0.63 | 0.90 | 0.45 | 1.75 | 0.69 | 1.20 | 0.51 | 0.22 | SAE 2 | 0.33 | SAE 2 | 0.33 | 0.37 | 7 | N/A | N/A | N/A | N/A | N/A | 0.92 |
| 10-0606-12 | 1-16 | 1.99 | 0.25 | 1.06 | 0.90 | 0.21 | 0.87 | 0.63 | 5/16-18 X 0.29 | 1.31 | 0.66 | 0.90 | 0.45 | 1.75 | 0.69 | 1.20 | 0.51 | 0.22 | SAE 2 | 0.33 | N/A | N/A | 0.37 | 7 | 0.38 | 0.69 | N/A | N/A | N/A | 0.92 |
| 10-0609-07 | 1 5/16 - 16 | 2.40 | 0.38 | 1.39 | 0.91 | 0.25 | 1.13 | 0.81 | 3/8-16 X 0.24 | 1.50 | 0.75 | 1.06 | 0.53 | 2.31 | 0.94 | 1.66 | 0.72 | 0.28 | SAE 4 | 0.43 | SAE 4 | 0.43 | 0.38 | 7 | N/A | N/A | N/A | N/A | N/A | 1.22 |
| 10-0609-08 | 1 5/16 - 16 | 2.40 | 0.38 | 1.39 | 0.91 | 0.25 | 1.13 | 0.81 | 3/8-16 X 0.24 | 1.50 | 0.75 | 1.06 | 0.53 | 2.31 | 0.94 | 1.66 | 0.72 | 0.28 | SAE 4 | 0.43 | N/A | N/A | 0.38 | 7 | 0.43 | 0.88 | N/A | N/A | N/A | 1.22 |
| 10-0615-06 | 2 1/4 - 16 | 3.87 | 0.50 | 2.67 | 1.00 | 0.50 | 1.99 | 1.50 | 1/2-13 X 0.63 | 2.50 | 1.25 | 2.06 | 1.03 | 3.00 | 1.25 | 2.41 | 1.03 | 0.28 | SAE 4 | 0.63 | SAE 4 | 0.63 | 0.38 | N/A | N/A | N/A | 1.13 | 0.16 | N/A | 2.16 |
| 10-0620-07 | 3-16 | 4.49 | 0.76 | 3.00 | 1.24 | 0.53 | 2.74 | 2.00 | 5/8-11 X 0.63 | 3.50 | 1.75 | 2.87 | 1.44 | 3.81 | 1.75 | 3.22 | 1.44 | 0.34 | SAE 4 | 0.94 | SAE 4 | 0.94 | 0.38 | N/A | N/A | N/A | 1.63 | 0.16 | N/A | 2.91 |
| 10-0629-10 | 4 1/4 - 16 | 6.15 | 1.00 | 3.97 | 1.99 | 0.80 | N/A | 2.85 | 3/4-16 X 0.87 | 4.75 | 2.38 | 4.00 | 2.00 | 4.88 | 2.38 | 4.00 | 2.00 | 0.41 | SAE 4 | 1.25 | SAE 4 | 1.25 | 0.37 | N/A | N/A | N/A | 2.13 | N/A | 0.39 | 4.16 |
| Model No. | Support Capacity (lb.) |
|---|---|
| 10-0606-11 | 1000 |
| 10-0606-12 | 1000 |
| 10-0609-07 | 2500 |
| 10-0609-08 | 2500 |
| 10-0615-06 | 7500 |
| 10-0620-07 | 12500 |
| 10-0629-10 | 20000 |
| Model No. | Output |
|---|---|
| 50-0440-01 | 0 - 25 psi |
| 50-0440-02 | 0 - 125 psi |
