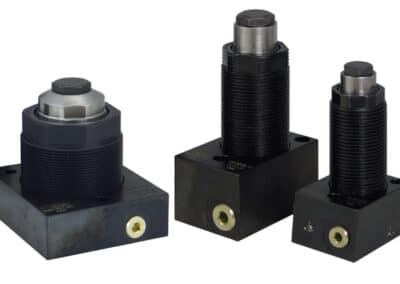

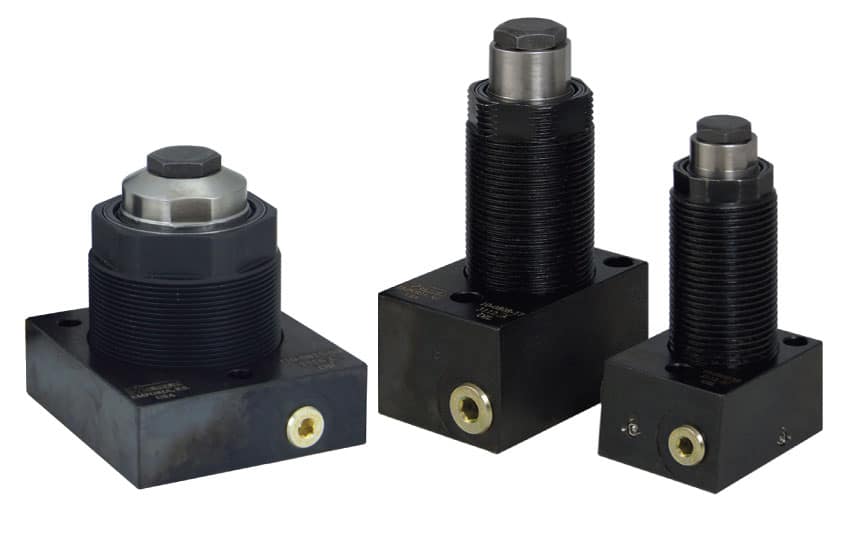

Fluid Advance Base Inch Hydraulic Work Supports

For Retracted Plunger Applications

Available in: 1,000, 2,500 and 4,000 lbs.
Normally retracted plungers do not interfere with part loading. Advance them with hydraulic pressure, exerting only spring force to bring the plunger into contact with your part. Hydraulic pressure then automatically sequences, freezing the plunger properly against the part.
Ventless configuration and built in wiper keeps chips and debris out, reducing the chance of plunger/sleeve sticking or binding.
Stainless steel plunger and sleeve assemblies help guard against corrosion in most machining environments.

Plunger and sleeve assemblies designed to help guard against corrosion in most machining environments. Standard SAE porting and alternate O-Ring manifold face seal is located in the base of the support for bolt down installation. The base can be removed for direct cartridge mounting.

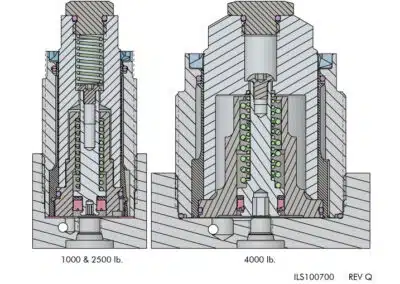

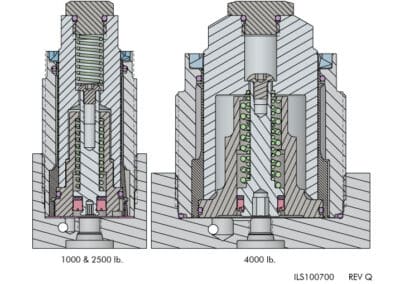

Fluid Advance Work Support Base Workholding

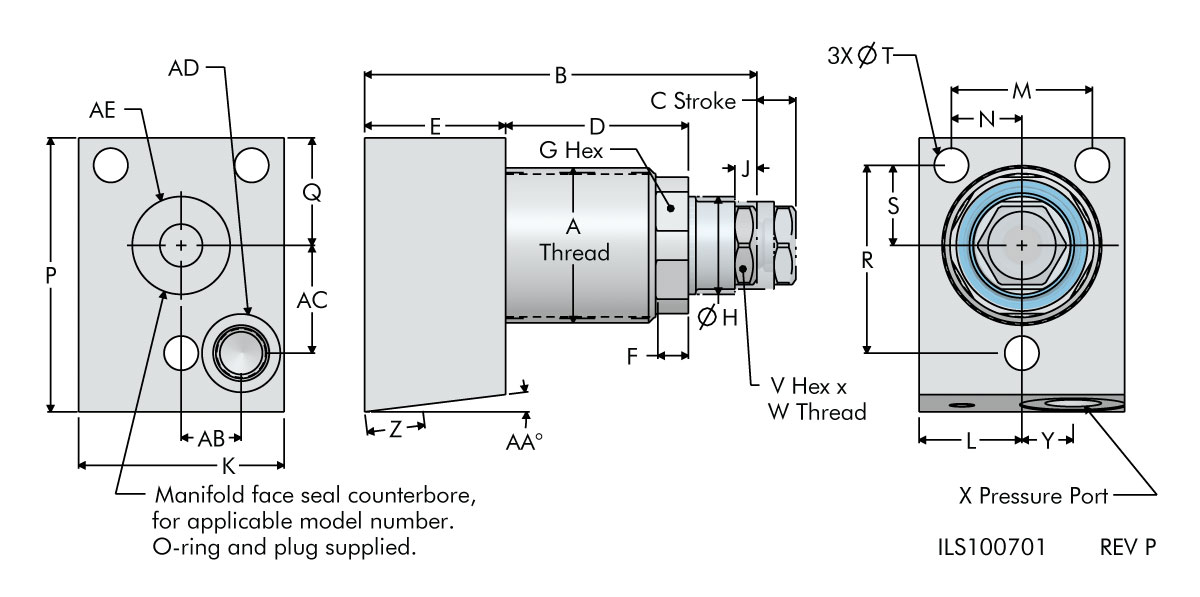

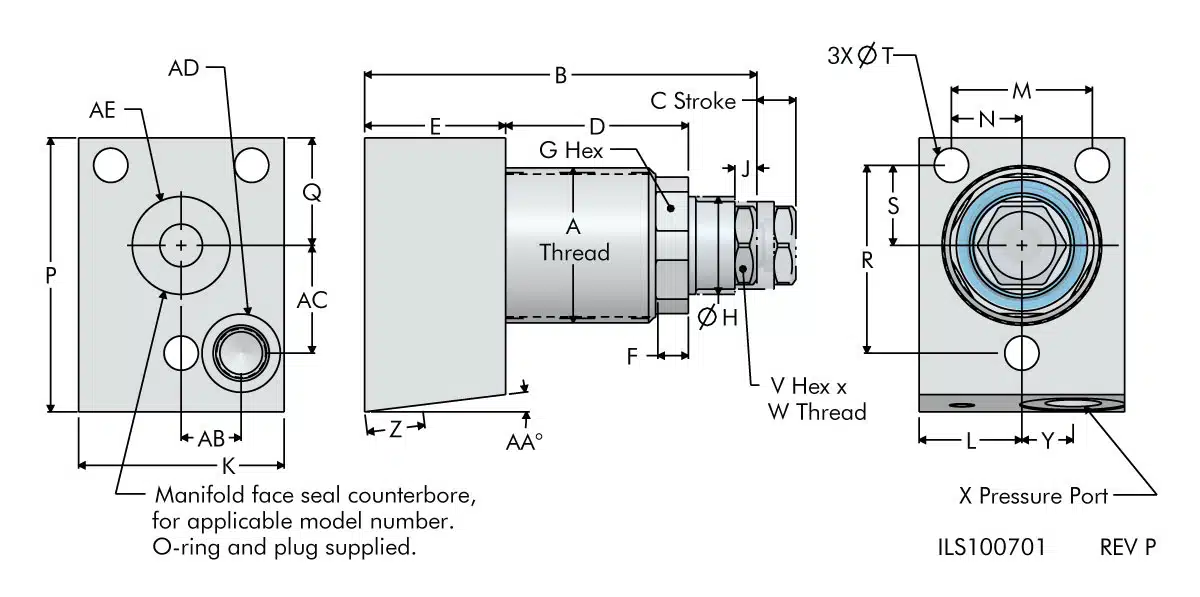

Vektek Single Acting Fluid Advance Base Mount Work Support Dimensions Workholding

* Support capacities are listed at 5,000 psi maximum operating pressure. Support capacities for other pressures must be determined by consulting the Capacity tab.
** Restrict flow rate to a maximum of 130 cu. in./minute.

NOTE: The maximum system backpressure a fluid advance work support can overcome is 10 psi. Returning backpressure greater than 10 psi may cause slow or failed retraction.

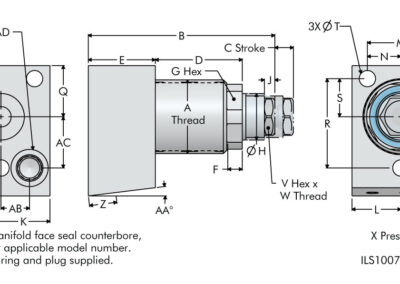

Vektek Single Acting Fluid Advance Base Mount Work Support Dimensions

For proper sealing, all mating surfaces should be flat within 0.003 inches, with a maximum surface roughness of 63 μ in. R_a. Hydraulic oil feed holes for manifold mounting Ø 0.09 to Ø 0.20 inches.

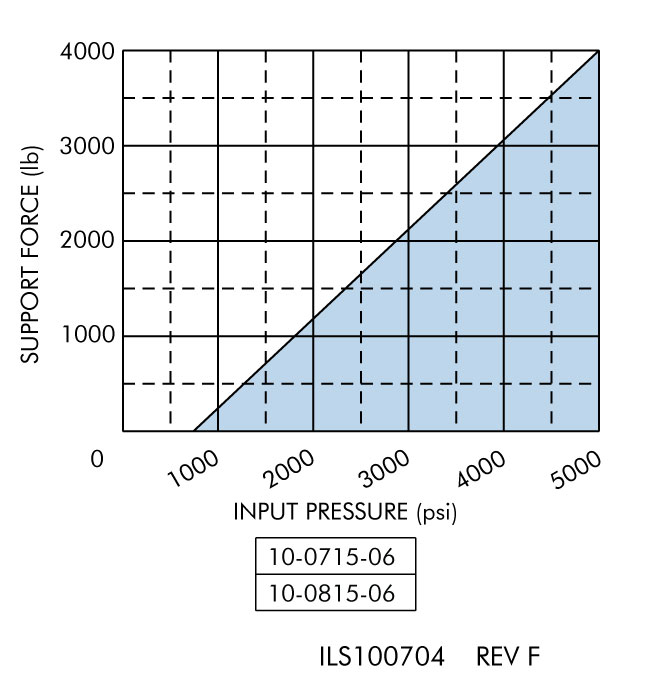

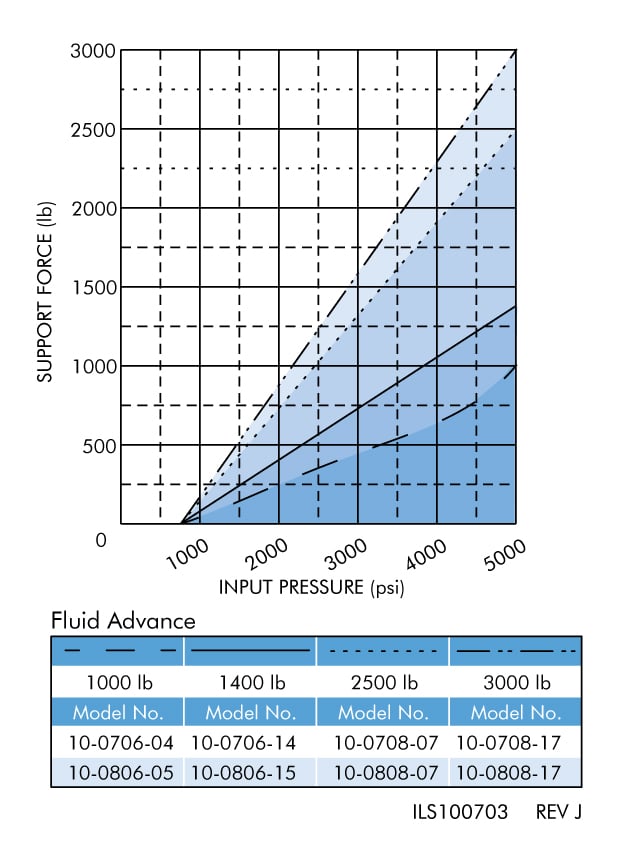

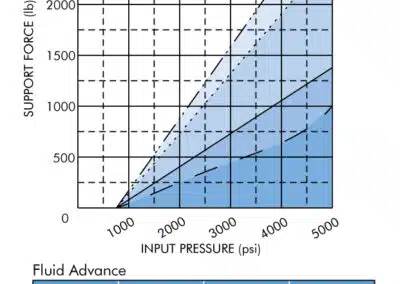

TuffGrip High Capacity Fluid Advance Work Support - Capacity

For Spherical Work Support Contact Bolt, click here.

Top Flange Position Sensing Double Acting Custom Contact Bolt

Model No.	Support Capacity (lb.)	Mounting Style	Contact Force (lb.)	Stroke (in.)	Base Dimension (in.)	Retracted Height (in.)	Oil Capacity (cu. in.)
10-0806-05	1000	Base - SAE/Manifold	1-6	0.25	0.90 X 1.31 X 1.75	2.51	0.16
10-0806-15	1400	Base - SAE/Manifold	1-6	0.50	0.90 X 1.31 X 1.75	3.01	0.17
10-0808-07	2500	Base - SAE/Manifold	3-10	0.25	1.25 X 1.50 X 2.31	3.25	0.19
10-0808-17	3000	Base - SAE/Manifold	3-10	0.50	1.25 X 1.50 X 2.31	3.75	0.21
10-0815-06	4000	Base - SAE/Manifold	8-12	0.50	0.99 X 2.88 X 3.19	3.25	0.65

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	W	X	Y	Z	AA	AB	AC	AD	AE
10-0806-05	1-16	2.51	0.25	1.17	0.90	0.21	0.88	0.62	0.14	1.31	0.66	0.90	0.45	1.75	0.69	1.20	0.51	0.22	0.50	5/16-18 X 0.20	SAE 2	0.33	0.38	7	0.38	0.69	YES	N/A
10-0806-15	1-16	3.01	0.50	1.67	0.90	0.21	0.88	0.62	0.14	1.31	0.66	0.90	0.45	1.75	0.69	1.20	0.51	0.22	0.50	3/8-24 X 0.20	SAE 2	0.33	0.38	7	0.38	0.69	YES	N/A
10-0808-07	1 1/4-16	3.25	0.25	1.35	1.25	0.36	1.13	0.81	0.19	1.50	0.75	1.06	0.53	2.31	0.94	1.66	0.72	0.28	0.63	7/16-14 X 0.25	SAE 4	0.43	0.38	N/A	N/A	N/A	N/A	YES
10-0808-17	1 1/4-16	3.75	0.50	1.85	1.25	0.36	1.13	0.81	0.19	1.50	0.75	1.06	0.53	2.31	0.94	1.66	0.72	0.28	0.63	7/16-14 X 0.25	SAE 4	0.43	0.38	N/A	N/A	N/A	N/A	YES
10-0815-06	2 1/4-16	3.25	0.50	1.57	0.99	0.50	2.00	1.50	0.19	2.88	1.44	2.06	1.03	3.19	1.44	2.41	1.03	0.28	0.75	1/2-13 X .025	SAE 4	0.63	0.38	N/A	N/A	N/A	N/A	YES

Model No.	Support Capacity (lb.)
10-0806-05	1000
10-0806-15	1400
10-0808-07	2500
10-0808-17	3000
10-0815-06	4000

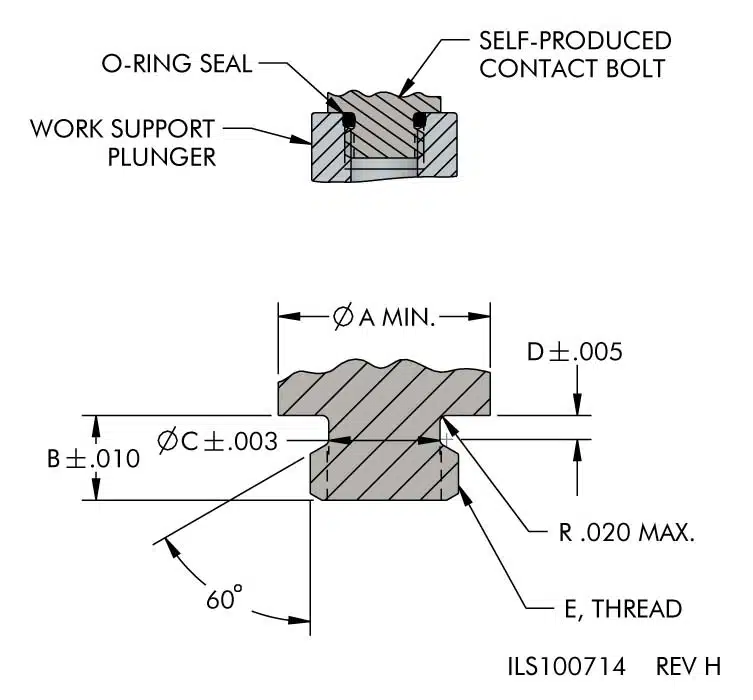

Model No.	Support Capacity (lb.)	O-Ring Part Number	O-Ring Size	A	B	C	D	E
10-0806-05	1000	39-0510-59	0.236 X 0.059	0.384	0.197	0.238	0.047	5/16-18 UNC-2A
10-0806-15	1400	39-0000-69	0.301 X 0.064	0.450	0.197	0.302	0.047	3/8-24 UNF-2A
10-0808-07	2500	55-2500-05	0.301 X 0.070	0.493	0.250	0.328	0.070	7/16-14 UNC-2A
10-0808-17	3000	55-2500-05	0.301 X 0.070	0.493	0.250	0.328	0.070	7/16-14 UNC-2A
10-0815-06	4000	39-0020-09	0.364 x 0.070	0.555	0.250	0.390	0.070	1/2-13 UNC-2A
