Spherical Contact Bolts for Inch Hydraulic Work Supports
Work Support Accessories
NOTE: All models come with O-ring.

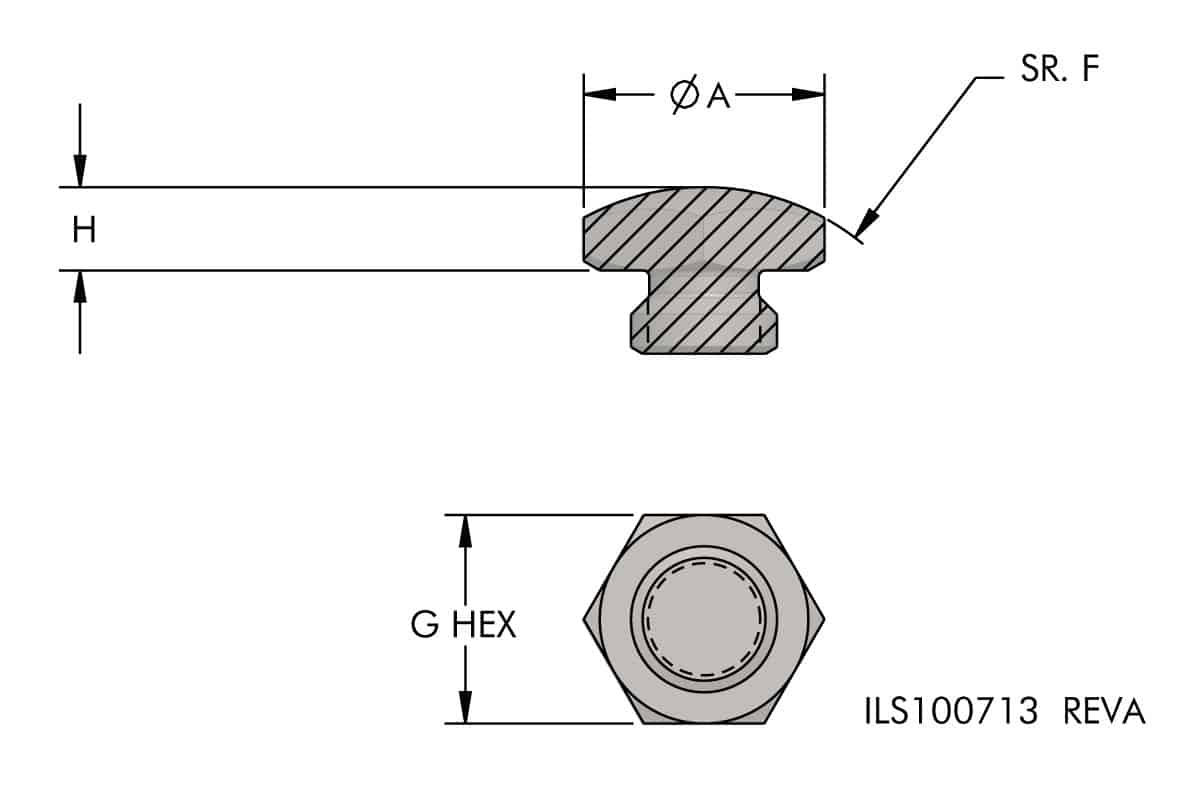

| Model No. | Thread | A | F | G | H |
|---|---|---|---|---|---|
| 91-0404-20 | 1/4-20 UNC | 0.313 | 0.620 | 9/32 | 0.129 |
| 91-0406-22 | 3/8-24 UNF | 0.540 | 1.250 | 1/2 | 0.174 |
| 91-0406-30 | 5/16-18 UNC | 0.563 | 1.250 | 1/2 | 0.174 |
| 91-0408-15 | 7/16-14 UNC | 0.722 | 0.750 | 5/8 | 0.281 |
| 91-0408-30 | 9/16-18 UNF | 0.683 | 1.750 | 5/8 | 0.222 |
| 91-0410-20 | 5/8-11 UNC | 0.875 | 2.000 | 13/16 | 0.360 |
| 91-0415-20 | 1/2-13 UNC | 0.866 | 1.000 | 3/4 | 0.254 |
| 91-0429-20 | 3/4-16 UNF | 1.115 | 2.000 | 1 | 0.329 |
