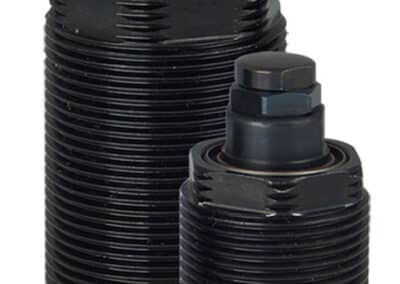

TuffGrip High Capacity Fluid Advance Part Present Sensing Cartridge Inch Hydraulic Work Supports

Cartridge Cavity Check List

Plungers stay retracted during part loading while air flow travels through the work support. Hydraulic pressure advances the plunger exerting only spring force as it makes contact with the part. This closes the integral air valve to indicate part is present and contacted. Hydraulic pressure then automatically sequences, freezing the plunger.

Available in 2,000, 4,000 and 8,000 lb. capacity.
Once support is locked, air sensing positively confirms both contact and part present.
Uses Vektek’s BHC (Black Hard Coating) technology to guard against corrosion.
O-Ring face seal design makes machining cavities easier.
Max air operating pressure is 15 PSI.

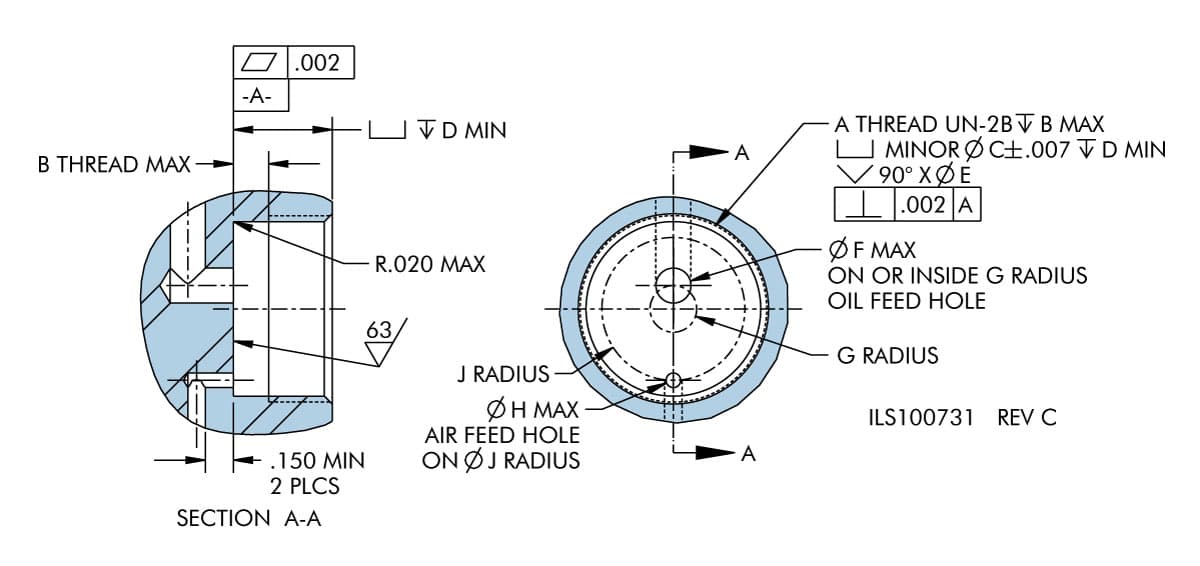

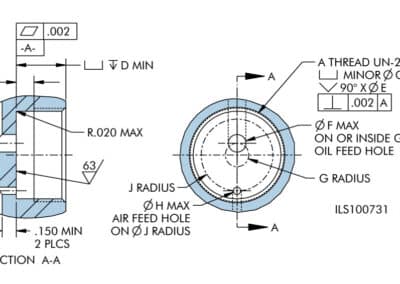

Cartridge Mount Work Support Check List

Confirm capacity of item selected.
Note the sealing surface finish requirements.
Minimum depth specification represents the nominal depth of the standard Vektek base dimension.
Confirm cavity drawing is appropriate for the model number used.
Note specified thread depth when cutting threads.
When using a bottoming tap tool, modifications may be required.
When hand tapping threads, perpendicularity is essential.

TuffGrip High Capacity Fluid Advance Part Present Sensing Cartridge Workholding

TuffGrip High Capacity Fluid Advance Part Present Sensing Cartridge

TuffGrip High Capacity Fluid Advance Work Support - Capacity

For Spherical Work Support Contact Bolt, click here.

Custom contact bolt dimensions for Top Flange Double Acting Work Supports

*Retaining ring, adapter, and o-ring may be ordered as needed.

Air Sensing Control Kit (Model #50-8240-00)

Model No.	Support Capacity (lb.)	Contact Force (lb.)	Stroke (in.)	Retracted Height (in.)	Oil Capacity (cu. in.)
10-0706-10-PS	2000	1-6	0.25	2.28	0.05
10-0706-16-PS	2000	1-6	0.50	2.78	0.07
10-0708-10-PS	4000	3-10	0.25	3.04	0.20
10-0708-16-PS	4000	3-10	0.50	3.54	0.23
10-0710-10-PS	8000	4-13	0.63	4.28	0.57

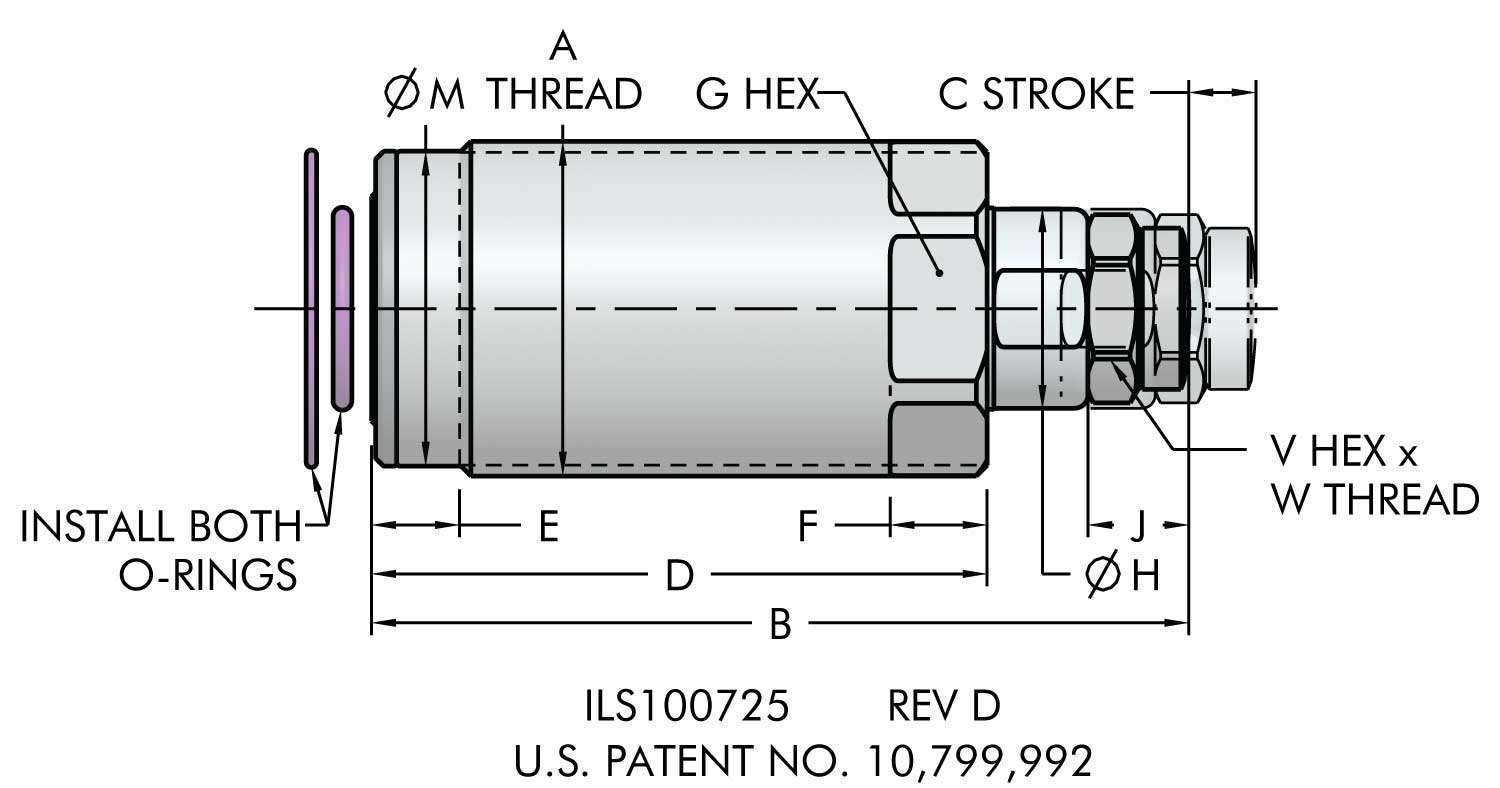

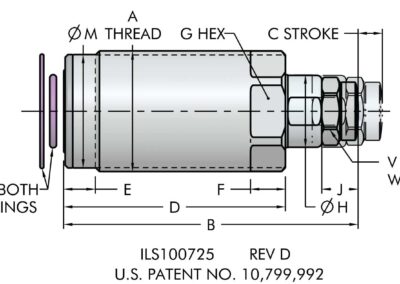

Model No.	A	B	C	D	E	F	G	H	J	M	V	W
10-0706-10-PS	1 - 16	2.28	0.25	1.72	0.24	0.21	0.88	0.56	0.28	0.92	0.43	5/16 - 18 X 0.20
10-0706-16-PS	1 - 16	2.78	0.50	2.18	0.24	0.21	0.88	0.56	0.28	0.92	0.43	3/8 - 24 X 0.20
10-0708-10-PS	1 1/4 - 16	3.04	0.25	2.29	0.33	0.36	1.13	0.75	0.38	1.17	0.62	7/16 - 14 X 0.25
10-0708-16-PS	1 1/4 - 16	3.54	0.50	2.67	0.33	0.36	1.13	0.75	0.38	1.17	0.62	7/16 - 14 X 0.25
10-0710-10-PS	1 3/4 - 16	4.28	0.63	3.22	0.33	0.40	1.50	1.00	0.59	1.67	0.81	5/8 - 11 X 0.31

Model No.	A	B	C	D	E	F	G	H	J	Installation Torque
10-0706-10-PS	1-16	0.170	0.939	0.53	1.03	0.188	0.125	0.078	0.383	35 FT-LB
10-0706-16-PS	1-16	0.170	0.939	0.53	1.03	0.188	0.125	0.078	0.383	35 FT-LB
10-0708-10-PS	1 1/4 - 16	0.260	1.189	0.85	1.28	0.188	0.187	0.125	0.476	50 FT-LB
10-0708-16-PS	1 1/4 - 16	0.260	1.189	0.85	1.28	0.188	0.187	0.125	0.476	50 FT-LB
10-0710-10-PS	1 3/4 - 16	0.290	1.689	1.00	1.78	0.250	0.297	0.188	0.688	100 FT-LB

Model No.	Support Capacity (lb.)
10-0706-10-PS	2000
10-0706-16-PS	2000
10-0708-10-PS	4000
10-0708-16-PS	4000
10-0710-10-PS	8000

Model No.	Retaining Ring No.	Adapter No.	O-Ring Part Number	O-Ring Size	Max Weight	B	C	D	E	F	G	H	J	K	L
10-0706-10-PS	23-0100-07	81-0606-01	39-0510-59	0.236 X 0.059	0.25 lbs	0.402	0.125	0.025	0.020	0.002	0.1060	0.0015	0.0015	0.010	0.405
10-0706-16-PS	23-0100-07	81-0606-03	39-0000-69	0.301 X 0.064	0.25 lbs	0.402	0.125	0.025	0.020	0.002	0.1060	0.0015	0.0015	0.010	0.405
10-0708-10-PS	23-0100-08	81-0608-01	55-2500-05	0.301 X 0.070	0.27 lbs	0.502	0.156	0.025	0.020	0.002	0.1350	0.0015	0.0015	0.015	0.600
10-0708-16-PS	23-0100-08	81-0608-01	55-2500-05	0.301 X 0.070	0.27 lbs	0.502	0.156	0.025	0.020	0.002	0.1350	0.0015	0.0015	0.015	0.600
10-0710-10-PS	23-0100-06	81-0610-01	39-0511-76	0.472 X 0.079	0.45 lbs	0.720	0.250	0.030	0.029	0.003	0.220	0.002	0.002	0.020	0.685
