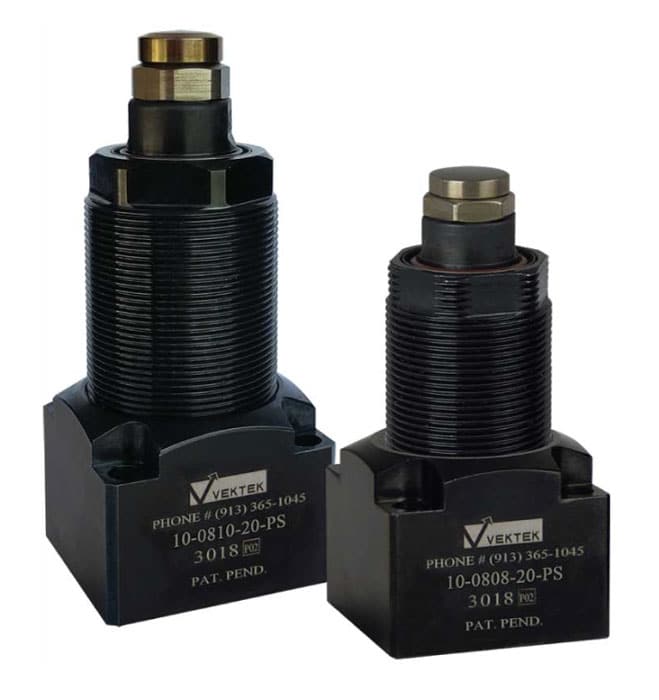

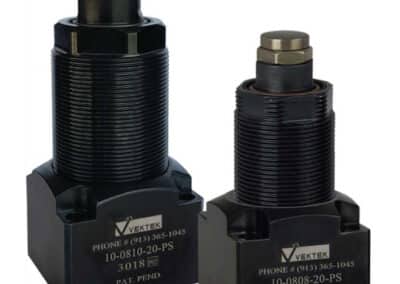

TuffGrip High Capacity Fluid Advance Part Present Sensing Base Inch Hydraulic Work Supports
Confirm part is present and contacted even on as-cast surfaces!

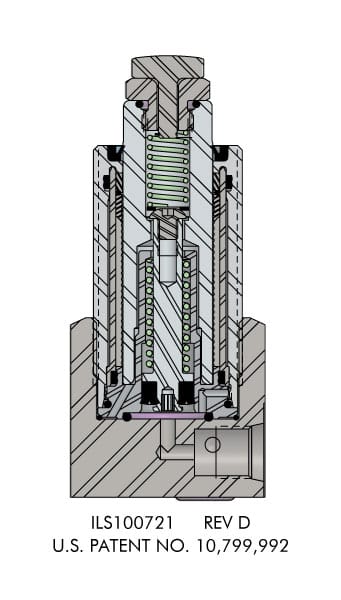

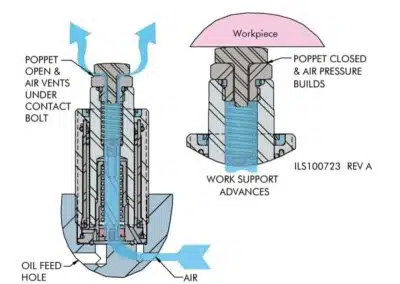

Plungers stay retracted during part loading while air flow travels through the work support. Hydraulic pressure advances the plunger exerting only spring force as it makes contact with the part. This closes the integral air valve to indicate part is present and contacted. Hydraulic pressure then automatically sequences, freezing the plunger.
- Available in 2,000, 4,000 and 8,000 lb. capacity.
- Once support is locked, air sensing positively confirms both contact and part present.

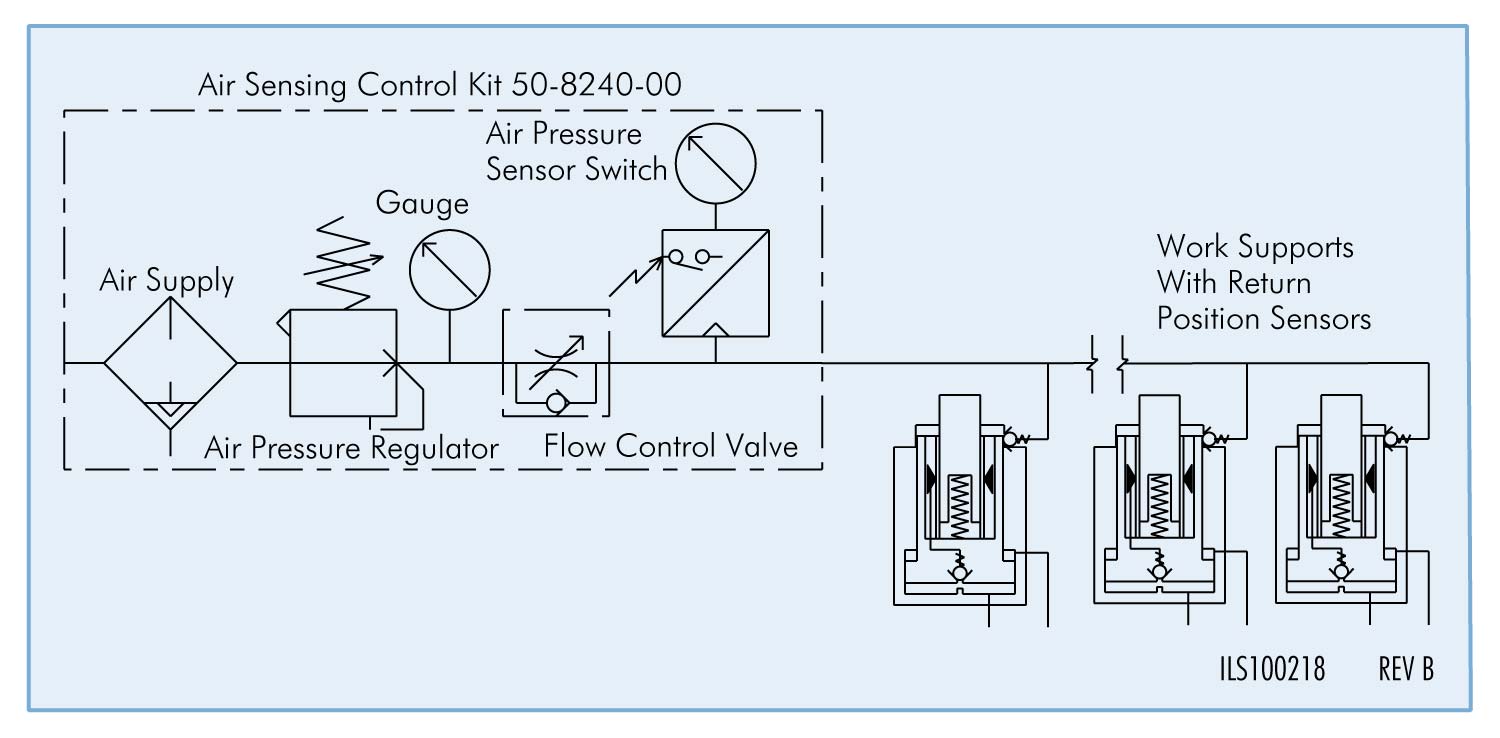

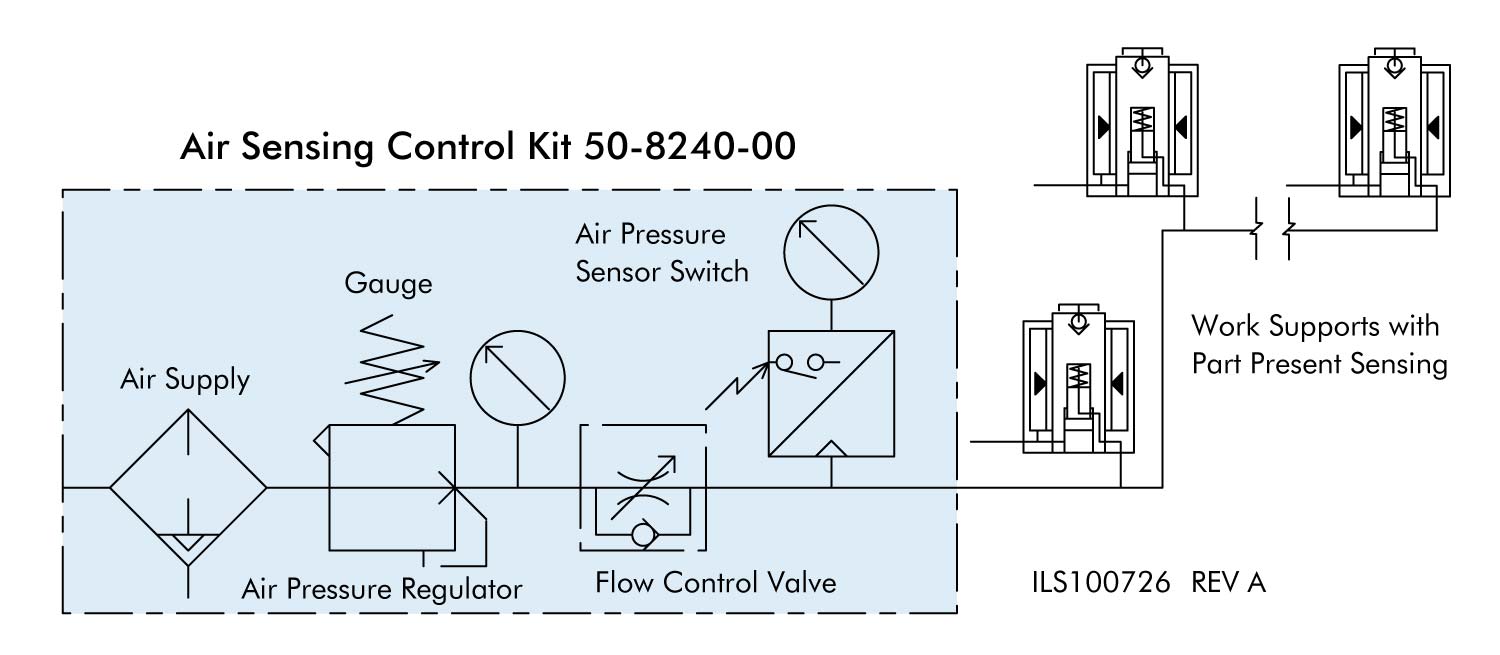

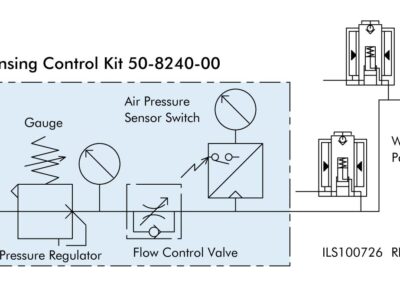

- Use Vektek’s Air Sensing Control Kit for easy setup.
- Four bolt base is compatible with In-port Flow Control and In The Port Sequence Valves.
- Uses Vektek’s BHC (Black Hard Coating) technology to guard against corrosion.
- O-Ring face seal design makes machining cavities easier.
- Max air operating pressure is 15 PSI.
Standard SAE porting and alternate 0-ring manifold face seal is located in the base of the support for bolt down installation. The base can be removed for direct cartridge mounting.

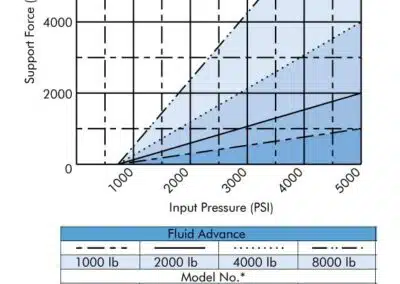

* Support capacities are listed at 5,000 psi maximum pressure. Support capacities for other pressures are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart tab.
** Restrict flow rate to a maximum of 130 cu. in./minute.
**** In-Port Valves require the use of manifold mount ports.
NOTE: The maximum system back-pressure a fluid advance work support can overcome is 10 psi. Returning back-pressure greater than 10 psi may cause slow or failed retraction.
For proper sealing, all mating surfaces should be flat within 0.003 inches, with a maximum surface roughness of 63 μ in. Ra. Hydraulic oil feed holes for manifold mounting Ø 0.09 to Ø 0.20 inches.

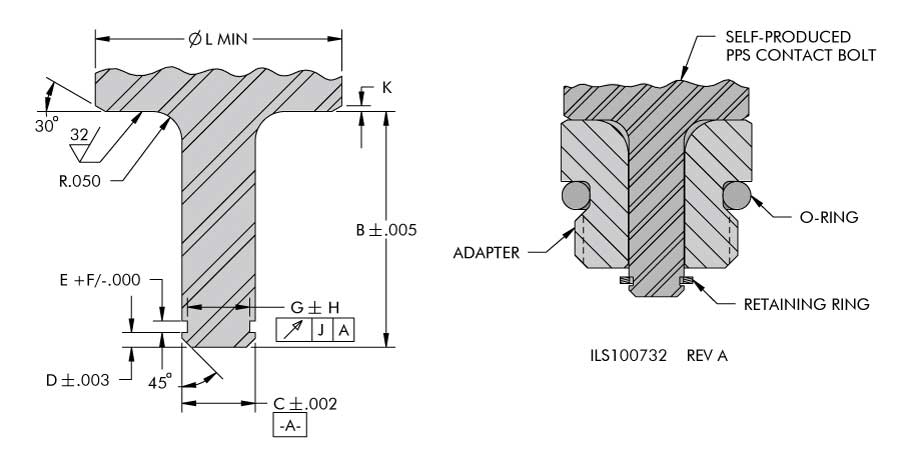

For Spherical Work Support Contact Bolt, click here.
*Retaining ring, adapter, and O-ring may be ordered as needed.
| Model No. | Support Capacity (lb.) | Contact Force (lb.) | Stroke (in.) | Base Dimension (in.) | Retracted Height (in.) | Oil Capacity (cu. in.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|
| 10-0806-20-PS | 2000 | 1-6 | 0.25 | 1.19 X 1.31 X 1.31 | 2.93 | 0.05 | SAE 4 X 0.58 |
| 10-0806-26-PS | 2000 | 1-6 | 0.50 | 1.19 X 1.31 X 1.31 | 3.43 | 0.07 | SAE 4 X 0.58 |
| 10-0808-20-PS | 4000 | 3-10 | 0.25 | 1.50 X 1.63 X 1.63 | 3.69 | 0.20 | SAE 4 X 0.58 |
| 10-0808-26-PS | 4000 | 3-10 | 0.50 | 1.50 X 1.63 X 1.63 | 4.19 | 0.23 | SAE 4 X 0.58 |
| 10-0810-20-PS | 8000 | 4-13 | 0.63 | 1.63 X 2.13 X 2.13 | 4.91 | 0.57 | SAE 4 X 0.750 |

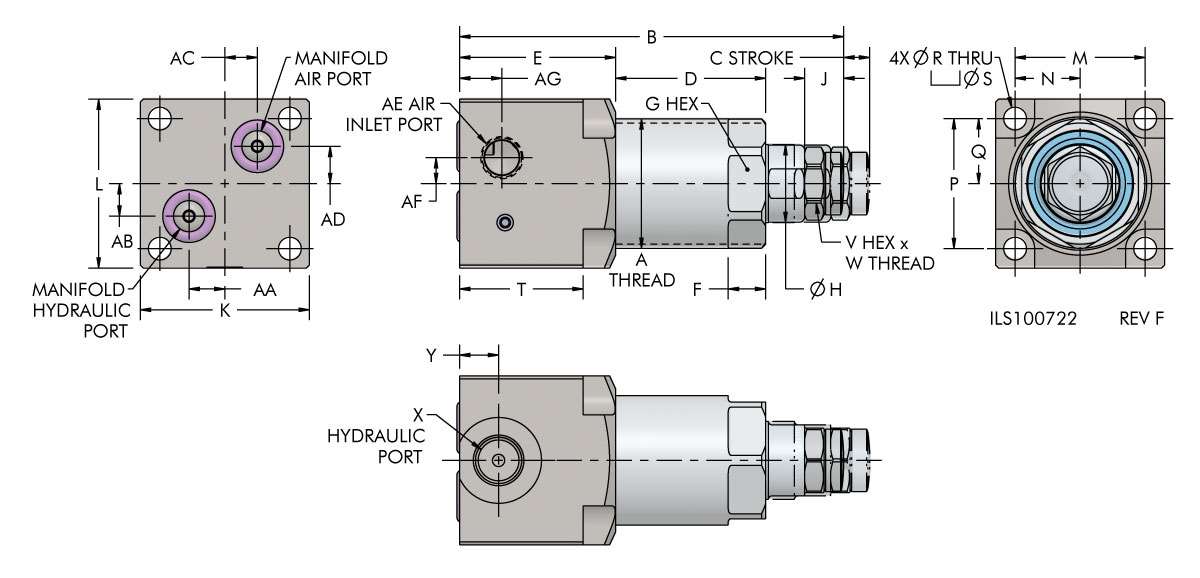

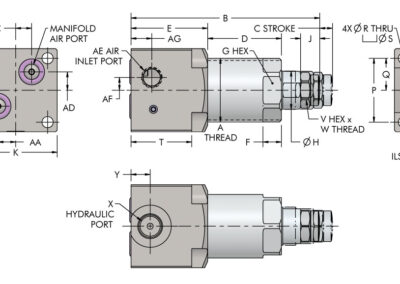

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | AA | AB | AC | AD | AE | AF | AG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-0806-20-PS | 1 - 16 | 2.93 | 0.25 | 1.19 | 1.19 | 0.21 | 0.88 | 0.56 | 0.28 | 1.31 | 1.31 | 1.00 | 0.50 | 1.00 | 0.50 | 0.19 | 0.30 | 0.94 | 0.43 | 5/16 - 18 X 0.20 | SAE 4 | 0.38 | 0.31 | 0.16 | 0.14 | 0.36 | 1/8 NPT | 0.16 | 0.38 |
| 10-0806-26-PS | 1 - 16 | 3.43 | 0.50 | 1.65 | 1.19 | 0.21 | 0.88 | 0.56 | 0.28 | 1.31 | 1.31 | 1.00 | 0.50 | 1.00 | 0.50 | 0.19 | 0.30 | 0.94 | 0.43 | 3/8 - 24 X 0.20 | SAE 4 | 0.38 | 0.31 | 0.16 | 0.14 | 0.36 | 1/8 NPT | 0.16 | 0.38 |
| 10-0808-20-PS | 1 1/4 - 16 | 3.69 | 0.25 | 1.44 | 1.50 | 0.36 | 1.13 | 0.75 | 0.38 | 1.63 | 1.63 | 1.25 | 0.63 | 1.25 | 0.63 | 0.22 | 0.38 | 1.19 | 0.62 | 7/16 - 14 X 0.25 | SAE 4 | 0.38 | 0.34 | 0.31 | 0.31 | 0.36 | 1/8 NPT | 0.25 | 0.41 |
| 10-0808-26-PS | 1 1/4 - 16 | 4.19 | 0.50 | 1.83 | 1.50 | 0.36 | 1.13 | 0.75 | 0.38 | 1.63 | 1.63 | 1.25 | 0.63 | 1.25 | 0.63 | 0.22 | 0.38 | 1.19 | 0.62 | 7/16 - 14 X 0.25 | SAE 4 | 0.38 | 0.34 | 0.31 | 0.31 | 0.36 | 1/8 NPT | 0.25 | 0.41 |
| 10-0810-20-PS | 1 3/4 - 16 | 4.91 | 0.63 | 2.22 | 1.63 | 0.40 | 1.50 | 1.00 | 0.59 | 2.13 | 2.13 | 1.69 | 0.84 | 1.69 | 0.84 | 0.28 | 0.44 | 1.25 | 0.81 | 5/8 - 11 X 0.31 | SAE 4 | 0.38 | 0.31 | 0.56 | 0.63 | 0.19 | 1/8 NPT | 0.19 | 0.41 |
| Model No. | Support Capacity (lb.) |
|---|---|
| 10-0806-20-PS | 2000 |
| 10-0806-26-PS | 2000 |
| 10-0808-20-PS | 4000 |
| 10-0808-26-PS | 4000 |
| 10-0810-20-PS | 8000 |

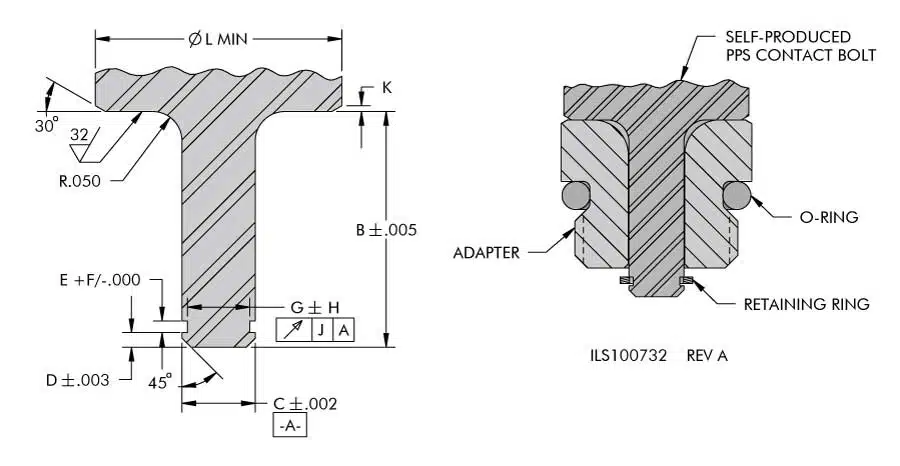

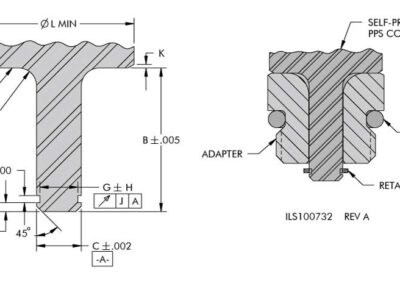

| Model No. | Retaining Ring No. | Adapter No. | O-Ring Part Number | O-Ring Size | Max Weight | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-0806-20-PS | 23-0100-07 | 81-0606-01 | 39-0510-59 | 0.236 X 0.059 | 0.25 lbs | 0.402 | 0.125 | 0.025 | 0.020 | 0.002 | 0.1060 | 0.0015 | 0.0015 | 0.010 | 0.405 |
| 10-0806-26-PS | 23-0100-07 | 81-0606-03 | 39-0000-69 | 0.301 X 0.064 | 0.25 lbs | 0.402 | 0.125 | 0.025 | 0.020 | 0.002 | 0.1060 | 0.0015 | 0.0015 | 0.010 | 0.405 |
| 10-0808-20-PS | 23-0100-08 | 81-0608-01 | 55-2500-05 | 0.301 X 0.070 | 0.27 lbs | 0.502 | 0.156 | 0.025 | 0.020 | 0.002 | 0.1350 | 0.0015 | 0.0015 | 0.015 | 0.600 |
| 10-0808-26-PS | 23-0100-08 | 81-0608-01 | 55-2500-05 | 0.301 X 0.070 | 0.27 lbs | 0.502 | 0.156 | 0.025 | 0.020 | 0.002 | 0.1350 | 0.0015 | 0.0015 | 0.015 | 0.600 |
| 10-0810-20-PS | 23-0100-06 | 81-0610-01 | 39-0511-76 | 0.472 X 0.079 | 0.45 lbs | 0.720 | 0.250 | 0.030 | 0.029 | 0.003 | 0.220 | 0.002 | 0.002 | 0.020 | 0.685 |
