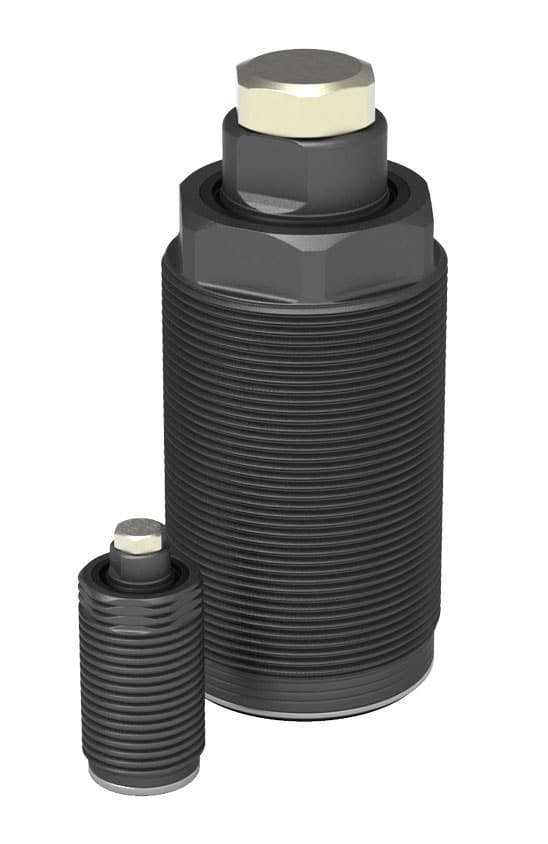

TuffGrip High Capacity Fluid Advance Cartridge Inch Hydraulic Work Supports
Plungers stay retracted during part loading. Hydraulic pressure advances the plunger exerting only spring force as it makes contact with the part. Hydraulic pressure then automatically sequences, freezing the plunger, to properly support the part.
- Available in 1,000, 2000, 4000 and 8,000 lb. capacity.
- Order with base or cartridge only.
- Ventless configuration and built in wipers protect the plunger movement from chips and debris.
- Four bolt base is compatible with Vektek In-Port Flow Control and In-Port Sequence Valves.
- Uses Vektek’s BHC (Black Hard Coating) technology to guard against corrosion.
- O-ring face seal design makes machining cavities easier.
- US Patent No. 10,799,992.
Cartridge Checklist
- Confirm capacity of item selected.
- Note the sealing surface finish requirements.
- Minimum depth specification represents the nominal depth of the standard Vektek base dimension.
- Confirm cavity drawing is appropriate for the model number used.
- Note specified thread depth when cutting threads.
- When using a bottoming tap tool, modifications may be required.
- When hand tapping threads, perpendicularity is essential.
* Support capacities are listed at 5,000 psi maximum pressure. Support capacities for other pressures are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart tab.
** Restrict flow rate to a maximum of 130 cu. in./minute.
*** For cartridge mount models, see cavity dimensions tab.
**** In-Port Valves require the use of manifold mount ports.
** Restrict flow rate to a maximum of 130 cu. in./minute.
*** For cartridge mount models, see cavity dimensions tab.
**** In-Port Valves require the use of manifold mount ports.
NOTE: The maximum system back-pressure a fluid advance work support can overcome is 10 psi. Returning back-pressure greater than 10 psi may cause slow or failed retraction.
* Inner o-ring and optional outer seal are both supplied with the assembly.
Use inner o-ring or outer seal but not both.
The inner o-ring seal is the preferred option.
For Spherical Work Support Contact Bolt, click here.
| Model No. | Support Capacity (lb.) | Mounting Style | Contact Force (lb.) | Stroke (in.) | Retracted Height (in.) | Oil Capacity (cu. in.) |
|---|---|---|---|---|---|---|
| 10-0704-10 | 1000 | Cartridge | 0.5-4 | 0.25 | 1.63 | 0.03 |
| 10-0706-10 | 2000 | Cartridge | 1-6 | 0.25 | 2.14 | 0.05 |
| 10-0706-16 | 2000 | Cartridge | 1-6 | 0.50 | 2.64 | 0.07 |
| 10-0708-10 | 4000 | Cartridge | 3-10 | 0.25 | 2.85 | 0.12 |
| 10-0708-16 | 4000 | Cartridge | 3-10 | 0.50 | 3.35 | 0.15 |
| 10-0710-10 | 8000 | Cartridge | 4-13 | 0.625 | 4.00 | 0.57 |

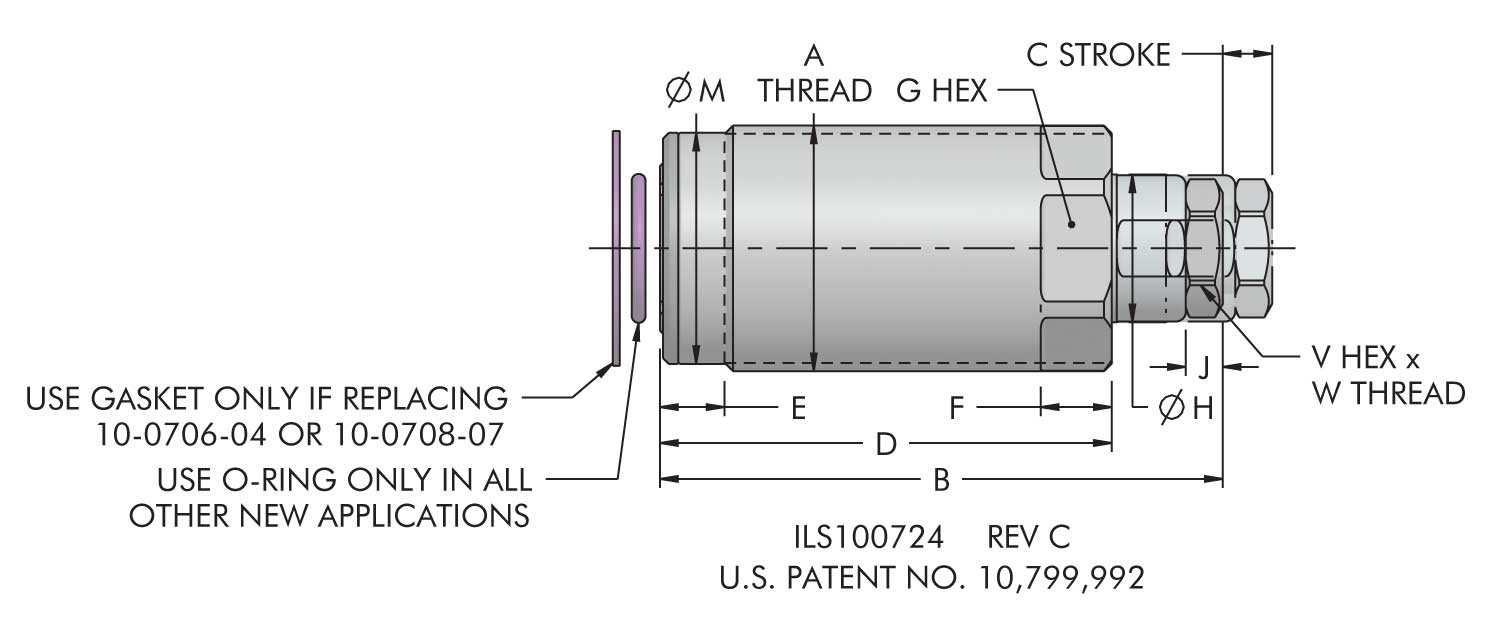

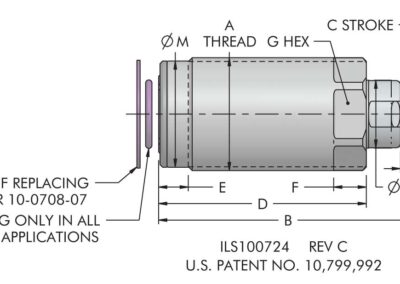

| Model No. | A | B | C | D | E | F | G | H | J | M | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-0704-10 | 3/4 - 16 | 1.63 | 0.25 | 1.32 | 0.13 | 0.21 | 0.69 | 0.38 | 0.11 | 0.68 | 0.28 | 1/4 - 20 X 0.14 |
| 10-0706-10 | 1 - 16 | 2.14 | 0.25 | 1.72 | 0.24 | 0.21 | 0.88 | 0.56 | 0.14 | 0.92 | 0.50 | 5/16 - 18 X 0.20 |
| 10-0706-16 | 1 - 16 | 2.64 | 0.50 | 2.18 | 0.24 | 0.21 | 0.88 | 0.56 | 0.14 | 0.92 | 0.50 | 3/8 - 24 x 0.20 |
| 10-0708-10 | 1 1/4 - 16 | 2.85 | 0.25 | 2.29 | 0.33 | 0.36 | 1.13 | 0.75 | 0.19 | 1.17 | 0.63 | 7/16 - 14 X 0.25 |
| 10-0708-16 | 1 1/4 - 16 | 3.35 | 0.50 | 2.67 | 0.33 | 0.36 | 1.13 | 0.75 | 0.19 | 1.17 | 0.63 | 7/16 - 14 X 0.25 |
| 10-0710-10 | 1 3/4 - 16 | 4.00 | 0.63 | 3.22 | 0.33 | 0.40 | 1.50 | 1.00 | 0.31 | 1.67 | 0.81 | 5/8 - 11 X 0.31 |

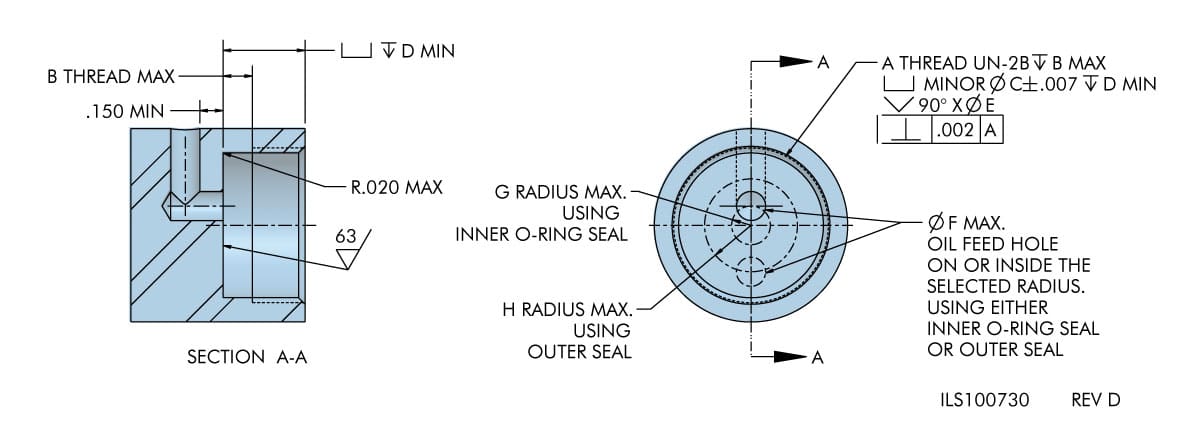

| Model No. | A | B | C | D | E | F | G | H | Installation Torque |
|---|---|---|---|---|---|---|---|---|---|
| 10-0704-10 | 3/4 - 16 | 0.105 | 0.689 | 0.38 | 0.77 | 0.125 | 0.078 | N/A | 20 FT-LB - Inner Seal / N/A - Outer Seal |
| 10-0706-10 | 1 - 16 | 0.170 | 0.939 | 0.53 | 1.03 | 0.188 | 0.125 | 0.250 | 35 FT-LB - Inner Seal / 30 FT-LB - Outer Seal |
| 10-0706-16 | 1 - 16 | 0.170 | 0.939 | 0.53 | 1.03 | 0.188 | 0.125 | 0.250 | 35 FT-LB - Inner Seal / 30 FT-LB - Outer Seal |
| 10-0708-10 | 1 1/4 - 16 | 0.260 | 1.189 | 0.85 | 1.28 | 0.188 | 0.187 | 0.380 | 50 FT-LB - Inner Seal / 40 FT-LB - Outer Seal |
| 10-0708-16 | 1 1/4 - 16 | 0.260 | 1.189 | 0.85 | 1.28 | 0.188 | 0.187 | 0.380 | 50 FT-LB - Inner Seal / 40 FT-LB - Outer Seal |
| 10-0710-10 | 1 3/4 - 16 | 0.290 | 1.689 | 1.00 | 1.78 | 0.250 | 0.297 | N/A | 100 FT-LB - Inner Seal / N/A - Outer Seal |
| Model No. | Support Capacity (lb.) |
|---|---|
| 10-0704-10 | 1000 |
| 10-0706-10 | 2000 |
| 10-0706-16 | 2000 |
| 10-0708-10 | 4000 |
| 10-0708-16 | 4000 |
| 10-0710-10 | 8000 |
| Model No. | Support Capacity (lb.) | O-Ring Part Number | O-Ring Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|
| 10-0704-10 | 1000 | 39-0511-72 | 0.185 x 0.039 | .297 | 0.141 | 0.187 | 0.040 | 1/4 - 20 UNC 2A |
| 10-0706-10 | 2000 | 39-0510-59 | 0.236 X 0.059 | 0.384 | 0.197 | 0.238 | 0.047 | 5/16 - 18 UNC-2A |
| 10-0706-16 | 2000 | 39-0000-69 | 0.301 X 0.064 | 0.450 | 0.197 | 0.302 | 0.047 | 3/8 - 24 UNF-2A |
| 10-0708-10 | 4000 | 55-2500-05 | 0.301 X 0.070 | 0.493 | 0.250 | 0.328 | 0.070 | 7/16 - 14 UNC-2A |
| 10-0708-16 | 4000 | 55-2500-05 | 0.301 X 0.070 | 0.493 | 0.250 | 0.328 | 0.070 | 7/16 - 14 UNC-2A |
| 10-0710-10 | 8000 | 39-0511-76 | 0.472 X 0.079 | 0.681 | 0.313 | 0.508 | 0.080 | 5/8 - 11 UNC-2A |
