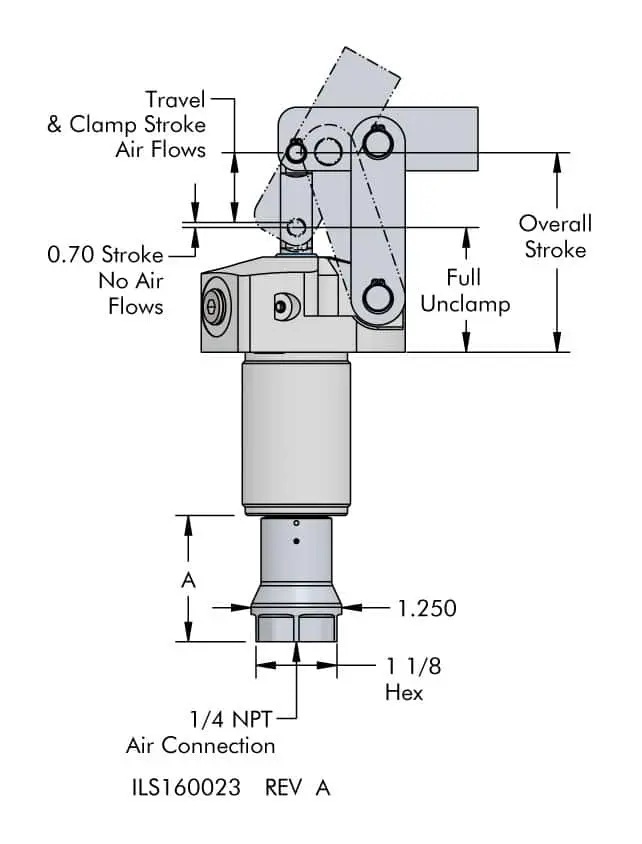

Pneumatic Position Sensing High Pressure Link Clamps

Link Clamps

The pneumatic sensing link clamps use air pressure to provide unclamp position feedback to machine systems. Once unclamped, air pressure will build up to the set point.

• Maximum operating pressure of 30 psi of air.
• Unclamp confirmation.
• Up to four pneumatic position sensing clamps per circuit.
• Use with Vektek’s Air Sensing Control Kit 50-8240-00.
• All dimensions identical to High Pressure Link Clamps with the exception
  of the listed dimensions.
• Estimated air flow of 0.15 CFM consumed.
