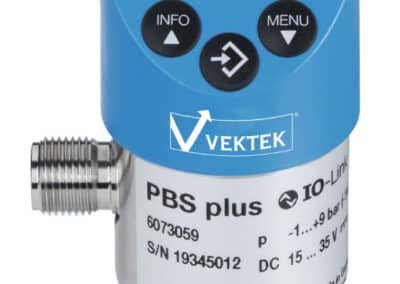

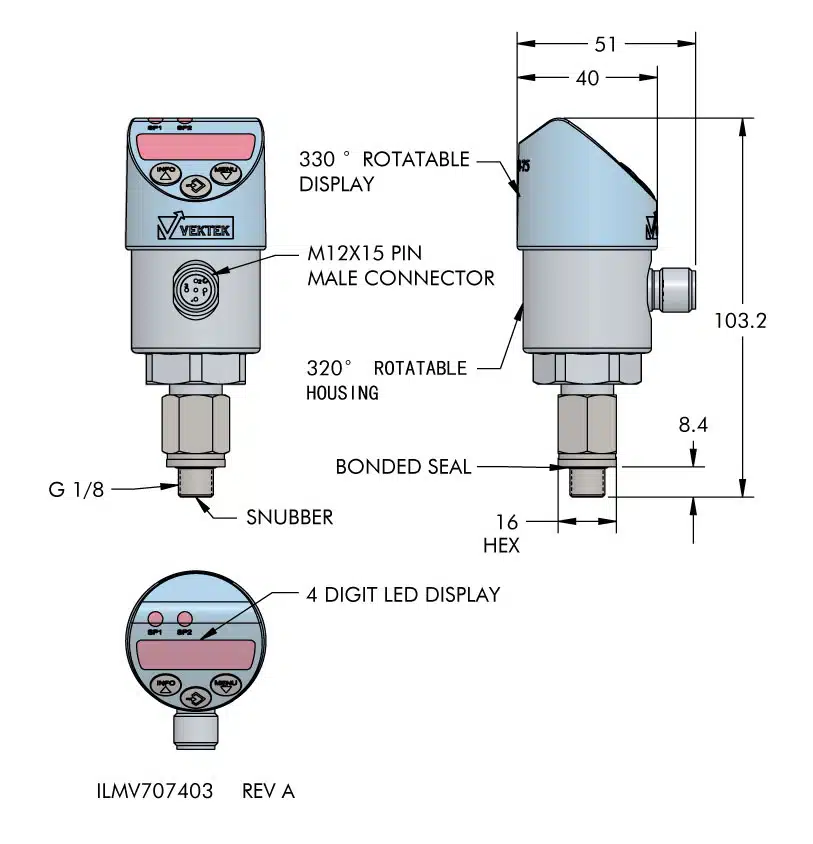

Powered LED Display Electronic Pressure Switch
Metric Confirmation and Feedback
- Large 4 digit LED pressure display.
- Requires power (15-32 VDC), not functional unpowered.
- Programmable deadband.
- Easy 3-Button programmable electronic pressure switch.
- 2 digital switching outputs, 500 mA Rating, PNP only.
- Single analog output, 0-10 V or 4-20 mA.
- Set pressure range of 0-413 Bar.
- Programmable reset pressure for each output.
- Environmental rating of IP 67.

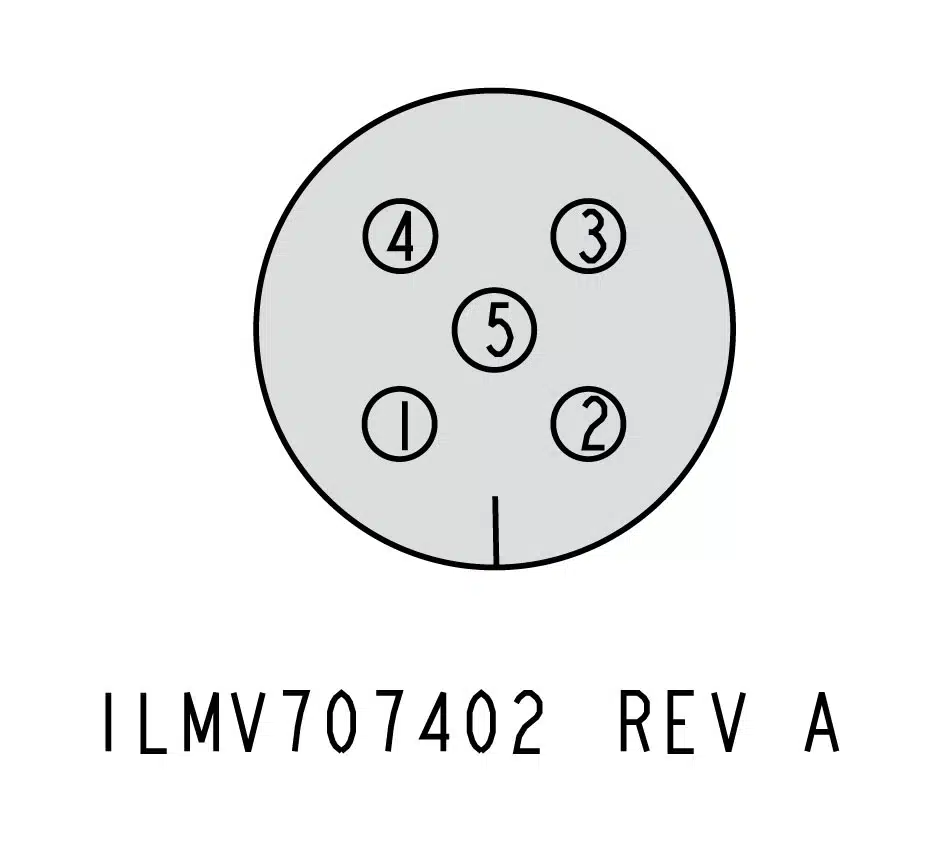

Electronic Pressure Switch Pin Out Table
| Plug Pin | Input/Output |
| Pin 1, Brown | +15 – 32 VDC |
| Pin 2, White | Analog |
| Pin 3, Blue | 0 V |
| Pin 4, Black | SP1 0.5 A Max |
| Pin 5, Gray | SP2 0.5 A Max |
| Model No. | Pressure Range | Electrical Connection | Power Supply | Power Consumption | 2 Digital Contacts | 1 Analog Output | Media Temp. Range |
|---|---|---|---|---|---|---|---|
| 47-0740-75 | 0 - 400 Bar | M12 Male 5 Pin | 15 - 35 VDC | 45 mA | Programmable N/O or N/C | Programmable 0-10 V or 4-20 mA | -20 to +80° C |
