TuffCam Low Profile Magnetic Position Sensing Inch Hydraulic Swing Clamps

Magnetic Position Sensing Swing Clamps

Catalog Section

  • Available for use on both 5000 and 7500 lbs Double Acting TuffCam™ Low Profile Swing Clamps.
  • Sensors sold separately.
  • Sensor mounting housing is concentric to plunger shaft.
  • For use with Double Acting clamps only.
  • TuffCam™ Arm Clocking feature is compatible with all standard Vektek arms.
  • Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
  • Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.

NOTE: For dimensions, force, stroke, etc., please reference Standard Low Profile pages as Position Sensing Cylinders share all specs but the position sensing feature.

TuffCam™ Swing Clamp Low Profile Magnetic Position Sensing

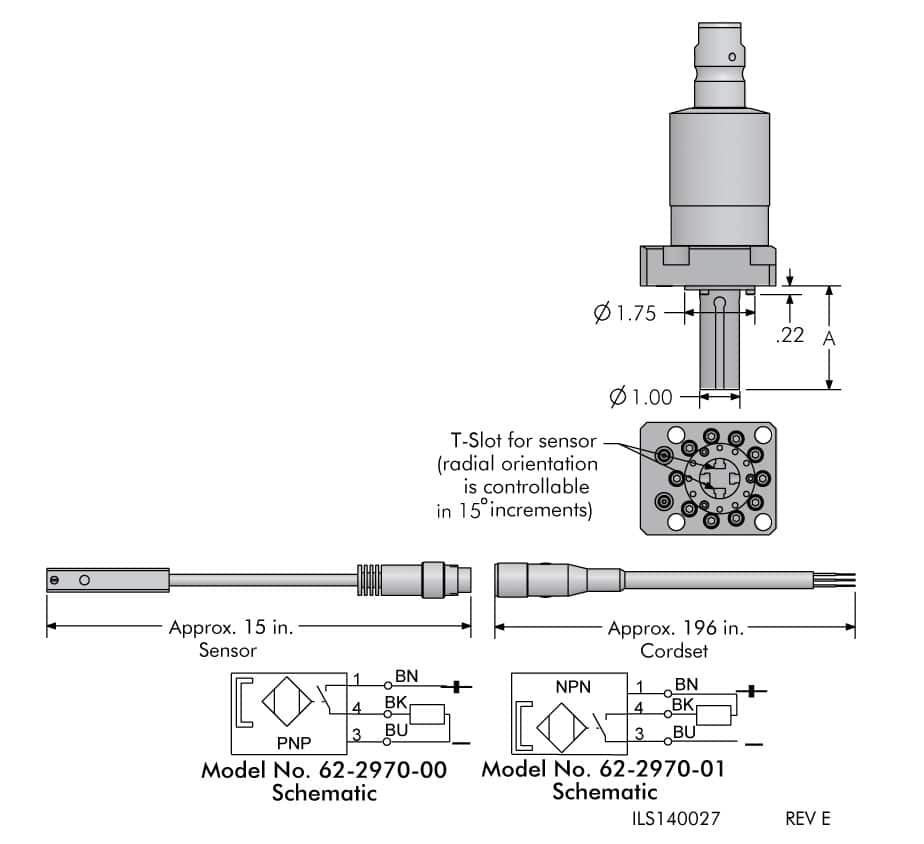

ils140027

* In-Port Valves require the use of manifold mount ports.

SENSOR KITS

  • 62-2970-00 PNP Position Sensing Kit includes 29-7001-00 Sensor and 27-6424-00 Cordset
  • 62-2970-01 NPN Position Sensing Kit includes 29-7001-01 Sensor and 27-6424-00 Cordset

The use of NPN or PNP is determined by the type of control unit to which the sensor is connected. One sensor is required for each sensing position.

SENSOR FEATURES

  • Normally open contact
  • LED indicator light
  • 10 to 30 VDC operating range
  • 3 Watt maximum contact rating
  • < or = 0.8 ms Switch-off time
  • > or = 1.0 ms Switch-on time
Top Flange Double Acting Position Sensing Work Supports - Dimensions
Model No.Mounting StyleSwing DirectionClamp Capacity (lb.)APort X For Optional In-Port Valves
14-2221-00-PSLow Profile Bottom FlangeRight75002.58SAE 4 X 0.75
14-2221-01-PSLow Profile Bottom FlangeLeft75002.58SAE 4 X 0.75
14-2221-02-PSLow Profile Bottom FlangeStraight75002.58SAE 4 X 0.75
14-2818-00-PSLow Profile Bottom FlangeRight50002.58SAE 4 X 0.75
14-2818-01-PSLow Profile Bottom FlangeLeft50002.58SAE 4 X 0.75
14-2818-02-PSLow Profile Bottom FlangeStraight50002.58SAE 4 X 0.75
Model No.Mounting StyleSwing DirectionClamp Capacity (lb.)APort X For Optional In-Port Valves
14-2221-03-PSLow Profile Bottom FlangeRight75003.20SAE 4 X 0.75
14-2221-04-PSLow Profile Bottom FlangeLeft75003.20SAE 4 X 0.75
14-2221-05-PSLow Profile Bottom FlangeStraight75003.20SAE 4 X 0.75
14-2818-03-PSLow Profile Bottom FlangeRight50003.20SAE 4 X 0.75
14-2818-04-PSLow Profile Bottom FlangeLeft50003.20SAE 4 X 0.75
14-2818-05-PSLow Profile Bottom FlangeStraight50003.20SAE 4 X 0.75
Model No.Mounting StyleSwing DirectionClamp Capacity (lb.)APort X For Optional In-Port Valves
14-0618-00-PSLow Profile Top FlangeRight50002.58SAE 4 X 0.75
14-0618-01-PSLow Profile Top FlangeLeft50002.58SAE 4 X 0.75
14-0618-02-PSLow Profile Top FlangeStraight50002.58SAE 4 X 0.75
14-0621-00-PSLow Profile Top FlangeRight75002.58SAE 4 X 0.75
14-0621-01-PSLow Profile Top FlangeLeft75002.58SAE 4 X 0.75
14-0621-02-PSLow Profile Top FlangeStraight75002.58SAE 4 X 0.75
Model No.Mounting StyleSwing DirectionClamp Capacity (lb.)APort X For Optional In-Port Valves
14-0618-03-PSLow Profile Top FlangeRight50003.20SAE 4 X 0.75
14-0618-04-PSLow Profile Top FlangeLeft50003.20SAE 4 X 0.75
14-0618-05-PSLow Profile Top FlangeStraight50003.20SAE 4 X 0.75
14-0621-03-PSLow Profile Top FlangeRight75003.20SAE 4 X 0.75
14-0621-04-PSLow Profile Top FlangeLeft75003.20SAE 4 X 0.75
14-0621-05-PSLow Profile Top FlangeStraight75003.20SAE 4 X 0.75
Model No.Position Sensing
62-2970-00PNP Position Sensing Kit
62-2970-01NPN Position Sensing Kit
