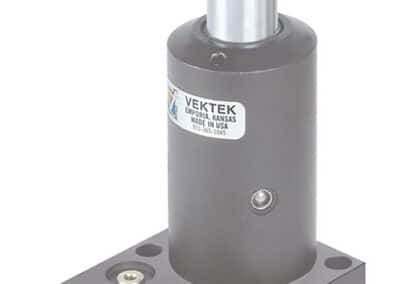

Precision In-Port Flow Control
Flow Control
Consult the double acting work support, the swing clamp or link clamp specifications page for the valve that is appropriate for your application.
- Flow control requires Use of manifoldmount ports.
- Intergral reverse free flow check valve.
- For use with single or double acting swing or link clamps and double acting work supports in the clamp port.
Note: Max flow not to exceed the individual device rating or 1.0 gpm whichever is lower.
| Model No. | Port Type |
|---|---|
| 70-2037-70 | SAE 2 X 0.48 |
| 70-2037-74 | SAE 4 X 0.58 |
| 70-2037-75 | SAE 4 X 0.75 |
| Model No. | A | B | C | E |
|---|---|---|---|---|
| 70-2037-70 | 0.73 | 0.44 | 0.36 | 0.48 |
| 70-2037-74 | 0.74 | 0.63 | .037 | 0.69 |
| 70-2037-75 | 0.74 | 0.63 | 0.37 | 0.69 |
| Model No. | Port Type | A | B | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 70-2037-70 | SAE 2 X 0.48 | 0.272 | 0.480 | 0.360 | 0.082 | 0.682 | 5/16 - 24 UNF | 0.320 | 0.219 | 0.350 | 0.219 |
| 70-2037-74 | SAE 4 X 0.58 | 0.392 | 0.580 | 0.490 | 0.101 | 0.750 | 7/16 - 20 UNF | 0.400 | 0.281 | 0.488 | 0.313 |
| 70-2037-75 | SAE 4 X 0.75 | 0.392 | 0.750 | 0.490 | 0.101 | 0.750 | 7/16 - 20 UNF | 0.400 | 0.281 | 0.658 | 0.313 |
