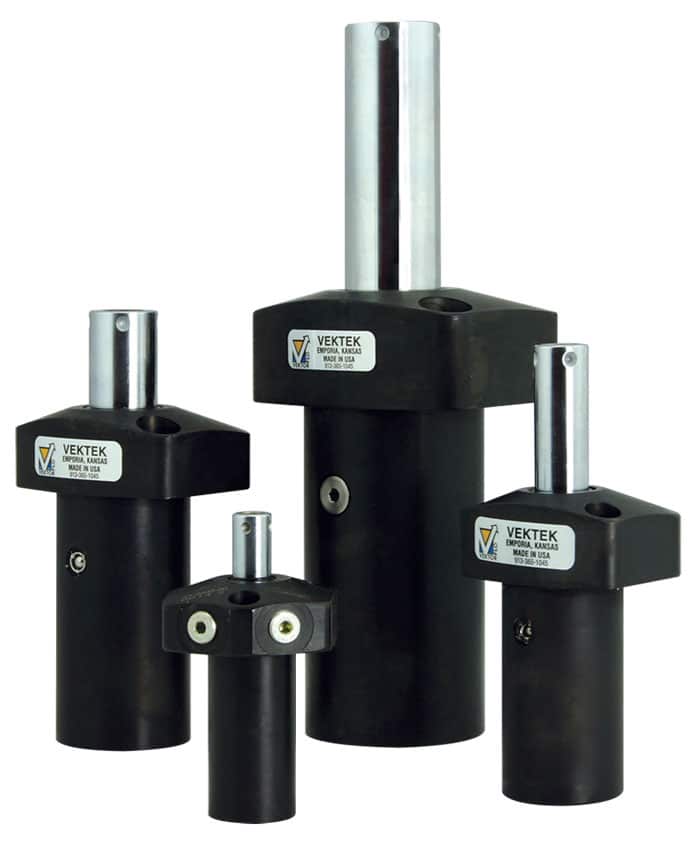

Top Flange Manifold Push Pull Cylinder

Single And Double Acting

Tapered top flange is designed to keep chips and coolants away from the internal working cylinder parts.
Bolt into place and plumb, or to eliminate the external plumbing, follow the easy-to-make manifold pattern.
Use standard SAE fittings to plumb.
Single piece body and mounting give a rigid installation, no additional mounting hardware to purchase or install.
Manifold fitting 30-8711-20, adapter assembly and plugs are included and shipped with the clamp.
Also available in a straight line guided model, order as swing clamp.
Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
Optional In-Port Sequence Valve is a sequencing device with reverse free flow check valve.

Low install clamping height can be adjusted to fit your part with easy-to-make risers. Standard SAE and manifold plumbing options are built into each unit.

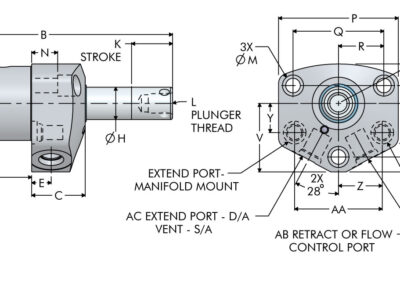

Top Flange/Manifold Push/Pull Cylinder Mounting

** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine approximate output force for your application, multiply the piston area by your system operating pressure. (Actual force may vary slightly due to friction loss, seal and wiper drag and/or return springs.)
*** In-Port Valves require the use of manifold mount ports.

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

Model No.	Clamp Capacity (lb.) Extend	Clamp Capacity (lb.) Retract	Stroke (in.)	Piston Area (sq. in.) Extend	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Port X For Optional In-Port Valves
25-6105-00	N/A	470	0.57	N/A	0.098	N/A	0.056	SAE 2 X 0.48
25-6109-00	N/A	1400	0.79	N/A	0.295	N/A	0.233	SAE 4 X 0.58
25-6113-00	N/A	3100	1.16	N/A	0.626	N/A	0.726	SAE 4 X 0.58
25-6118-00	N/A	5600	1.66	N/A	1.178	N/A	1.955	SAE 4 X 0.75

Model No.	Clamp Capacity (lb.) Extend	Clamp Capacity (lb.) Retract	Stroke (in.)	Piston Area (sq. in.) Extend	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Port X For Optional In-Port Valves
25-6205-00	1200	470	0.57	0.249	0.098	0.142	0.056	SAE 2 X 0.48
25-6209-00	3000	1400	0.79	0.601	0.295	0.475	0.233	SAE 4 X 0.58
25-6213-00	6100	3100	1.16	1.227	0.626	1.423	0.726	SAE 4 X 0.58
25-6218-00	12000	5600	1.66	2.405	1.178	3.992	1.955	SAE 4 X 0.75

Model No.	A	B	C	D	E	H	K	L	M	N	P	Q	R	S	T	V	W	X	Y	Z	AA	AB	AC
25-6105-00	0.99	4.02	0.75	2.02	0.31	0.437	0.57	1/4 - 28 X 0.28	0.22	0.31	1.88	1.38	0.69	0.96	1.58	1.02	0.80	0.22	0.44	0.63	1.25	SAE 2	SAE 2
25-6109-00	1.43	5.32	1.03	2.60	0.38	0.625	0.79	3/8-24 x 0.47	0.28	0.50	2.31	1.75	0.88	1.24	2.06	1.32	1.03	0.34	0.56	0.84	1.69	SAE 4	SAE 4
25-6113-00	1.74	6.82	1.06	3.35	0.41	0.875	1.16	1/2-20 X 0.52	0.34	0.41	2.69	2.00	1.00	1.53	2.53	1.63	1.25	0.44	0.53	1.05	2.09	SAE 4	SAE 4
25-6118-00	2.37	9.31	1.47	4.43	0.54	1.250	1.66	5/8 - 18 X 0.75	0.41	0.75	3.61	2.73	1.37	2.05	3.34	2.13	1.72	0.60	0.75	1.41	2.81	SAE 4	SAE 4

Model No.	A	B	C	D	E	H	K	L	M	N	P	Q	R	S	T	V	W	X	Y	Z	AA	AB	AC
25-6205-00	0.99	4.02	0.75	2.02	0.31	0.437	0.57	1/4 - 28 X 0.28	0.22	0.31	1.88	1.38	0.69	0.96	1.58	1.02	0.80	0.22	0.44	0.63	1.25	SAE 2	SAE 2
25-6209-00	1.43	5.32	1.03	2.60	0.38	0.625	0.79	3/8-24 X 0.47	0.28	0.50	2.31	1.75	0.88	1.24	2.06	1.32	1.03	0.34	0.56	0.84	1.69	SAE 4	SAE 4
25-6213-00	1.74	6.82	1.06	3.35	0.41	0.875	1.16	1/2-20 X 0.52	0.34	0.41	2.69	2.00	1.00	1.53	2.53	1.63	1.25	0.44	0.53	1.05	2.09	SAE 4	SAE 4
25-6218-00	2.37	9.31	1.47	4.43	0.54	1.250	1.66	5/8 - 18 X 0.75	0.41	0.75	3.61	2.73	1.37	2.05	3.34	2.13	1.72	0.60	0.75	1.41	2.81	SAE 4	SAE 4
