Basic Filter
Filters and Contaminant Protection
- Keeps chips and debris from reaching valves or other sensitive devices.
- Traps contaminants which may have been missed when cleaning tubing or blind holes prior to fixture startup.
- Easily cleaned or changed filter should be checked when devices become sluggish.
| Gal/Min | 25 Micron | 10 Micron |
| 1 | 2 | 2.2 |
| 2 | 7 | 7.7 |
| 3 | 10 | 11 |
| 4 | 15 | 16.5 |
| 5 | 20 | 22 |
| 6 | 26 | 28.6 |
| 7 | 33 | 36.3 |
Screen replacement kits available. Call factory for details.

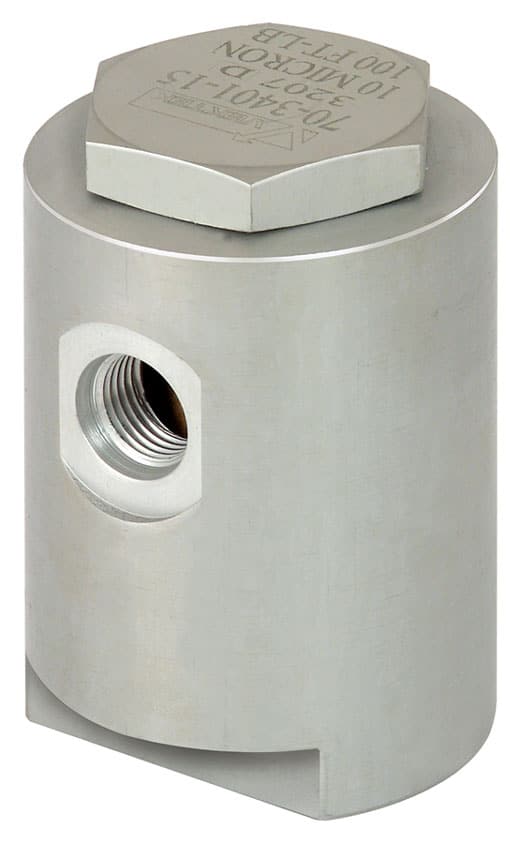

| Model No. | Filtration |
|---|---|
| 70-3401-12 | 25 Micron |
| 70-3401-15 | 10 Micron |
