In-Line Filter Screens
Filters and Contaminant Protection
- Protect devices and individual valves.
- Catches damage causing chips.
- Can be used in in-port applications.

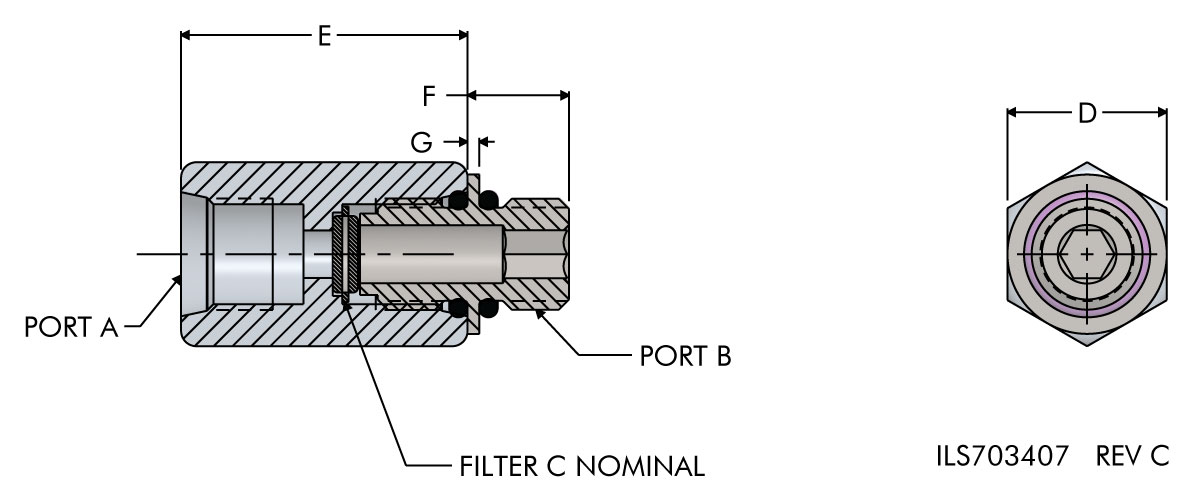

| Model No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 70-0407-10 | SAE 6 | SAE6 | 25 Micron | 1.12 | 1.50 | 0.50 | 0.11 |
| 70-3405-44 | SAE 4 | SAE 4 | 180 Micron | 0.63 | 1.12 | 0.40 | 0.05 |
| 70-3405-66 | SAE 6 | SAE 6 | 180 Micron | 0.75 | 1.13 | 0.45 | 0.06 |
