Single Valve Subplates

Directional Control Valves

Catalog Section

NFPA D03

  • Contains all plumbing connections for P, T, A and B connections.
  • Simplifies at the fixture valve mounting for 1, 2 or 4 valve plumbing.
  • Makes valve changes simple, just remove four cap screws to change valves.
  • All VektorFlo® valves fit the DO3 pattern except panel mount model.
Directional Control Valves | Single Valve Subplates NFPA D03
Directional Control Valves | Single Valve Subplates NFPA D03

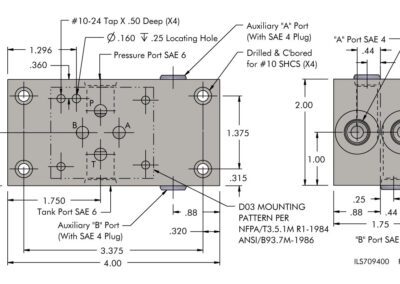

Dimensions Single Valve Subplates NFPA D03 Dimensions

For use with the following valves:
2-Position 3-Port Valve Manual, Model No. 71-1422-02
2-Position 3-Port Valves Solenoid Model Nos. 71-1122-54, 71-1122-13, 71-1150-03, 71-1150-05
3-Position 4-Port Valves Manual Model Nos. 71-1472-00, 71-1474-00
3-Position 4-Port Valves Solenoid Model Nos. 71-1235-21, 71-1235-22, 71-1235-40, 71-1235-41

Model No.Description

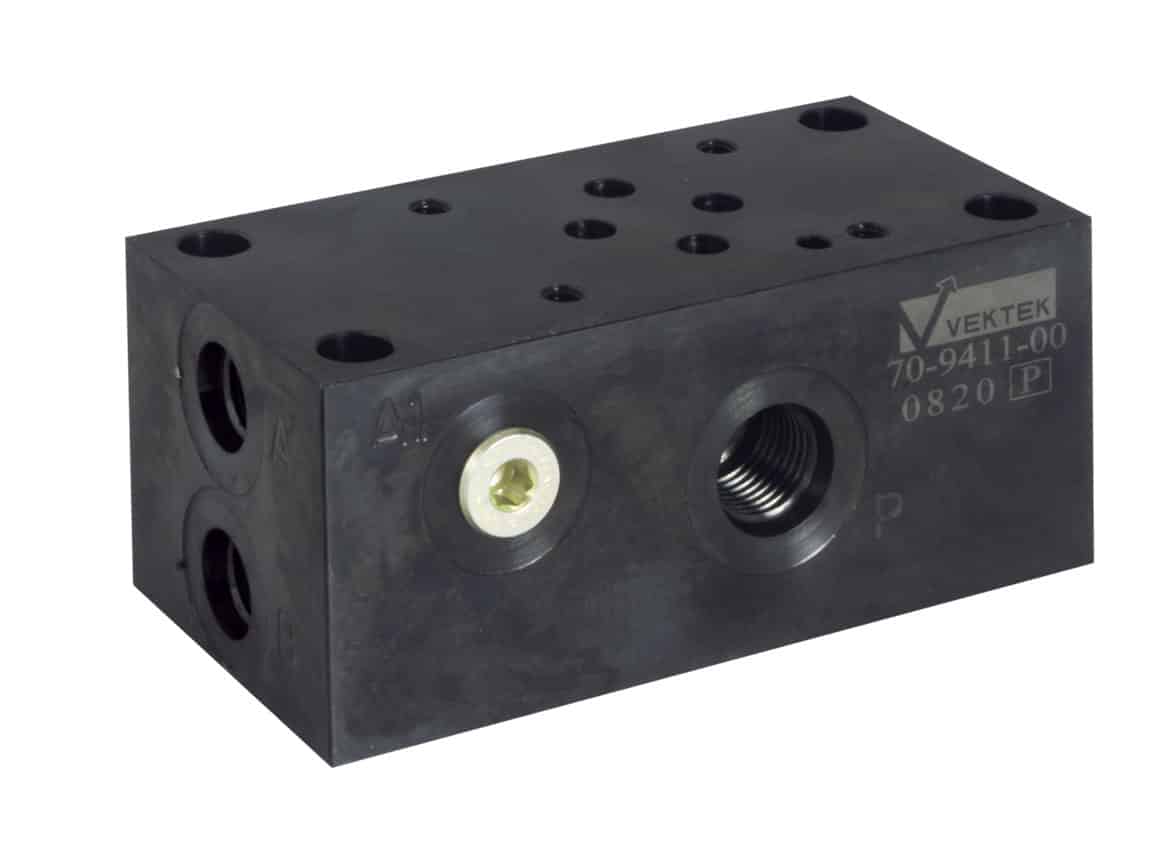

70-9411-00Subplate, Valve, D03
