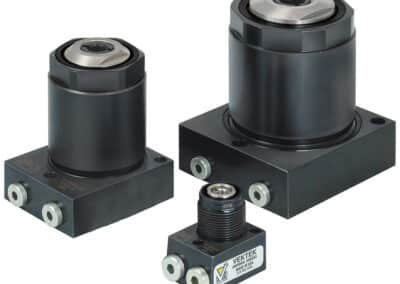

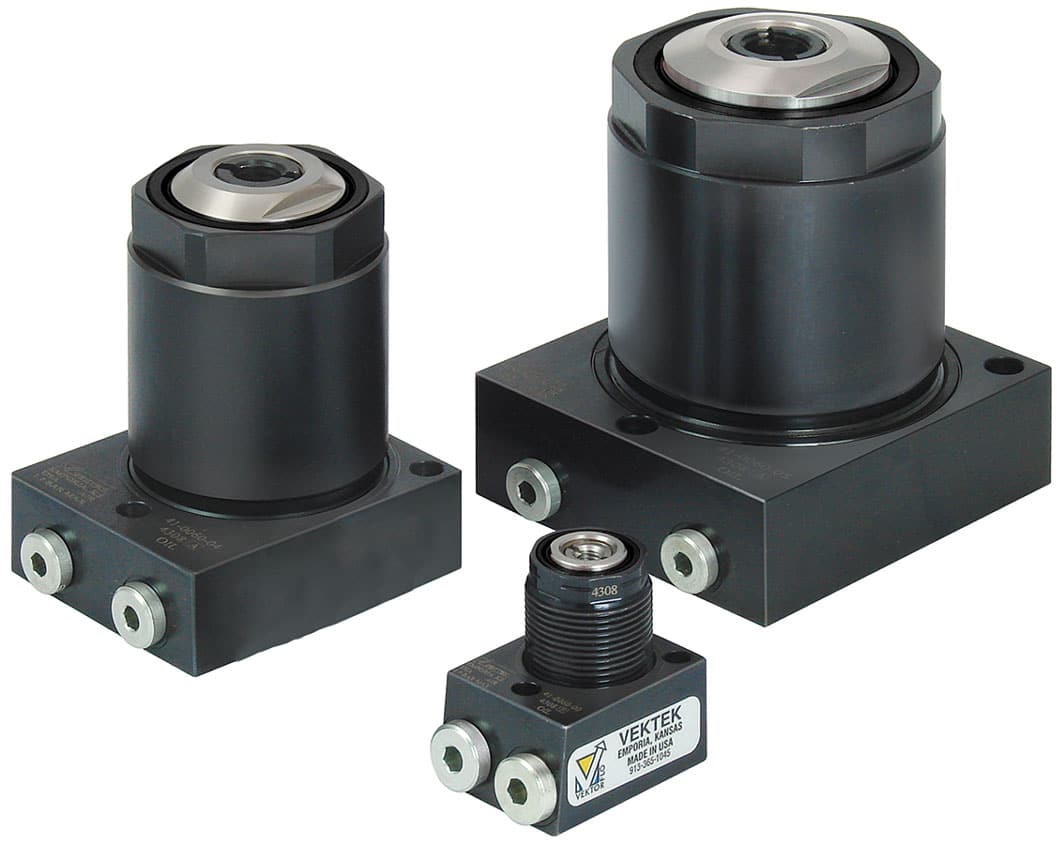

Air Advance, Base
Work Supports
For Supporting Fragile Parts Or Use In Harsh Environments
- Air Advance Work Supports are available in four capacities 4.4 kN to 55.6 kN. Each providing excellent support for light weight or heavy parts and in hog out applications.
- Normally retracted plungers provide additional clearance for part loading. Advance them with air pressure, exerting ONLY the force needed to kiss the part, then freeze the plunger hydraulically.
- Heavier attachments may be used with air advance supports because of their additional air powered lifting/contact force
- Special large-diameter plungers and sleeves provide greater rigidity.
- Continuous flow of air, can serve as an air spring and be left connected during machining. This air spring effect helps keep harsh contaminants from getting between the plunger and sleeve. This is an excellent support choice when using double acting cylinders. You should observe air bubbles escaping around the plunger when used in this manner.

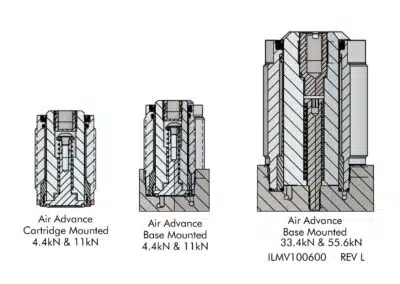

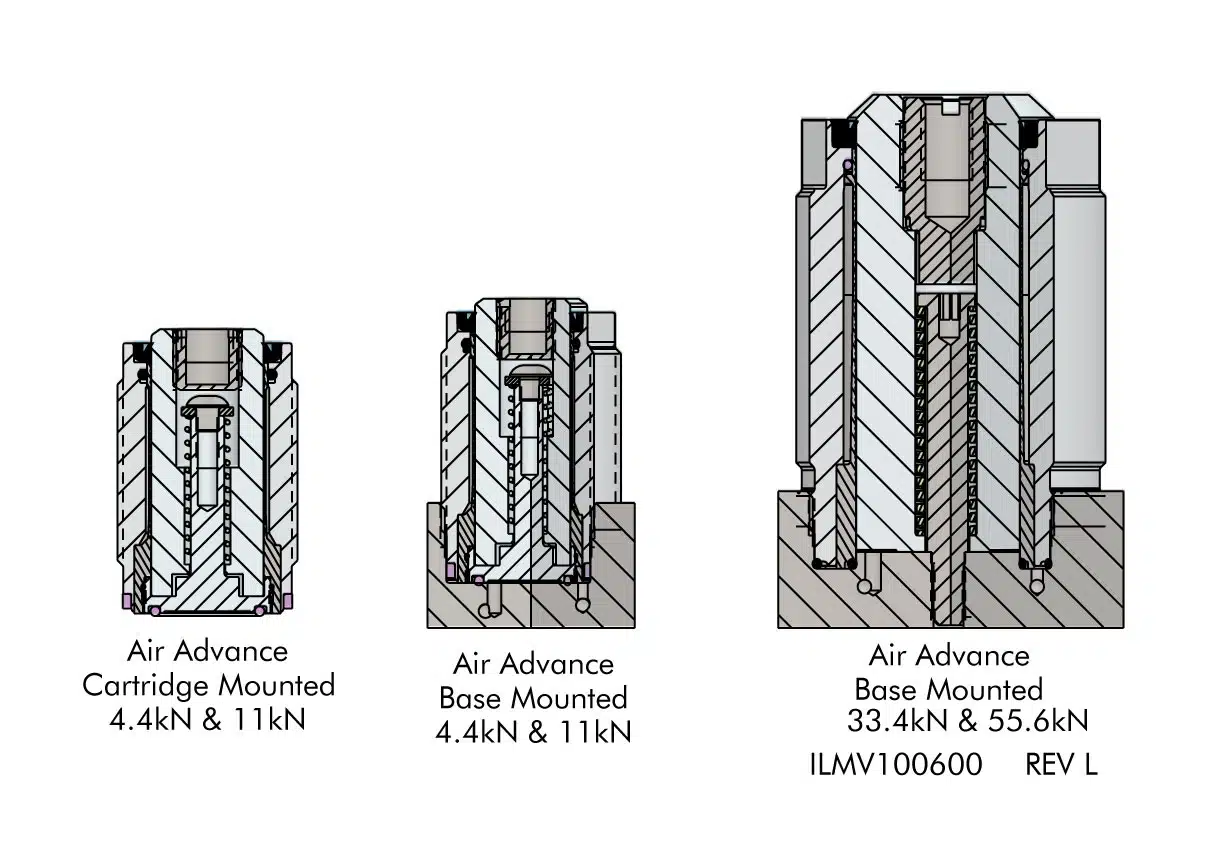

Standard G Series porting and alternate O-Ring manifold face seal is located in the base of the support for bolt down instillation. The base can be removed for direct cartridge mounting.

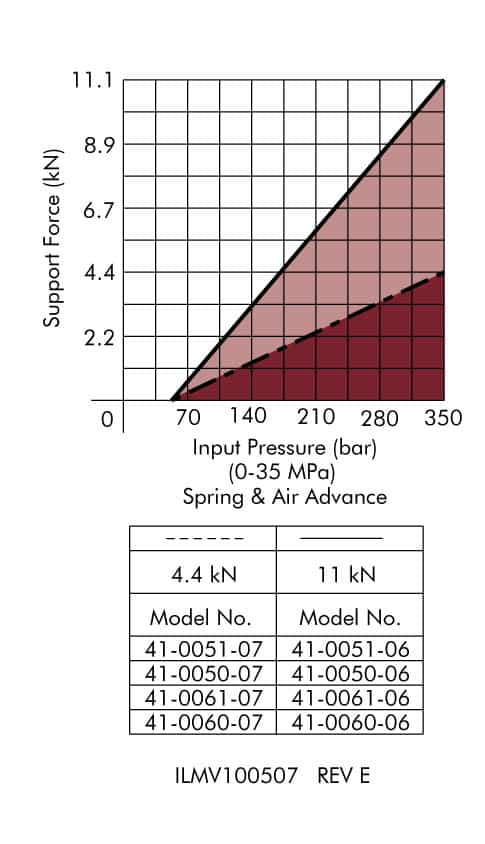

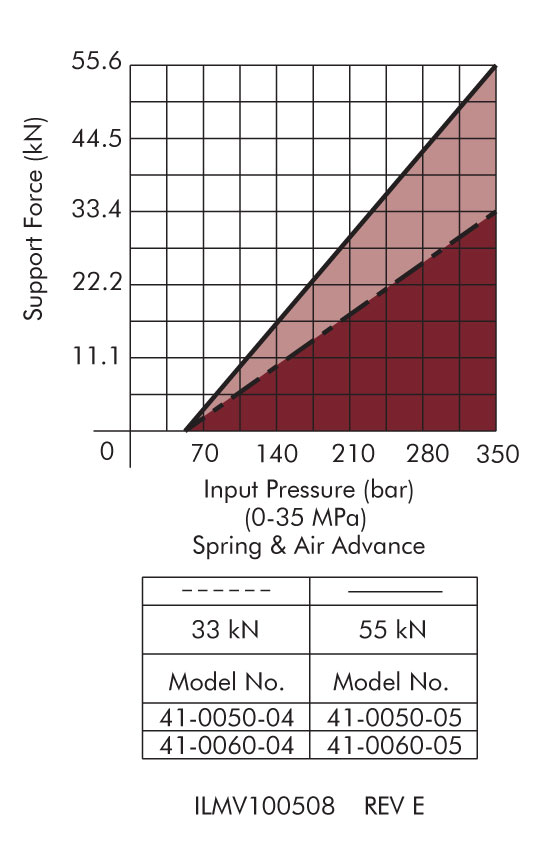

* Support capacities are listed at 350 bar (35 MPa) maximum operating pressure.
** The maximum air pressure recommended for advancing the plunger is 1.7 bar (0.17 MPa). Order air regulator Model No. 50-0440-01 with a 0-1.7 bar (0.17MPa) output, to more precisely control plunger advance force.
NOTE: DIN ISO 2768 T1 and T2 not applicable. Minimum fluid pressure is 52 bar (5.2 MPa).
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Support Capacity (kN) | Mounting Style | Hydraulic Connection | Contact Force (N) | Stroke (mm) | Base Dimension (mm) | Retracted Height (mm) | Oil Capacity (cm³) | Minimum Pressure to Fully Extend |
|---|---|---|---|---|---|---|---|---|---|
| 41-0060-04 | 33.4 | Base - G 1/8 Port | G 1/8 Port | 89 | 12.5 | 25 X 63.5 X 76 | 98 | 1.64 | 1.03 |
| 41-0060-05 | 55.6 | Base - G 1/8 Port | G 1/8 Port | 253.5 | 19 | 31.5 X 89 X 97 | 114 | 4.26 | 0.48 |
| 41-0060-06 | 11 | Base - G 1/8 Port | G 1/8 Port | 35.5 | 9.5 | 25 X 41.5 X 59 | 61 | 0.33 | 0.69 |
| 41-0060-07 | 4.4 | Base - G 1/8 Port | G 1/8 Port | 17.5 | 6.5 | 24 X 33.5 X 44.5 | 49.5 | 0.16 | 0.48 |

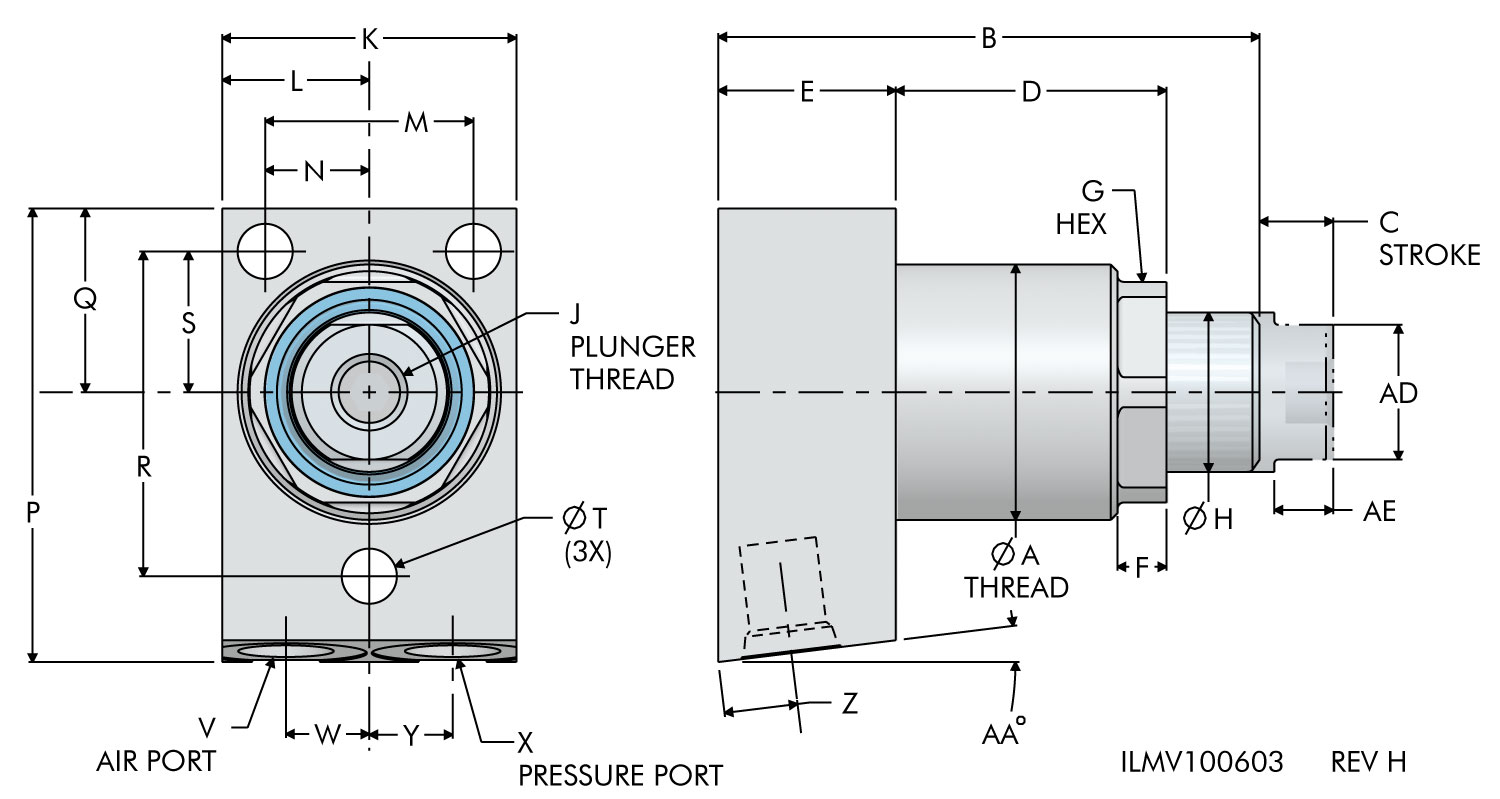

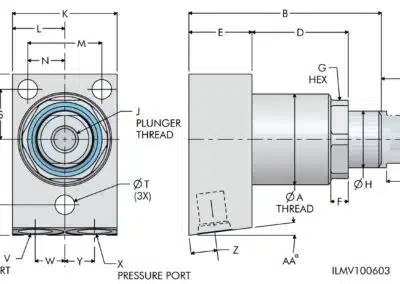

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AD | AE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0060-04 | Ø 57 | 98 | 14.3 | 68.5 | 25 | 12.5 | 50 | 38 | M12 X 1.75 X 15 | 63.5 | 31.5 | 52.5 | 26 | 76 | 31.5 | 61 | 26 | 7 | G 1/8 | 16 | G 1/8 | 16 | 10.3 | N/A | 28.5 | 4 |
| 41-0060-05 | Ø 76 | 114 | 19 | 76 | 31.5 | 12.5 | 70 | 51 | M16 X 2 X 20 | 89 | 44.5 | 73 | 36.5 | 97 | 44.5 | 81.5 | 36.5 | 9 | G 1/8 | 24 | G 1/8 | 24 | 10.3 | N/A | 41.5 | 4 |
| 41-0060-06 | M35 X 1.5 | 61 | 9.5 | 33 | 25 | 6.5 | 30 | 20.5 | M8 X 1.25 X 6 | 41.5 | 20.5 | 30 | 15 | 59 | 24 | 43 | 18 | 7 | G 1/8 | 10 | G 1/8 | 10 | 8.5 | 7 | N/A | N/A |
| 41-0060-07 | M26 X 1.5 | 49.5 | 6.5 | 25 | 24 | 5.5 | 23 | 16 | M6 X 1 X 7.5 | 33.5 | 16.5 | 24.5 | 12 | 44.5 | 17.5 | 31 | 13 | 5.5 | G 1/8 | 9 | G 1/8 | 9 | 8.5 | 7 | N/A | N/A |
