Bottom Flange

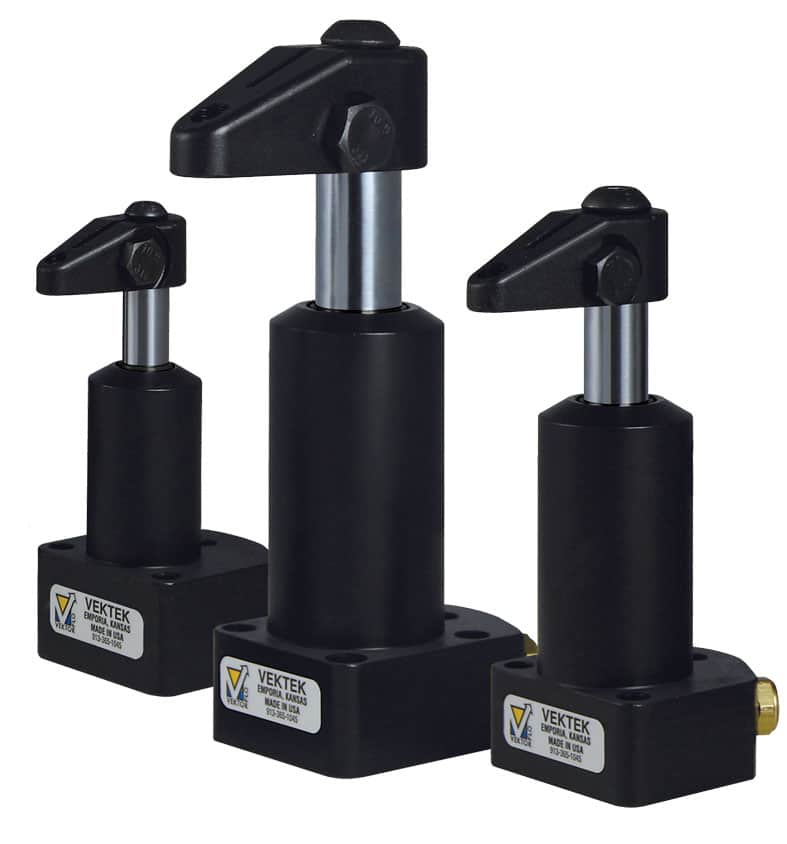

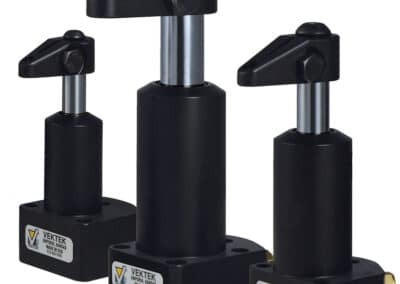

VersaCam™ Swing Clamp

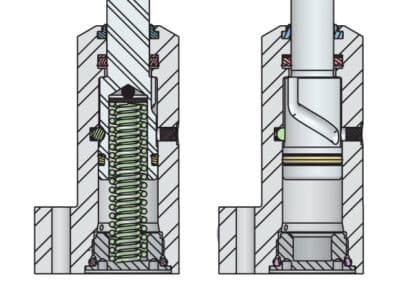

Single And Double Acting
- Available in sizes from 2 kN, to 11.6 kN at 350 bar (35 MPa) pressure.
- Simply the easiest to use manifold mount design on the market today. No precision installation holes, no precisely located ports, no special mounting hardware, only our special patented design.
- Unique, bolt up, bolt down or standard ported foot design allows you the maximum flexibility in fixture design.
- To avoid cylinder damage and preserve warranty, use recommended flow rate limits and time calculations shown here.
- Standard swing is 90°; swing angles of less than 90° require Swing Restrictors. Swing angles greater than 90° are special order products.
- Clocking feature uses standard length Vektek arm.
- Arms sold separately.
- Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
- Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.
- See Ultrasonic variant.
* Cylinder capacities are listed at 350 bar (356 MPa) maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 52 bar (5.2 MPa) for single acting, 35 bar (3.5 MPa) for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 350 (35), and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
** To allow for workpiece height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
*** To ensure maximum service life and trouble-free operation, restrict fluid flow according to the Flow Rate Chart.
Warning: Never allow swing arm to contact workpiece or fixture during arm rotation.
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Swing Direction | Clamp Capacity (kN) | Vertical Clamp Stroke (mm) | Total Stroke (Swing + Vertical) (mm) | Piston Area (cm²) Retract | Oil Capacity Extend (cm³) | Oil Capacity Retract (cm³) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|---|
| 41-5202-13 | Right | 2 | 6 | 14.5 | 0.63 | N/A | 0.92 | G 1/8 X 15.16 |
| 41-5202-14 | Left | 2 | 6 | 14.5 | 0.63 | N/A | 0.92 | G 1/8 X 15.16 |
| 41-5202-16 | Straight | 2 | 14.5 | 14.5 | 0.63 | N/A | 0.92 | G 1/8 X 15.16 |
| 41-5205-13 | Right | 4.9 | 8 | 20 | 1.90 | N/A | 3.82 | G 1/8 X 15.16 |
| 41-5205-14 | Left | 4.9 | 8 | 20 | 1.90 | N/A | 3.82 | G 1/8 X 15.16 |
| 41-5205-16 | Straight | 4.9 | 20 | 20 | 1.90 | N/A | 3.82 | G 1/8 X 15.16 |
| 41-5211-13 | Right | 11.6 | 13 | 29.5 | 4.04 | N/A | 11.9 | G 1/4 X 18.72 |
| 41-5211-14 | Left | 11.6 | 13 | 29.5 | 4.04 | N/A | 11.9 | G 1/4 X 18.72 |
| 41-5211-16 | Straight | 11.6 | 29.5 | 29.5 | 4.04 | N/A | 11.9 | G 1/4 X 18.72 |
| Model No. | Swing Direction | Clamp Capacity (kN) | Vertical Clamp Stroke (mm) | Total Stroke (Swing + Vertical) (mm) | Piston Area (cm²) Retract | Oil Capacity Extend (cm³) | Oil Capacity Retract (cm³) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|---|
| 41-5202-23 | Right | 2 | 6 | 14.5 | 0.63 | 2.3 | 0.92 | G 1/8 X 15.16 |
| 41-5202-24 | Left | 2 | 6 | 14.5 | 0.63 | 2.3 | 0.92 | G 1/8 X 15.16 |
| 41-5202-26 | Straight | 2 | 14.5 | 14.5 | 0.63 | 2.3 | 0.92 | G 1/8 X 15.16 |
| 41-5205-23 | Right | 4.9 | 8 | 20 | 1.90 | 7.8 | 3.82 | G 1/8 X 15.16 |
| 41-5205-24 | Left | 4.9 | 8 | 20 | 1.90 | 7.8 | 3.82 | G 1/8 X 15.16 |
| 41-5205-26 | Straight | 4.9 | 20 | 20 | 1.90 | 7.8 | 3.82 | G 1/8 X 15.16 |
| 41-5211-23 | Right | 11.6 | 13 | 29.5 | 4.04 | 23 | 11.9 | G 1/4 X 18.72 |
| 41-5211-24 | Left | 11.6 | 13 | 29.5 | 4.04 | 23 | 11.9 | G 1/4 X 18.72 |
| 41-5211-26 | Straight | 11.6 | 29.5 | 29.5 | 4.04 | 23 | 11.9 | G 1/4 X 18.72 |

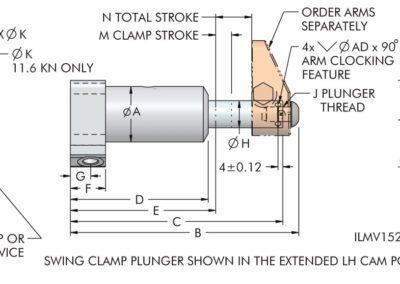

| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AB | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-5202-13 | 2 | 26.5 | 109.5 | 103 | 71 | 76 | 26.5 | 13.5 | 11.13 | M6 X 1 X 7 | 6 | 10.5 | 6 | 14 | 45 | 20 | 10 | 31 | 47 | 15.5 | N/A | 17.3 | 18.2 | 30 | Ø7.65 X 1.78 | G1/8 | 3.2 |
| 41-5202-14 | 2 | 26.5 | 109.5 | 103 | 71 | 76 | 26.5 | 13.5 | 11.13 | M6 X 1 X 7 | 6 | 10.5 | 6 | 14 | 45 | 20 | 10 | 31 | 47 | 15.5 | N/A | 17.3 | 18.2 | 30 | Ø7.65 X 1.78 | G1/8 | 3.2 |
| 41-5202-16 | 2 | 26.5 | 109.5 | 103 | 71 | 76 | 26.5 | 13.5 | 11.13 | M6 X 1 X 7 | 6 | 10.5 | 14 | 14 | 45 | 20 | 10 | 31 | 47 | 15.5 | N/A | 17.3 | 18.2 | 30 | Ø7.65 X 1.78 | G1/8 | 3.2 |
| 41-5205-13 | 4.9 | 38 | 145 | 135 | 92.5 | 97.5 | 25 | 15 | 15.88 | M10 X 1.5 X 12 | 7 | 20.5 | 8 | 20 | 57 | 25 | 12.5 | 33.5 | 54 | 19 | N/A | 21.7 | 14.3 | 30 | Ø7.65 X 1.78 | G1/8 | 4.8 |
| 41-5205-14 | 4.9 | 38 | 145 | 135 | 92.5 | 97.5 | 25 | 15 | 15.88 | M10 X 1.5 X 12 | 7 | 20.5 | 8 | 20 | 57 | 25 | 12.5 | 33.5 | 54 | 19 | N/A | 21.7 | 14.3 | 30 | Ø7.65 X 1.78 | G1/8 | 4.8 |
| 41-5205-16 | 4.9 | 38 | 145 | 135 | 92.5 | 97.5 | 25 | 15 | 15.88 | M10 X 1.5 X 12 | 7 | 20.5 | 20 | 20 | 57 | 25 | 12.5 | 33.5 | 54 | 19 | N/A | 21.7 | 14.3 | 30 | Ø7.65 X 1.78 | G1/8 | 4.8 |
| 41-5211-13 | 11.6 | 45.5 | 186.5 | 173 | 112.5 | 118.5 | 28.5 | 16.5 | 22.23 | M12 X 1.75 X 13 | 9 | 11.9 | 13 | 29.5 | 55.5 | 29.7 | 21 | 42 | 71 | 27.5 | 21 | 21 | 28.6 | 22.5 | Ø7.65 X 1.78 | G1/4 | 4.8 |
| 41-5211-14 | 11.6 | 45.5 | 186.5 | 173 | 112.5 | 118.5 | 28.5 | 16.5 | 22.23 | M12 X 1.75 X 13 | 9 | 11.9 | 13 | 29.5 | 55.5 | 29.7 | 21 | 42 | 71 | 27.5 | 21 | 21 | 28.6 | 22.5 | Ø7.65 X 1.78 | G1/4 | 4.8 |
| 41-5211-16 | 11.6 | 45.5 | 186.5 | 173 | 112.5 | 118.5 | 28.5 | 16.5 | 22.23 | M12 X 1.75 X 13 | 9 | 11.9 | 29.5 | 29.5 | 55.5 | 29.7 | 21 | 42 | 71 | 27.5 | 21 | 21 | 28.6 | 22.5 | Ø7.65 X 1.78 | G1/4 | 4.8 |
| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AB | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-5202-23 | 2 | 26.5 | 109.5 | 103 | 71 | 76 | 26.5 | 13.5 | 11.13 | M6 X 1 X 7 | 6 | 10.5 | 6 | 14 | 45 | 20 | 10 | 31 | 47 | 15.5 | N/A | 17.3 | 18.2 | 30 | Ø7.65 X 1.78 | G1/8 | 3.2 |
| 41-5202-24 | 2 | 26.5 | 109.5 | 103 | 71 | 76 | 26.5 | 13.5 | 11.13 | M6 X 1 X 7 | 6 | 10.5 | 6 | 14 | 45 | 20 | 10 | 31 | 47 | 15.5 | N/A | 17.3 | 18.2 | 30 | Ø7.65 X 1.78 | G1/8 | 3.2 |
| 41-5202-26 | 2 | 26.5 | 109.5 | 103 | 71 | 76 | 26.5 | 13.5 | 11.13 | M6 X 1 X 7 | 6 | 10.5 | 14 | 14 | 45 | 20 | 10 | 31 | 47 | 15.5 | N/A | 17.3 | 18.2 | 30 | Ø7.65 X 1.78 | G1/8 | 3.2 |
| 41-5205-23 | 4.9 | 38 | 145 | 135 | 92.5 | 97.5 | 25 | 15 | 15.88 | M10 X 1.5 X 12 | 7 | 20.5 | 8 | 20 | 57 | 25 | 12.5 | 33.5 | 54 | 19 | N/A | 21.7 | 14.3 | 30 | Ø7.65 X 1.78 | G1/8 | 4.8 |
| 41-5205-24 | 4.9 | 38 | 145 | 135 | 92.5 | 97.5 | 25 | 15 | 15.88 | M10 X 1.5 X 12 | 7 | 20.5 | 8 | 20 | 57 | 25 | 12.5 | 33.5 | 54 | 19 | N/A | 21.7 | 14.3 | 30 | Ø7.65 X 1.78 | G1/8 | 4.8 |
| 41-5205-26 | 4.9 | 38 | 145 | 135 | 92.5 | 97.5 | 25 | 15 | 15.88 | M10 X 1.5 X 12 | 7 | 20.5 | 20 | 20 | 57 | 25 | 12.5 | 33.5 | 54 | 19 | N/A | 21.7 | 14.3 | 30 | Ø7.65 X 1.78 | G1/8 | 4.8 |
| 41-5211-23 | 11.6 | 45.5 | 186.5 | 173 | 112.5 | 118.5 | 28.5 | 16.5 | 22.23 | M12 X 1.75 X 13 | 9 | 11.9 | 13 | 29.5 | 55.5 | 29.7 | 21 | 42 | 71 | 27.5 | 21 | 21 | 28.6 | 22.5 | Ø7.65 X 1.78 | G1/4 | 4.8 |
| 41-5211-24 | 11.6 | 45.5 | 186.5 | 173 | 112.5 | 118.5 | 28.5 | 16.5 | 22.23 | M12 X 1.75 X 13 | 9 | 11.9 | 13 | 29.5 | 55.5 | 29.7 | 21 | 42 | 71 | 27.5 | 21 | 21 | 28.6 | 22.5 | Ø7.65 X 1.78 | G1/4 | 4.8 |
| 41-5211-26 | 11.6 | 45.5 | 186.5 | 173 | 112.5 | 118.5 | 28.5 | 16.5 | 22.23 | M12 X 1.75 X 13 | 9 | 11.9 | 29.5 | 29.5 | 55.5 | 29.7 | 21 | 42 | 71 | 27.5 | 21 | 21 | 28.6 | 22.5 | Ø7.65 X 1.78 | G1/4 | 4.8 |

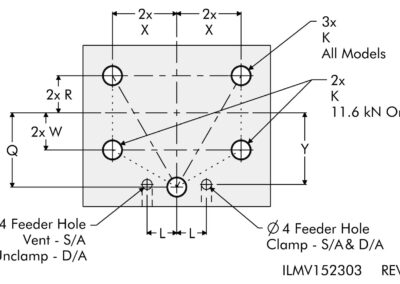

| Model No. | K | L | Q | R | W | X | Y |
|---|---|---|---|---|---|---|---|
| 41-5202-13 | M5 | 10.5 | 20 | 10 | N/A | 17.3 | 18.2 |
| 41-5202-14 | M5 | 10.5 | 20 | 10 | N/A | 17.3 | 18.2 |
| 41-5202-16 | M5 | 10.5 | 20 | 10 | N/A | 17.3 | 18.2 |
| 41-5205-13 | M6 | 20.5 | 25 | 12.5 | N/A | 21.7 | 14.3 |
| 41-5205-14 | M6 | 20.5 | 25 | 12.5 | N/A | 21.7 | 14.3 |
| 41-5205-16 | M6 | 20.5 | 25 | 12.5 | N/A | 21.7 | 14.3 |
| 41-5211-13 | M8 | 11.9 | 29.7 | 21 | 21 | 21 | 28.6 |
| 41-5211-14 | M8 | 11.9 | 29.7 | 21 | 21 | 21 | 28.6 |
| 41-5211-16 | M8 | 11.9 | 29.7 | 21 | 21 | 21 | 28.6 |
| Model No. | K | L | Q | R | W | X | Y |
|---|---|---|---|---|---|---|---|
| 41-5202-23 | M5 | 10.5 | 20 | 10 | N/A | 17.3 | 18.2 |
| 41-5202-24 | M5 | 10.5 | 20 | 10 | N/A | 17.3 | 18.2 |
| 41-5202-26 | M5 | 10.5 | 20 | 10 | N/A | 17.3 | 18.2 |
| 41-5205-23 | M6 | 20.5 | 25 | 12.5 | N/A | 21.7 | 14.3 |
| 41-5205-24 | M6 | 20.5 | 25 | 12.5 | N/A | 21.7 | 14.3 |
| 41-5205-26 | M6 | 20.5 | 25 | 12.5 | N/A | 21.7 | 14.3 |
| 41-5211-23 | M8 | 11.9 | 29.7 | 21 | 21 | 21 | 28.6 |
| 41-5211-24 | M8 | 11.9 | 29.7 | 21 | 21 | 21 | 28.6 |
| 41-5211-26 | M8 | 11.9 | 29.7 | 21 | 21 | 21 | 28.6 |
