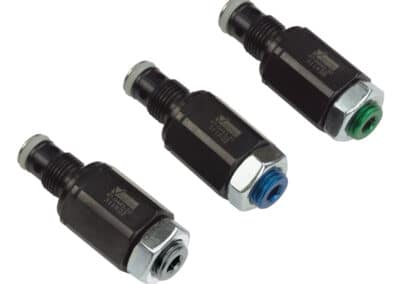

In The Port Sequence Valves
Metric Accessory Valves
- Installs directly into device port, requires oil feed through manifold mount ports.
- Works with Top Flange, Bottom Flange Swing Clamps, Link Clamps and High Capacity Work Supports.
- Controls timing of individual devices on your fixture.
- Each valve can be individually adjusted from the factory preset.
- True sequencing design allows full system pressure downstream of valve after opening.
- Maintains pressure upstream while device actuates.
- Three pressure ranges available with adjustability within each range.*
- Can be added after the fixture is built to assure proper sequencing (Requires the use of flange manifold feed ports).
- Use with single or double acting clamps; in clamp port, unclamp port, or both.
- Internal reverse free flow check valve allows for faster return.
- Accessories available; Pressure pre-set block and in-line adapter block.
U.S. Patent No. 11,097,389
* Number of sequences within each range depends on number of devices, pump flow & operating pressure.
NOTE: Max flow not to exceed the individual device rating or 3.81/min whichever is lower. Maximum inlet pressure for in-port sequence valve is 350 Bar, excess voids warranty. Consult the double acting work support, high capacity work support, the swing clamp or link clamp specifications page for the valve that is appropriate for your application.
NOTE: Max flow rate not to exceed the individual device rating or 3.8 l/min whichever is lower.
Presets all G 1/4, G 1/8 and SAE 4 sequence and flow control valves.
| Model No. | Set Pressure Range | Factory Preset | Port Type |
|---|---|---|---|
| 47-0443-30 | 20 - 60 bar | 50 bar | G 1/8 x 15.16 |
| 47-0443-31 | 35 - 150 bar | 100 bar | G 1/8 x 15.16 |
| 47-0443-32 | 125 - 275 bar | 200 bar | G 1/8 x 15.16 |
| 47-0443-50 | 20 - 55 bar | 50 bar | G 1/4 x 18.72 |
| 47-0443-51 | 35 - 150 bar | 100 bar | G 1/4 x 18.72 |
| 47-0443-52 | 125 - 275 bar | 200 bar | G 1/4 x 18.72 |
| Model No. | A | B | C | E | F | G |
|---|---|---|---|---|---|---|
| 47-0443-30 | 28 | 16 | 20.3 | 17.5 | 5.6 | 14 |
| 47-0443-31 | 28 | 16 | 20.3 | 17.5 | 5.6 | 14 |
| 47-0443-32 | 28 | 16 | 20.3 | 17.5 | 5.6 | 14 |
| 47-0443-50 | 34.5 | 19 | 27.4 | 21.0 | 5.0 | 17 |
| 47-0443-51 | 34.5 | 19 | 27.4 | 21.0 | 5.0 | 17 |
| 47-0443-52 | 31.8 | 19 | 24.6 | 21.0 | 5.0 | 17 |

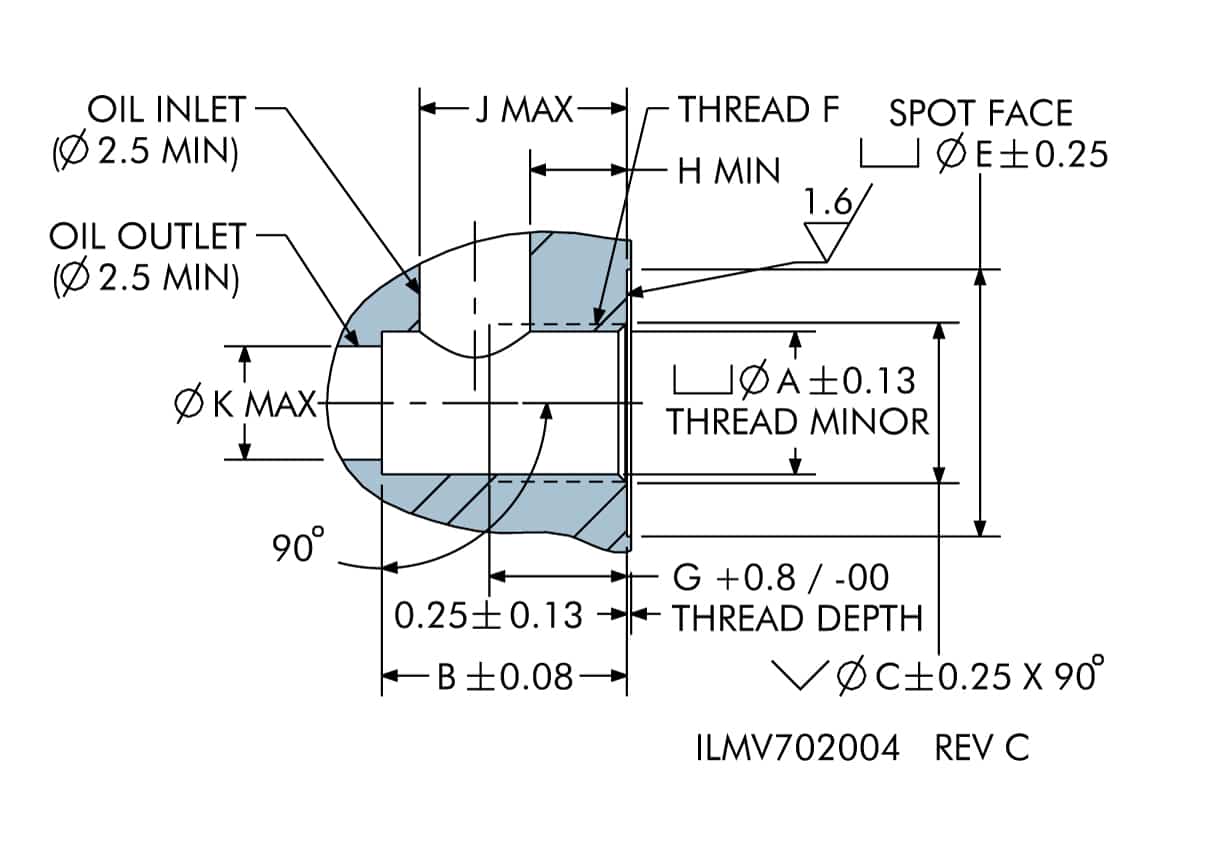

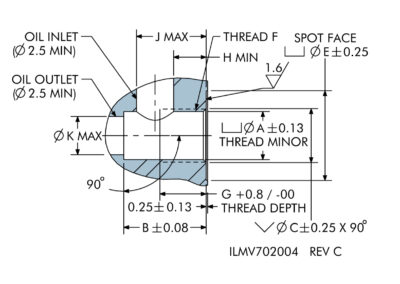

| Model No. | Port Type | A | B | C | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 47-0443-30 | G 1/8 x 15.16 | 8.84 | 15.16 | 9.9 | 16.5 | 1/8 - 28 BSPP | 8.5 | 6 | 12.83 | 7 |
| 47-0443-31 | G 1/8 x 15.16 | 8.84 | 15.16 | 9.9 | 16.5 | 1/8 - 28 BSPP | 8.5 | 6 | 12.83 | 7 |
| 47-0443-32 | G 1/8 x 15.16 | 8.84 | 15.16 | 9.9 | 16.5 | 1/8 - 28 BSPP | 8.5 | 6 | 12.83 | 7 |
| 47-0443-50 | G 1/4 x 18.72 | 11.89 | 18.72 | 13.3 | 21.5 | 1/4 - 19 BSPP | 12.5 | 10 | 16.39 | 10 |
| 47-0443-51 | G 1/4 x 18.72 | 11.89 | 18.72 | 13.3 | 21.5 | 1/4 - 19 BSPP | 12.5 | 10 | 16.39 | 10 |
| 47-0443-52 | G 1/4 x 18.72 | 11.89 | 18.72 | 13.3 | 21.5 | 1/4 - 19 BSPP | 12.5 | 10 | 16.39 | 10 |
| Model No. |
|---|
| 43-3011-70 |

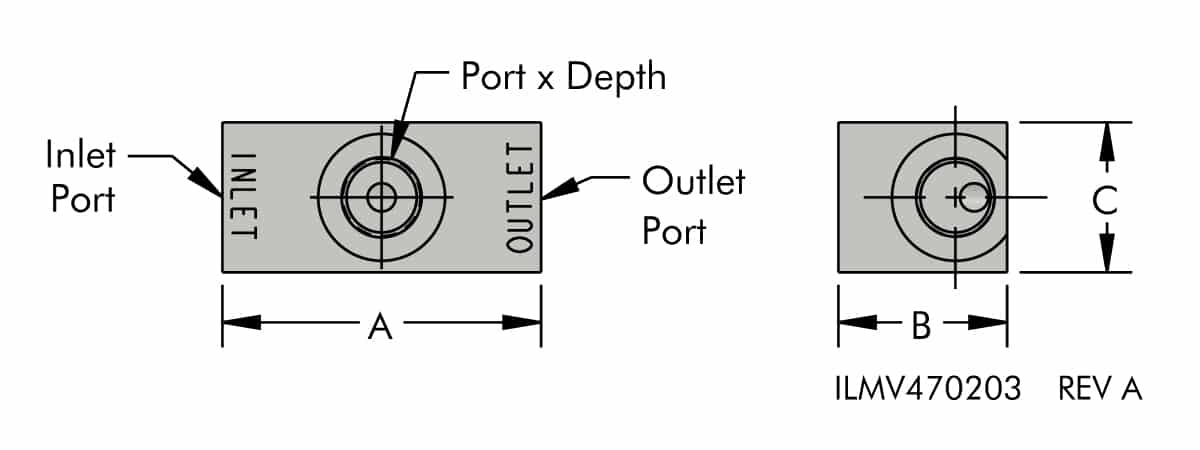

| Model No. | Port Type | Inlet/Outlet | A | B | C |
|---|---|---|---|---|---|
| 43-1941-00 | G 1/8 X 15.16 | G 1/8 | 41.3 | 22.2 | 22.2 |
| 43-1961-00 | G 1/4 X 18.72 | G 1/4 | 54.0 | 28.6 | 25.4 |
