Handle Docking Station
Palletized Fixture Accessories

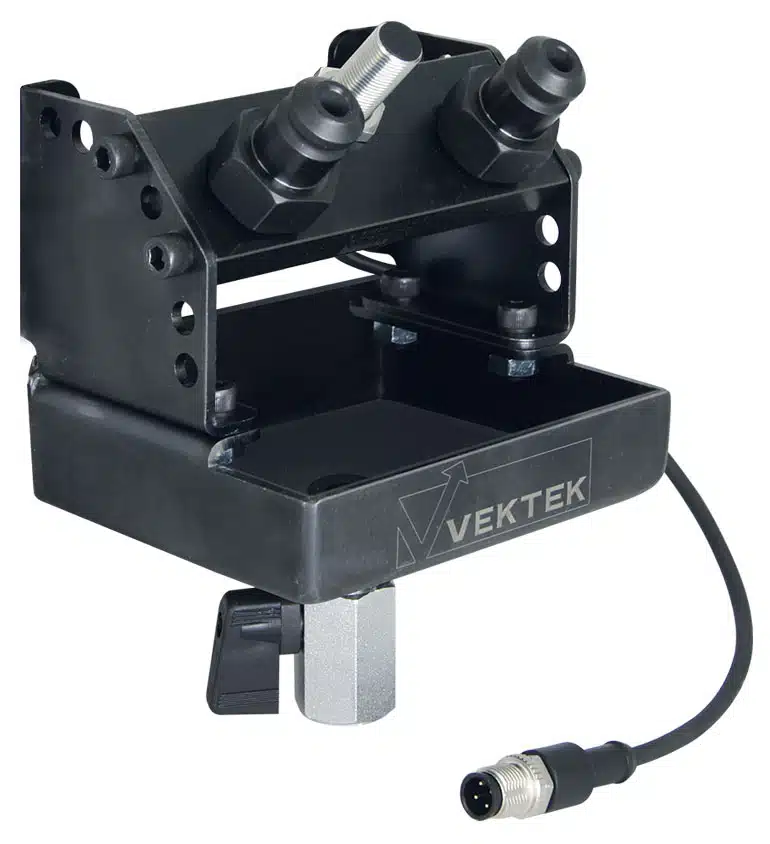

Handle Docking Stations with optional feedback sensor
Docking Stations are now available for both 1-Handed or 2-Handed Automatic Shutoff Pallet Decoupler Handles. These handy devices provide a standard contamination-free location for quickdisconnect handle storage. Handle Docking Stations have a drain pan to keep your work area free of slip and fall hazards created by dripping disconnects.
- The optional Proximity Switch confirms the decoupler handle and hoses are connected to the docking station. The pallet can then be safely shuttled into the machine.

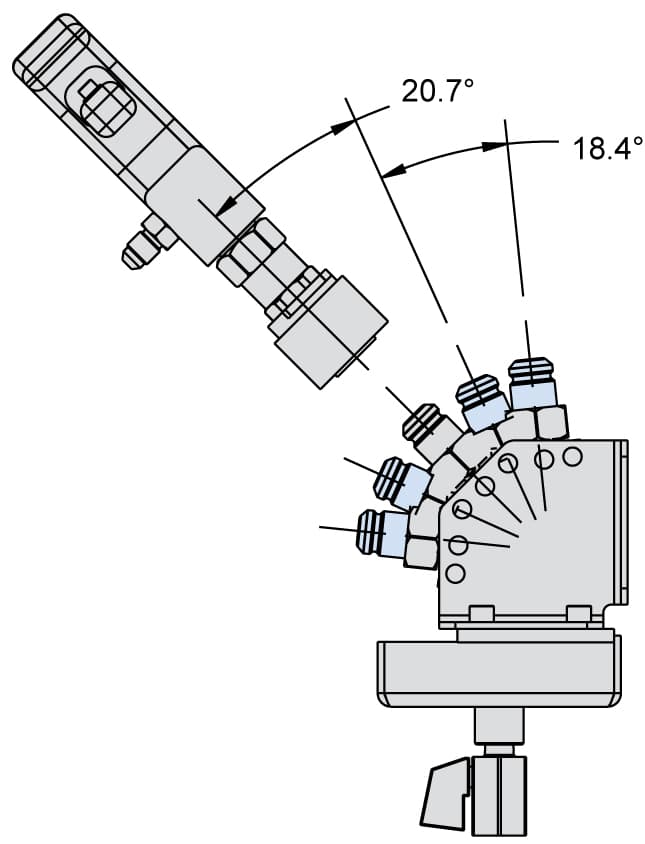

- Adjustable five connector positions insure these stations are ergonomically friendly for all operators.
- Docking couplers are for handle retention only.

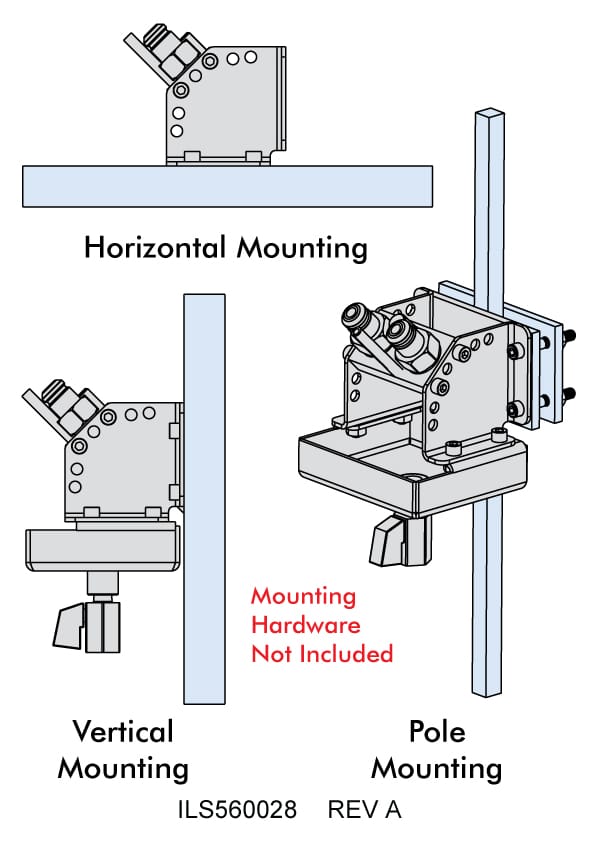

- Flexible mounting allows for vertical, horizontal or pole applications.

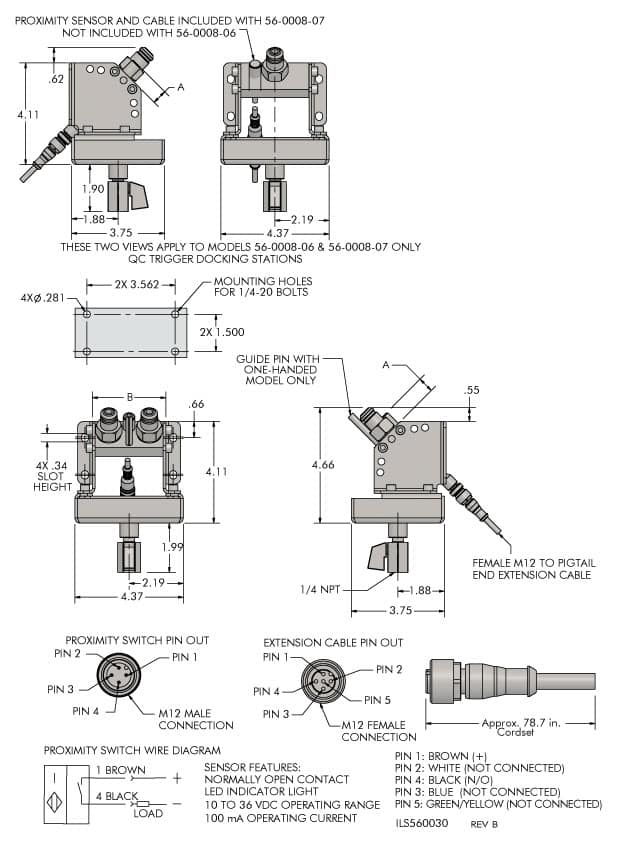

| Model No. | Proximity Switch | Handle Size | A Proximity Switch Height | B Dock Width |
|---|---|---|---|---|
| 56-0005-28 | No | Two-Hand | N/A | 4.37 |
| 56-0005-29 | Yes | Two-Hand | 1.036 | 4.37 |
| 56-0008-01 | No | One-Hand | N/A | 2.95 |
| 56-0008-02 | Yes | One-Hand | 0.682 | 2.95 |
| 56-0008-06 | No | QC Trigger | N/A | 2.95 |
| 56-0008-07 | Yes | QC Trigger | 0.610 | 2.95 |
