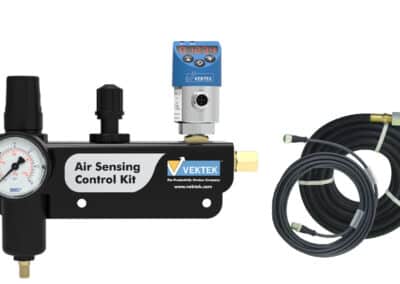

Air Sensing Control Kit
for Pneumatic Confirmation Systems
- Adjustable air pressure and flow gives you the ability to monitor
most confirmation valves, part present or clamp position systems. - Easy electronic pressure switch adjustment with 2 PNP* digital
set points and 1 analog output to meet your specific needs. - Can be used with Pallet Decouplers, Pneumatic Confirmation
Valves, Part Present Sensing Work Supports or self-made part
location orifices. - Comes as a ready-to-use kit with everything you need to feed
back a confirmation signal of your choice!
* For NPN applications order signal converter cable 27-8420-00.
| Model No. | Max Air Pressure (psi) | Pressure Range (psi.) | Air Flow Rate (SCFM) | Filtration | Power Supply | Power Consumption | 2 Digital Contacts | 1 Analog Output |
|---|---|---|---|---|---|---|---|---|
| P5-0824-00 | 200 psi | 0 - 25 psi | 12 | 5 micron | 15 - 32 VDC | 50 mA | N/O or N/C | 0 - 10 V or 4 - 20 mA |
