Vertical, Heavy Duty Toggle
Pneumatic Toggles
- Proximity switch capable, order switch separately.
- Operating temperature limits are -14 to 140° F.
* Holding capacity at maximum input pressure of 85 psig.
** Vn = Air consumption in cubic inches per double stroke at 85 psig. Maximum operating pressure is 145 psig.

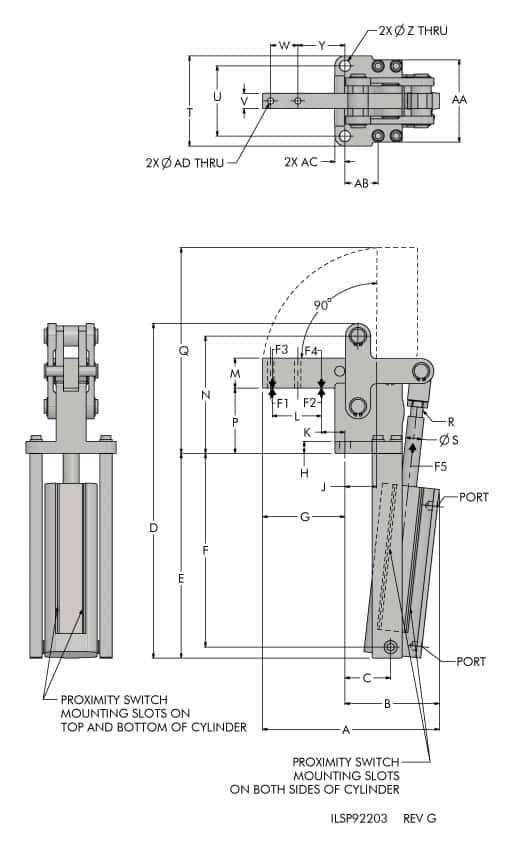

| Model No. | Size | Weight | F1 lbs. | F2 lbs. | F3 lbs. | F4 lbs. | F5 lbs. | Vn | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | V | W | Y | Z | AA | AB | AC | AD | Stroke (in.) | Piston Dia. | Port Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P9-2262 | 4 | 8.50 | 1349 | 2023 | 337 | 495 | 169 | 61 | 7.23 | 4.06 | 1.79 | 13.13 | 8.03 | 7.60 | 3.23 | 0.47 | 1.26 | 0.79 | 2.13 | 1.18 | 4.61 | 2.56 | 8.07 | M12 x 1.25 | 0.63 | 3.54 | 2.76 | 0.59 | 1.06 | 1.85 | 0.43 | 3.23 | 1.30 | 0.39 | 0.24 | 2.73 | 1.57 | G 1/8 |
| P9-2270 | 6 | 15.30 | 2698 | 4047 | 562 | 787 | 225 | 110 | 8.30 | 4.73 | 1.91 | 15.30 | 9.21 | 8.70 | 3.66 | 0.59 | 1.10 | 0.87 | 2.36 | 1.57 | 5.39 | 2.72 | 8.82 | M16 x 1.50 | 0.79 | 4.21 | 3.27 | 0.79 | 1.02 | 2.17 | 0.51 | 3.94 | 1.16 | 0.47 | 0.32 | 3.38 | 1.97 | G 1/4 |
| P9-2288 | 8 | 29.10 | 4496 | 6744 | 899 | 1349 | 405 | 262 | 11.23 | 6.35 | 3.03 | 18.66 | 10.63 | 10.04 | 4.92 | 0.79 | 1.77 | 0.96 | 3.74 | 2.36 | 7.24 | 3.70 | 12.36 | M16 x 1.50 | 0.79 | 5.71 | 4.53 | 1.18 | 1.57 | 2.64 | 0.67 | 4.53 | 1.73 | 0.59 | 0.52 | 4.24 | 2.48 | G 1/4 |
