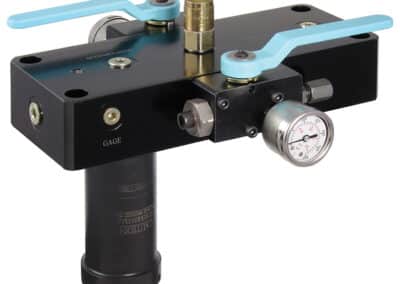

Manual Shutoff Valves Top Plate, Two-Sided

Manual Shutoff Valve Tombstone Top Plates for Single Acting Systems

• Provides separate unclamp control of up to two faces of a tombstone or multi-circuit pallet for independent loading and unloading.
• Tombstone Top Plates are convenient, self-contained packages that include a quick connect coupling, manual shutoff valves, accumulator, filter screens, check valves, pressure gauge and a manual pressure bleed port.
• The Two-sided Top Plate is provided with a gauge at each shutoff valve.
• Models available for circuits operating at 1,000-5,000 psi and 1,000-3,500 psi.

NOTE: These Manual Shutoff Valve Top Plates must be used with a suitable pump which includes a 2-Position/3-Port, directional control valve for operation of single acting circuits only. Each valve on a Manual Top Plate can be used to operate only one single acting circuit. For operation of double acting circuits, see the Automatic Shutoff Valve Decouplers.
