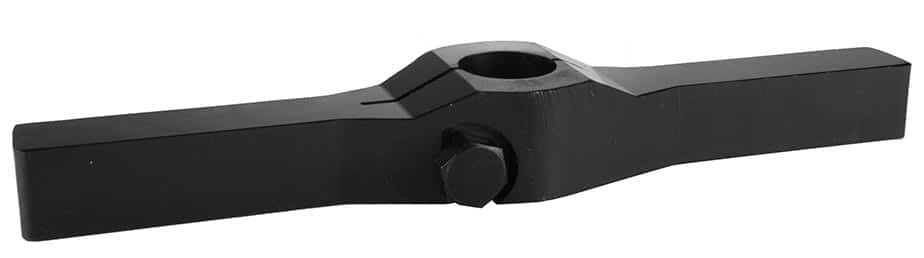

Swing Clamp Arms, Low Profile, Double Ended
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.
Note: Replacement cap screw for 91-5218-14 is PN 21-5000-24. Replacement cap screw for 91-5221-08 is PN 21-5000-28.
It is recommended that the cross bolt is replaced if the arm needs to be removed after it has been in service.
* 91-5218-14 for use with Low Profile Swing Clamp Model 14-2718-XX and 14-2818-XX.
** 91-5221-08 for use with Low Profile Swing Clamp Model 14-0521-XX, 14-0621-XX, 14-2121-XX, and 14-2221-XX.

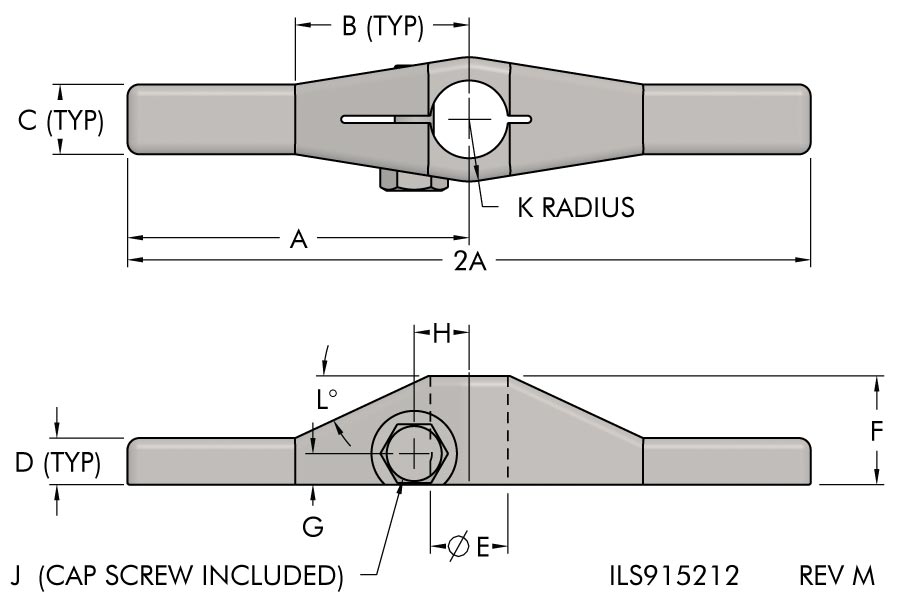

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5218-14 | 5000 | 5.50 / 2A is 11.00 | 2.80 | 1.13 | 0.73 | 1.250 / 1.252 | 1.75 | 0.50 | 0.884 | M16 X 1.5 | 1.00 | 25° |
| 91-5221-08 | 7500 | 7.10 / 2A is 14.20 | 1.75 | 1.19 | 1.33 | 1.5005 / 1.5025 | 1.75 | 0.56 | 1.009 | M16 X 1.5 | 1.37 | 25° |
