Valve Type: Manifold Only

2HP Advanced Workholding Pump 2 Port Pump – No Control Valves Included

• Central or remote power supply configured with P (pressure out) and T (tank return flow) port only.
• Valves usually mounted on the machine closer to the application, often machine controlled.
• Typically mounted behind or between 2 machines.
• Requires remote shear seal or poppet style zero leak valve.
• Supply your own off board valve.

Extremely low carbon footprint — Motor never runs while holding pressure

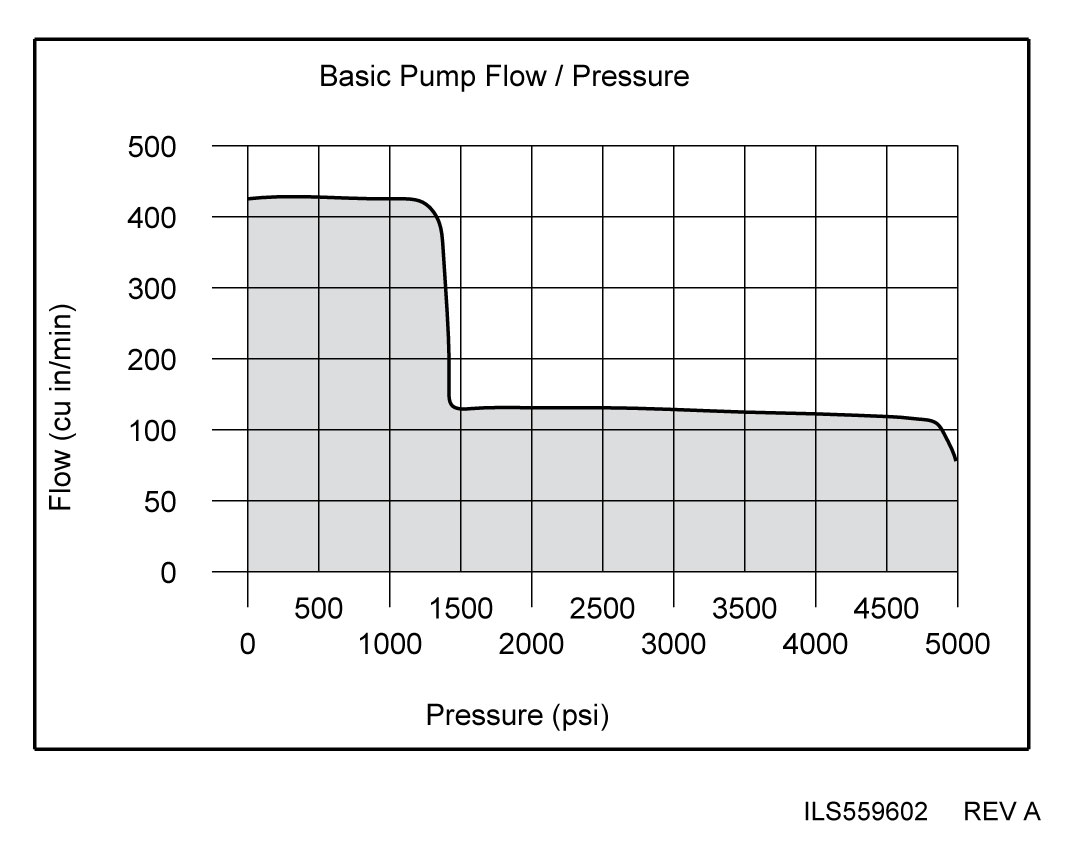

Look no further for a long lasting and easy to use advanced workholding pump. The durable 2-Stage design of this pump stands up to high demand circuits along with high or low duty cycles. To help extend the life of the pump and valves, the high pressure output and low pressure returns are filtered. With a 5-Gallon reservoir, the oversized fill tube makes refilling simple!

• Working pressure range of 1,000 – 5,000 PSI.
• Fully configurable 0-6 valve stack to meet all workholding needs.
• Premium Efficiency, VFD rated, TEFC, AC motor, 2-HP, 3-PH, 230/460 VAC, 50/60-HZ,1800 RPM.
• No duty cycle limitation due to VFD thermal protection.
• Manual or solenoid operated valves available in all configurations.
• Vektek electronic pressure switch with analog output to VFD for PI loop control.
• In-tank fluid level sensor, electronically connected to fault circuit.
• 10 micron return line filter for maximum protection and long life.
• Replacement Filter (Model No. 31-0500-18) for Return Line Filter.
• Large 5-Gallon reservoir designed for maximum usable oil volume.
• Reusable Buna-N Rubber gaskets with PSA backing throughout.
• Pop up indicator included, electronic filter clog indicator optional.
• Machine control cable for connection to the CNC machine is optional.

Pump Add-on Options

• Valve Wiring Cable (one for each valve).
• Pump/Machine Tool Interface Cable (all pump control in one cable).
• Upgrade to fluid level temperature switch.
• Upgrade to Electronic clog indicator return line filter.
• Mechanical pressure switch (no power required).
• Electronic pressure switch (24V power required).
• Manual or solenoid directional control valve functions.
• Check Valve (for multiple manual valves in stack).
• Pressure reducing valves for each circuit.
• Accumulator (for small or low pressure systems).
• Extra pendant switches (1 supplied with each different solenoid valve on pump for setup and testing).
• Return Line Water Absorbing Filter with models available for use without cart and with cart.
