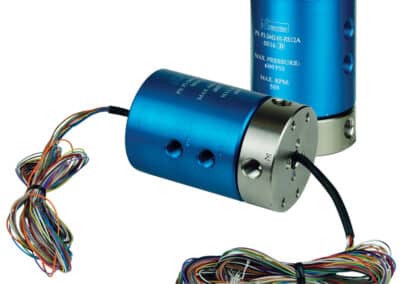

Quad Path Rotary Union
Pneumatic Rotary Unions
- Rotating unions are a rotary connection, feeding pressure to fixtures while allowing full 360? rotation of the fixture with or without pressure. A machine or independent indexer may do this indexing.
- Feature aluminum construction for low weight and excellent durability.
- Dual precision sealed bearings for consistent performance and long seal life.
- Larger units are available upon request.
Operating Parameters
- Max. Input Pressure: 600 psi
- Max. Vacuum: 30 Hg
- Max. Rotational Speed: up to 500 RPM
- Max. Temperature: 220° F
| Model No. | Max. Input Pressure (psi) | Max RPM | Max Vacuum (Hg) | Max Temperature (F) | Electrical Slip Ring Option | Maximum Current / Circuit | Max Volts / Circuit | Lead Wire Length |
|---|---|---|---|---|---|---|---|---|
| P3-2442-01 | 600 | 500 | 30 | 220 | N/A | N/A | N/A | N/A |
| P3-2442-01-ES12A | 600 | 100 | 30 | 220 | 12 Circuit | 2 Amp | 120 | 24 in. |
| P3-2442-01-ES6A | 600 | 100 | 30 | 220 | 6 Circuit | 2 Amp | 120 | 24 in. |
