Air Powered Collet Vise
Double Acting Single Collet Styles Only
- Compact design yields 750 lbs collet closing force at 100 psi air line pressure.
- Concentric piston pulls the standard 5-C collet on centerline.

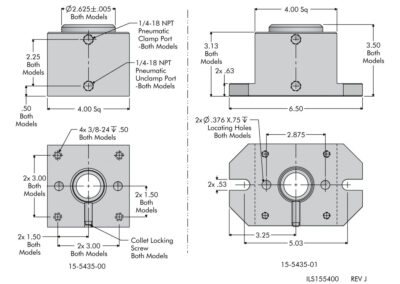

- Available with or without mounting flange for easy fastening from either top or bottom.
- Through hole design allows you to feed bar stock (1.062″ maximum diameter) from the bottom of the collet for high production applications.
- Lightweight, only 5 lbs.
NOTE: Do not exceed 150 psi maximum inlet pressure.
* 100 psi air pressure with a Ø 0.500 collet.
| Model No. | Mounting Style | Approximate Radial Clamp Force per Station (lb.) | Approximate Downward Clamp Force per Station (lb.) | Weight |
|---|---|---|---|---|
| 15-5435-00 | Square | 2550 | 750 | 4.50 |
| 15-5435-01 | Flange Mount | 2550 | 750 | 5.00 |
