Power Supplies Air/Hydraulic Pump

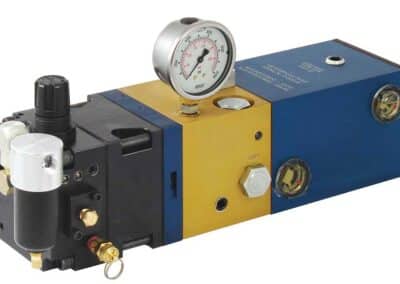

Compact Air/Hydraulic Pump
- Suitable for most single fixtures and small pallet systems.
- Powers either single or double acting cylinders.
- Any one of our DO3 valves can be mounted directly on the pump, no external sub-plate is necessary on most systems, or remotely by external plumbing.

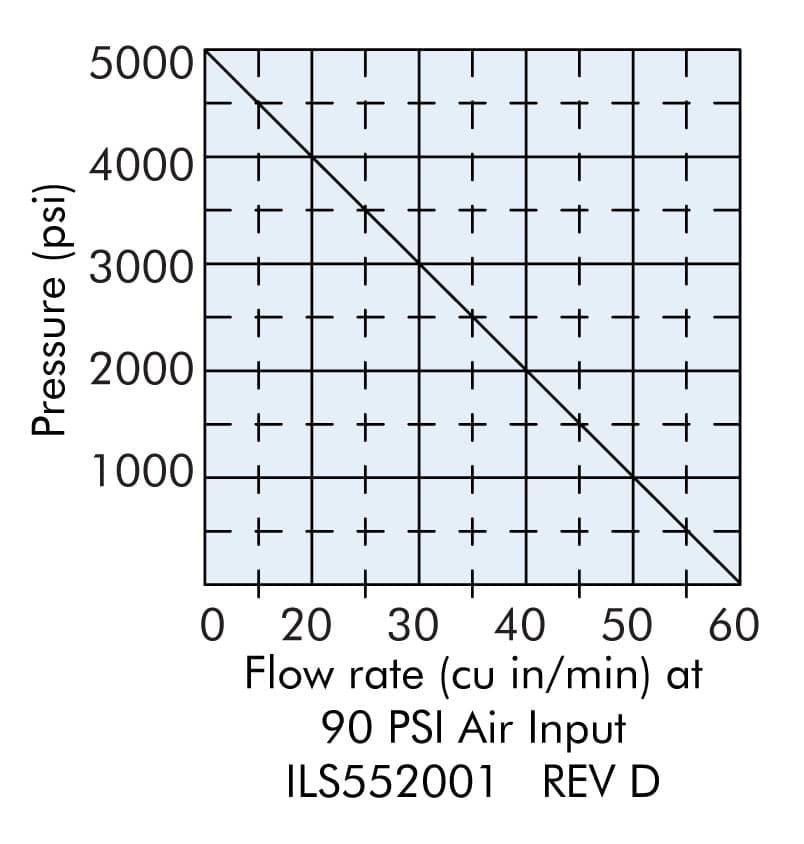

- Flow rates up to 60 cu. in. per minute. Position devices quickly then pressure builds to preset operating range.
- Built in air regulator adjusts to determine hydraulic output pressure from 1,200 to 5,000 psi.
- Mounting hardware is included.
- Noise level, 80 Db at 4 feet.
- If mounted vertically, the reservoir must be mounted up, filter bowl and regulator down.
| Model No. | Horizontal Reservoir Capacity | Vertical Reservoir Capacity | Minimum Air Input Pressure | Maximum Air Input Pressure | Maximum Air Output | Pressure Range (psi.) | Weight |
|---|---|---|---|---|---|---|---|
| 55-2056-00 | 68 cu. in. | 80 cu. in. | 50 psi | 120 psi | 100 psi. | 1200 - 5000 | 19.00 |
