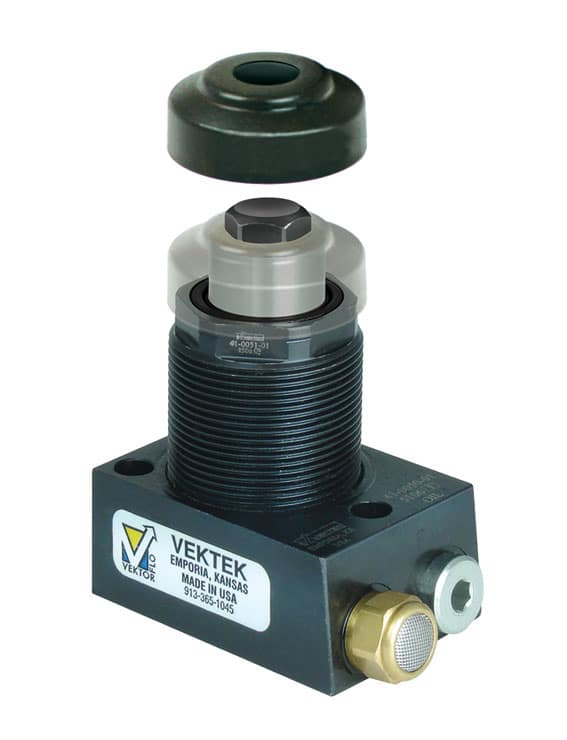

Fluid Advanced Work Support Shields
Metric Work Support Accessories
For Use With Single Acting Fluid Advance Work Supports Only.

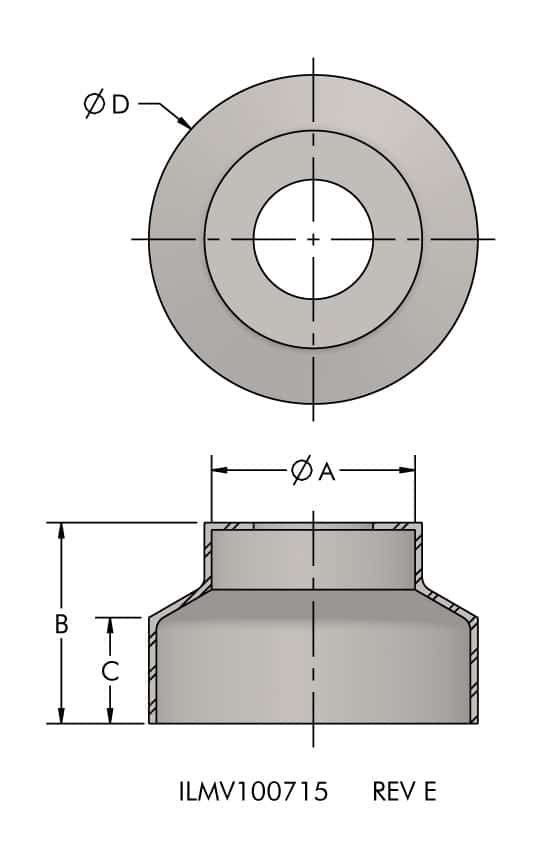

| Model No. | Used With Model No. | A | B | C | D |
|---|---|---|---|---|---|
| 41-0701-01 | 41-0070-03, 41-0070-13, 41-0071-03, 41-0071-13, 41-0708-10, 41-0808-10, 41-0808-20 | 21.6 | 19.3 | 9.2 | 37.6 |
| 41-0702-01 | 41-0171-12, 41-0706-17 | 17.3 | 21.8 | 14.2 | 32.8 |
| 41-0703-01 | 41-0070-14, 41-0071-14 | 16.8 | 22.4 | 16.8 | 28.4 |
| 41-0704-01 | 41-0704-10, 41-0804-20 | 10.7 | 12.7 | 8.2 | 23.1 |
| 41-0707-01 | 41-0070-04, 41-0071-04, 41-0706-10, 41-0806-10, 41-0806-20 | 16.8 | 12.7 | 7.6 | 28.2 |
| 41-0709-01 | 41-0710-10, 41-0810-20 | 28.5 | 22.1 | 9.2 | 47.4 |
| 41-0715-01 | 41-0070-05, 41-0071-05 | 23.4 | 25.4 | 14.7 | 59.9 |
