Valve Type: 24VDC 2-Position 3-Port Normally Closed

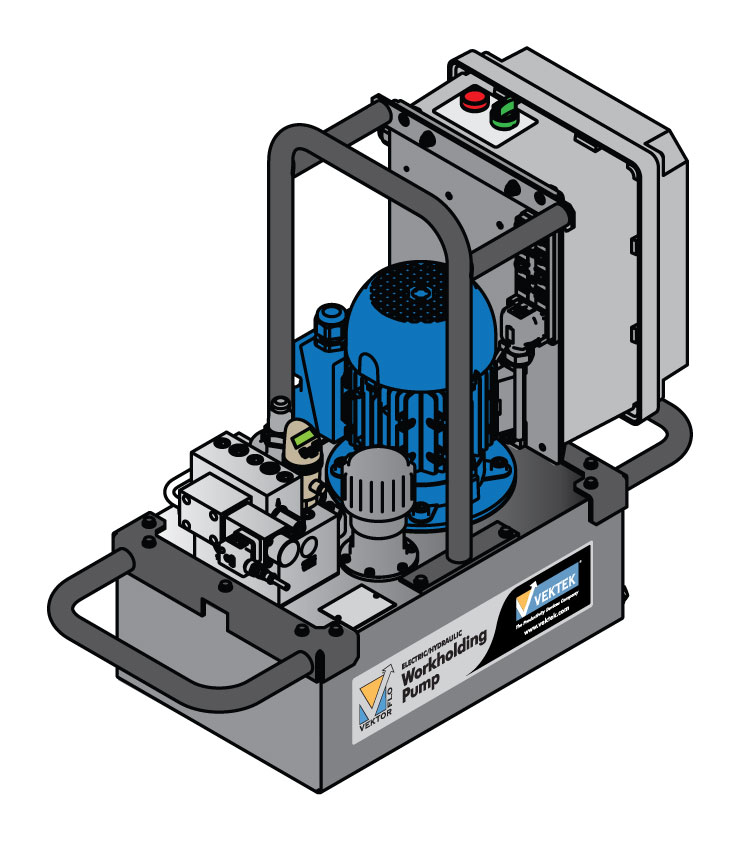

.75 kW Advanced Workholding Pump Pallet Decoupler Single Acting (one hose)

• Single Acting Live systems
• Use with Manual Pallet Decouplers, Tombstone Top Plates and Self-Closing (single hose) Decouplers.
• Operator interface is by remote pendant or can be wired into a machine controller.

NOTE: All decoupled valves are de-energized when not in use to avoid heat build-up between cycles.

Extremely low carbon footprint — Motor never runs while holding pressure

• Fully configurable 0-4 valve stack to meet all workholding needs.
• Manual or solenoid operated valves available in all configurations.
• Custom designed pendant for solenoid operated valves.
• Optional machine control cable for connection to CNC machine.
• Vektek electronic pressure switch with analog output to VFD for pi loop control.
•  Return line filter with visual clog indicator is standard on all pumps.
• 127 mm oil level site glass, drain plug, and isolation foot pads.
• Large filler / breather for easy oil changes and filling.
• In-tank fluid level sensor, electronically connected to fault circuit.
• 10 Micron, return line filter for maximum protection and long life.
• Visual or optional electronic filter clog indicator.
• Vertical pump lift handle for use with crane or fork lift.
• Horizontal lift handles for manual lifter and protection.
• Reusable BUNA-N rubber gaskets with PSA backing throughout.
• High efficiency, HI/LO 2-stage flow, 6 piston pump design.
• Premium efficiency. VFD rated, TEFC, AC motor, .75 KW, 3-PH, 230/460 VAC, 50/60-HZ, 1800 RPM.
• Variable frequency drive (VFD) motor control system, Configured for electrical inputs worldwide.
• VFD internally protected from short circuit on all models.
• No duty cycle limitations due to VFD thermal protection.
• Large 18.9 Liter reservoir designed for maximum usable oil volume.
• 5 Screen/filter components for maximum protection of pump and devices.
• Working pressure range of 100-350 bar.

Pump Add-on Options

• Valve Wiring Cable (one for each valve).
• Pump/Machine Tool Interface Cable (all pump control in one cable).
• Tempurature switch upgrade to oil level switch.
• Electronic clog indicator upgrade to visual return line filter.
• Mechanical pressure switch (no power required).
• Electronic pressure switch (24V power required).
• Manual or solendoid directional control valve functions.
• Check Valve (for multiple manual valves in stack).
• Pressure reducing valves for each circuit.
• Accumulator (for small or low pressure systems).
• Extra pendant switches (1 supplied with each different solenoid valve on pump for setup and testing).
• 2-Hand No-Tie-Down Control Module (for use with decoupled systems only).
