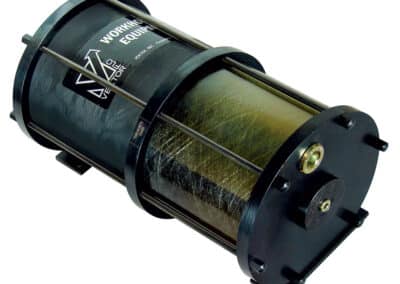

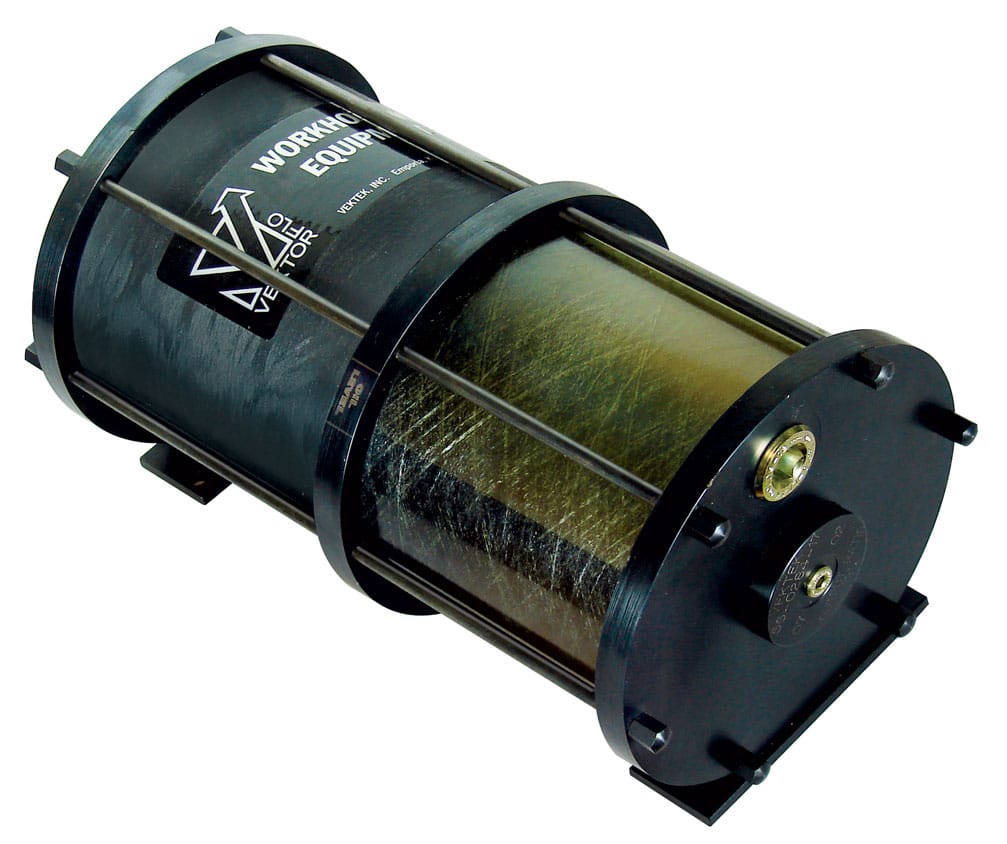

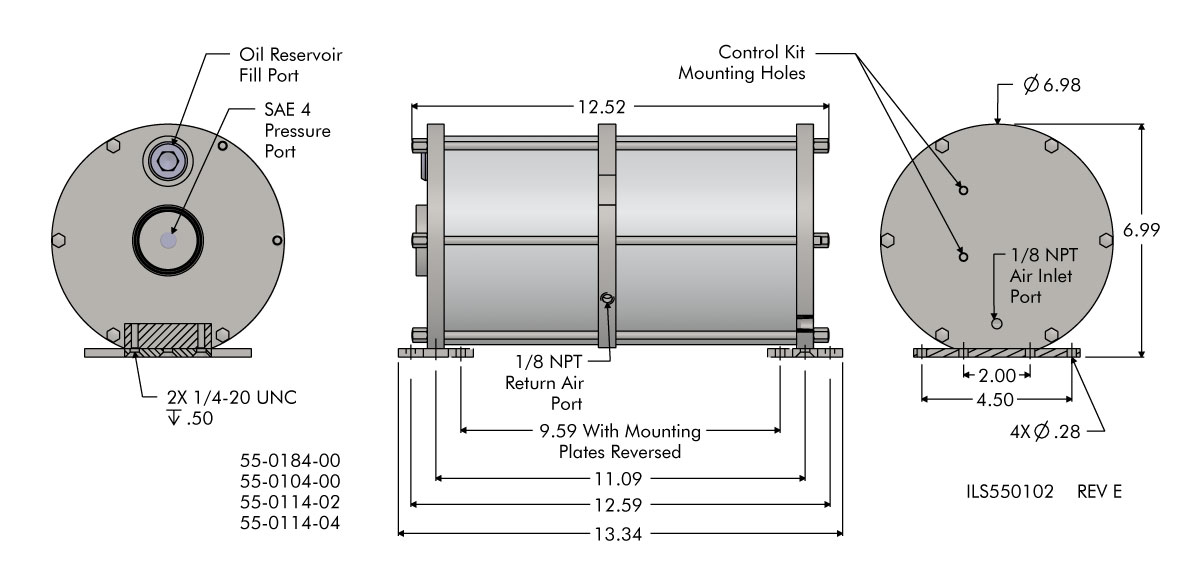

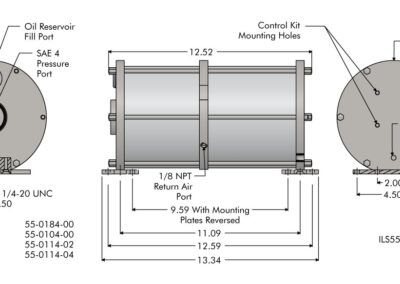

Compact Air/Hydraulic Booster
- Multiplies your shop air line pressure to power simple hydraulic systems without electricty.
- Intensification ratios ranging from 11:1 to 54:1.
- Output capacities from 2.1 to 9.6 cu. inches.
- A five port, two-position valve is recommended to provide double acting control of the air piston.
- Placing the pump over the system will naturally bleed air from the hydraulic circuit.

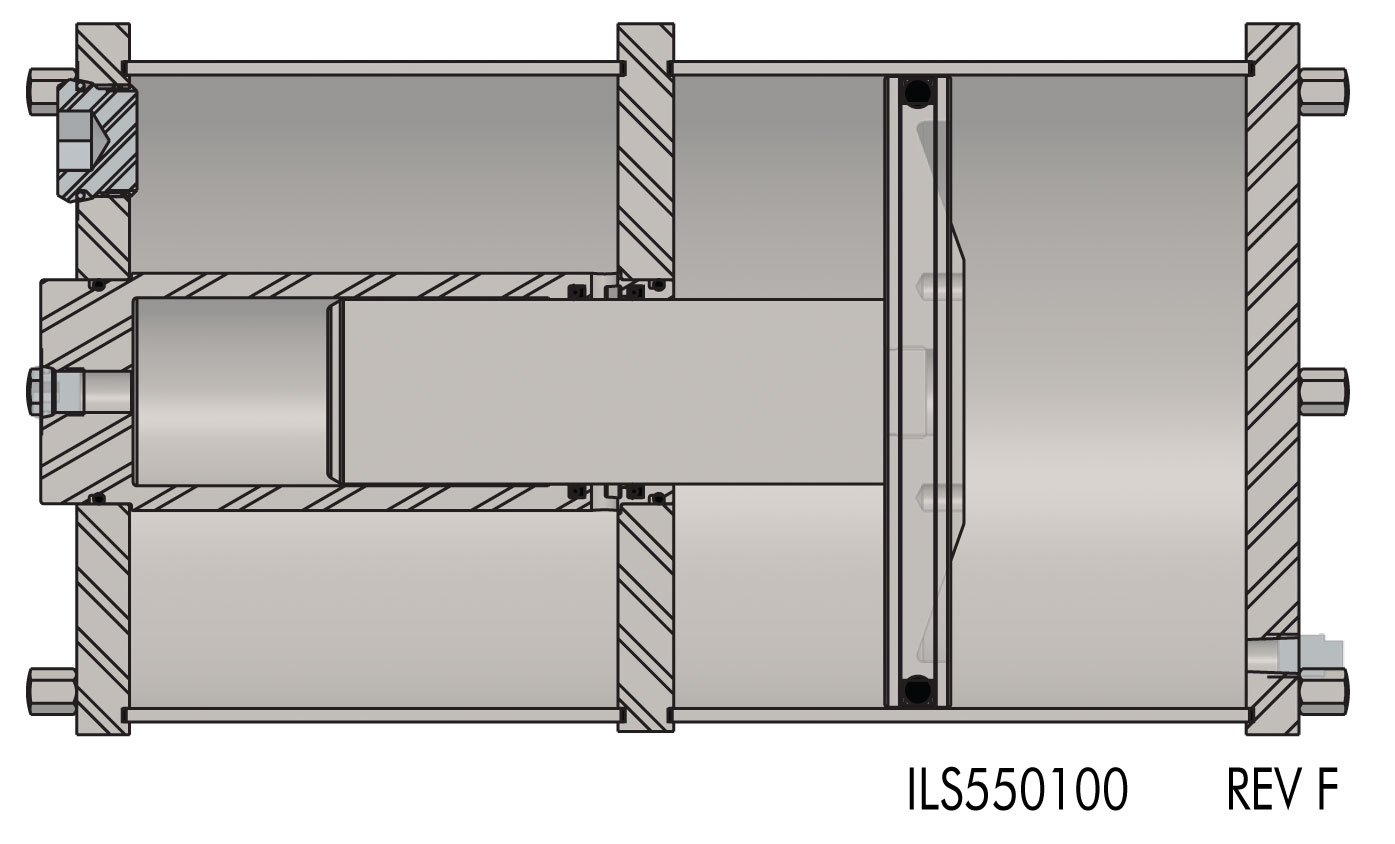

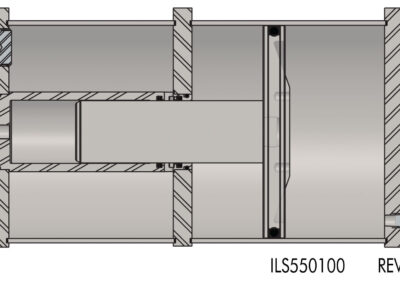

Air/hydraulic boosters are an inexpensive way to power one single acting system. Whether this is your first system or you want a compact ride-along power supply for a system, these boosters are an efficient choice. Solid end and intermediate plates capture a reinforced epoxy case which acts as the air cylinder and fluid reservoir. The hydraulic piston runs in a steel cylinder immersed in the fluid reservoir. The double acting air piston design assures you of full fluid capacity on each actuation of the booster.
NOTE: One booster can be used to operate one single acting system. Boosters are not intended for use with single acting palletized (disconnected) systems. Boosters may be mounted horizontally or vertically. If mounted vertically, the oil discharge end must point up for proper operation.

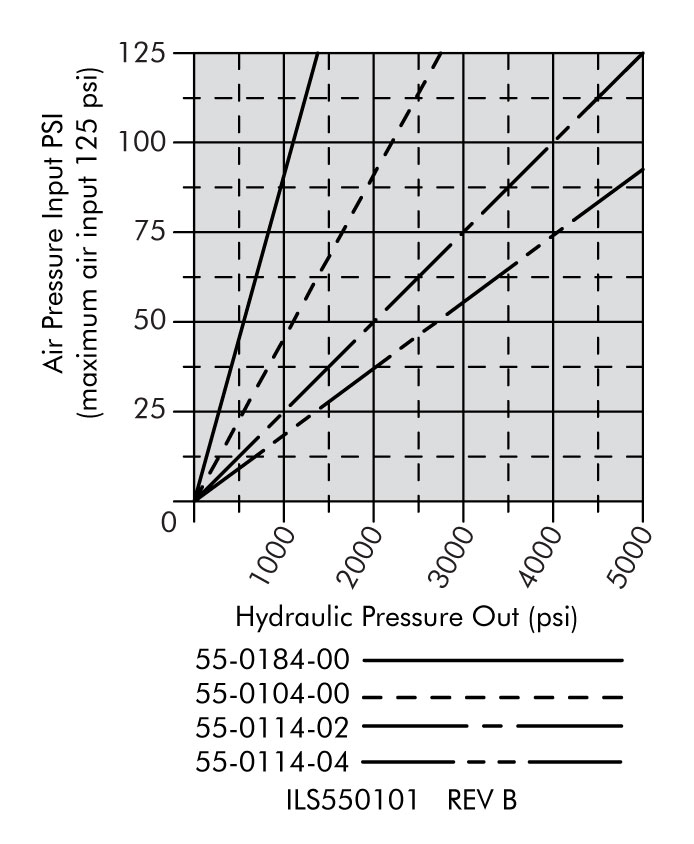

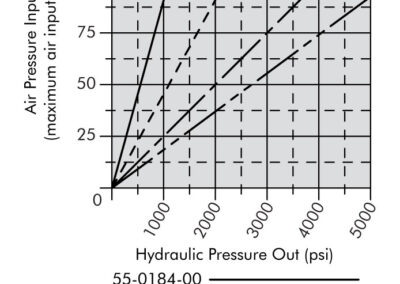

| Model No. | Intensification Ratio | Useable Oil Volume | Maximum Air Input Pressure |
|---|---|---|---|
| 55-0184-00 | 11:1 | 9.6 cu. in. | 125 psi |
| 55-0104-00 | 22:1 | 5.0 cu. in. | 125 psi |
| 55-0114-02 | 40:1 | 2.8 cu. in. | 125 psi |
| 55-0114-04 | 54:1 | 2.1 cu. in. | 125 psi |
