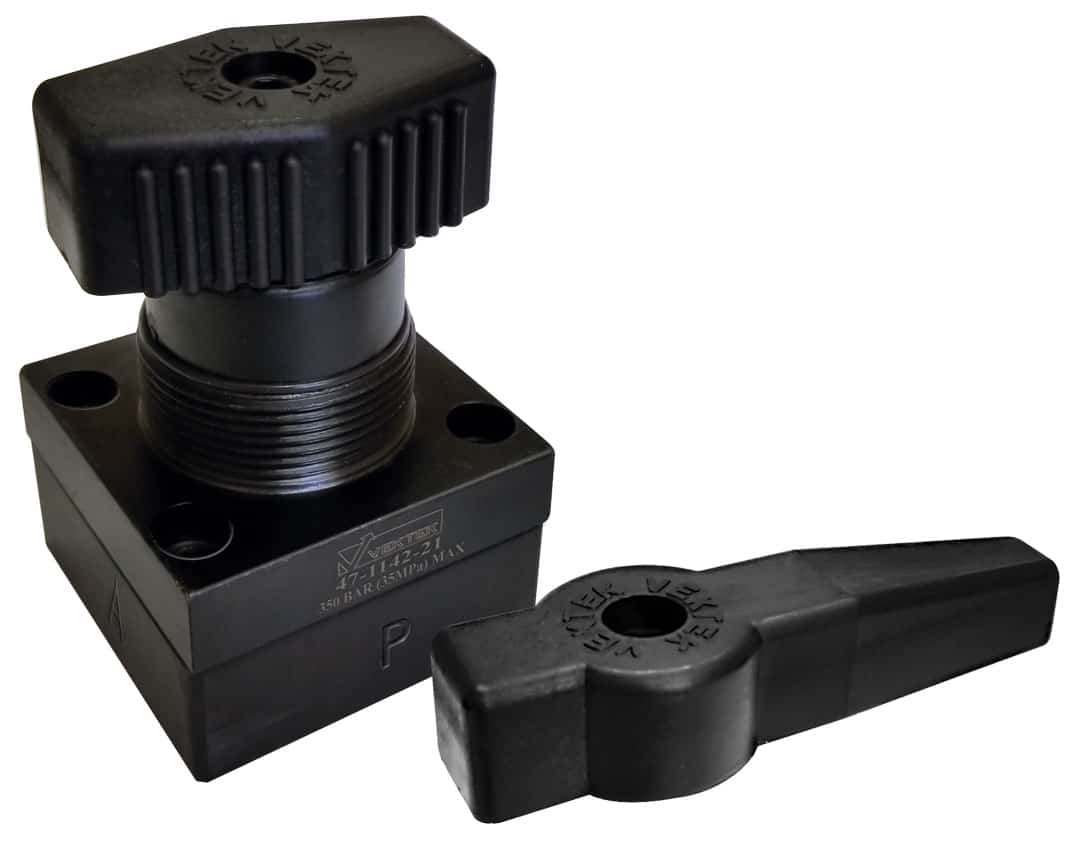

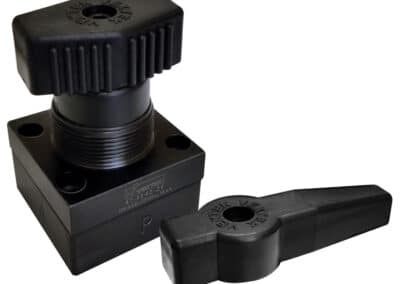

Manual Control Valve: 3-Port, 2-Position
Metric Directional Control Valves
- For use with single acting systems.
- Heat treated rotor and poppets provide positive fluid control.
- Detented internal rotor.
- All valves ship with short and long handles.
- Handle orientation can be adjusted in 45° increments.
NOTE: Maximum system flow rate is 5.7 L/m for all VektorFlo® metric valves unless otherwise noted. Excess flow voids warranty.
| Model No. | Fluid Flow Maximum | Tank Port Pressure | Valve Mounting |
|---|---|---|---|
| 47-1142-21 | 5.7 l/min | 17 bar (1.7 MPa) | CETOP 3 |
| 47-1142-25 | 5.7 l/min | 17 bar (1.7 MPa) | Panel Mount |
