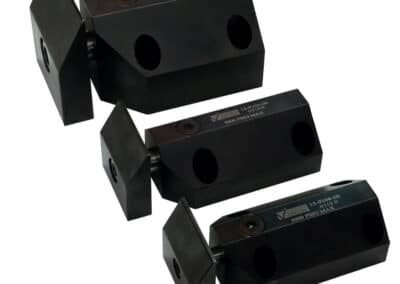

Part Crowder
Single Acting
- Select from 3 cylinder capacities: 550 lbs., 980 lbs. and 2,200 lbs.
- Use fewer components to secure parts.
- Crowding and clamping pressure applied at the exact same point on parts.
- Spring contact force and hydraulic holding force.
- Single acting device.
- Hardened contact plate.
- Flexible plumbing options accommodate either manifold mounting or SAE.
- BHC™ (Black Hard Coat) finish.
* Add an F to the end of the model number to order fluorocarbon seals.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application,multiply the Piston Area times Your System Operating Pressure. (Actual force may vary slightly due to friction loss, seal and wiper drag and/or return springs.)
*** Shaft lock feature prevents the shaft from rotating while changing the contact plate. For use, see instructions on the parts list.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application,multiply the Piston Area times Your System Operating Pressure. (Actual force may vary slightly due to friction loss, seal and wiper drag and/or return springs.)
*** Shaft lock feature prevents the shaft from rotating while changing the contact plate. For use, see instructions on the parts list.
For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.
* Add an “F” to the end of the model number to order fluorocarbon seals.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, multiply the Piston Area times Your System Operating Pressure. (Actual force may vary slightly due to friction loss, seal and wiper drag, and/or return springs.)
*** Shaft lock feature prevents the shaft from rotating while changing the contact plate.
For use see instructions on the assembly parts list.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, multiply the Piston Area times Your System Operating Pressure. (Actual force may vary slightly due to friction loss, seal and wiper drag, and/or return springs.)
*** Shaft lock feature prevents the shaft from rotating while changing the contact plate.
For use see instructions on the assembly parts list.
| Model No. | Spring Contact Force (lb.) | Hydraulic Clamp Force (lb.) | Piston Area (sq. in.) | Oil Capacity (cu. in.) |
|---|---|---|---|---|
| 15-9104-00 | 5.5-11 | 550 | 0.110 | 0.108 |
| 15-9105-00 | 14-20 | 980 | 0.196 | 0.194 |
| 15-9108-00 | 21-27 | 2200 | 0.442 | 0.350 |

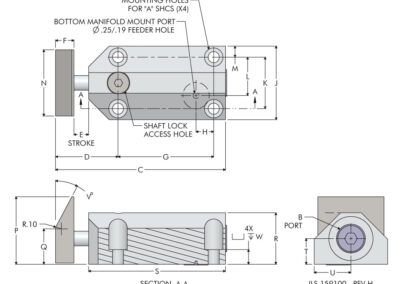

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15-9104-00 | #8 | SAE 4 | 2.90 | 1.07 | 0.26 | 0.31 | 1.625 | 0.300 | 1.25 | 0.875 | 0.653 | 0.19 | 1.13 | 1.15 | 0.60 | 0.88 | 2.33 | 0.44 | 0.63 | 28 | .25 |
| 15-9105-00 | #10 | SAE 6 | 3.14 | 1.26 | 0.26 | 0.38 | 1.625 | 0.280 | 1.50 | 1.063 | 0.782 | 0.22 | 1.25 | 1.27 | 0.70 | 0.98 | 2.50 | 0.49 | 0.75 | 31 | .25 |
| 15-9108-00 | 1/4 in. | SAE 4 | 3.50 | 1.50 | 0.25 | 0.50 | 1.625 | 0.188 | 2.25 | 1.688 | 1.157 | 0.28 | 2.00 | 2.02 | 1.14 | 1.63 | 2.75 | 0.81 | 1.13 | 28 | .63 |
