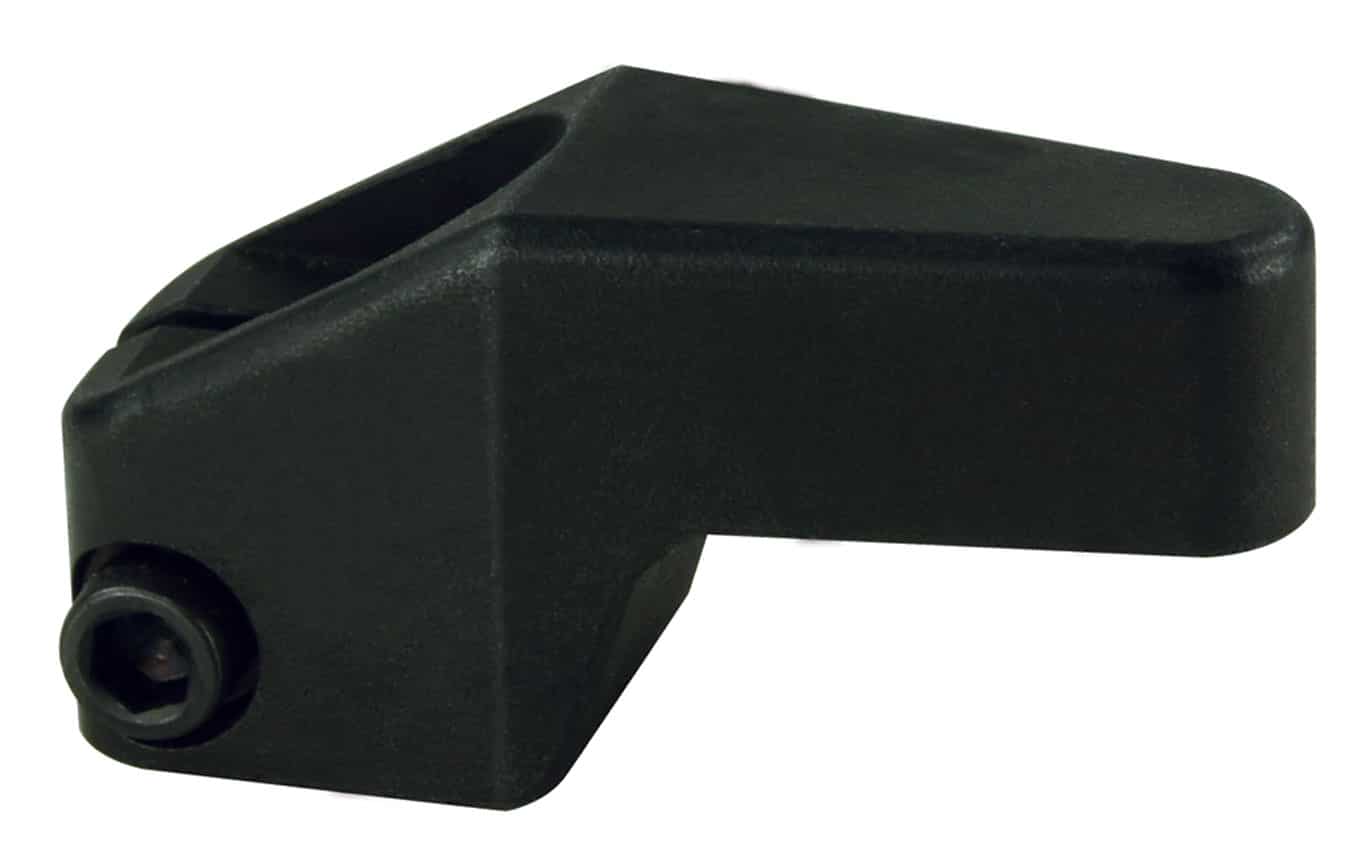

Upreach
Metric Swing Clamp Arms
For arm limits, see the Swing Clamp Arms Learn More Page.

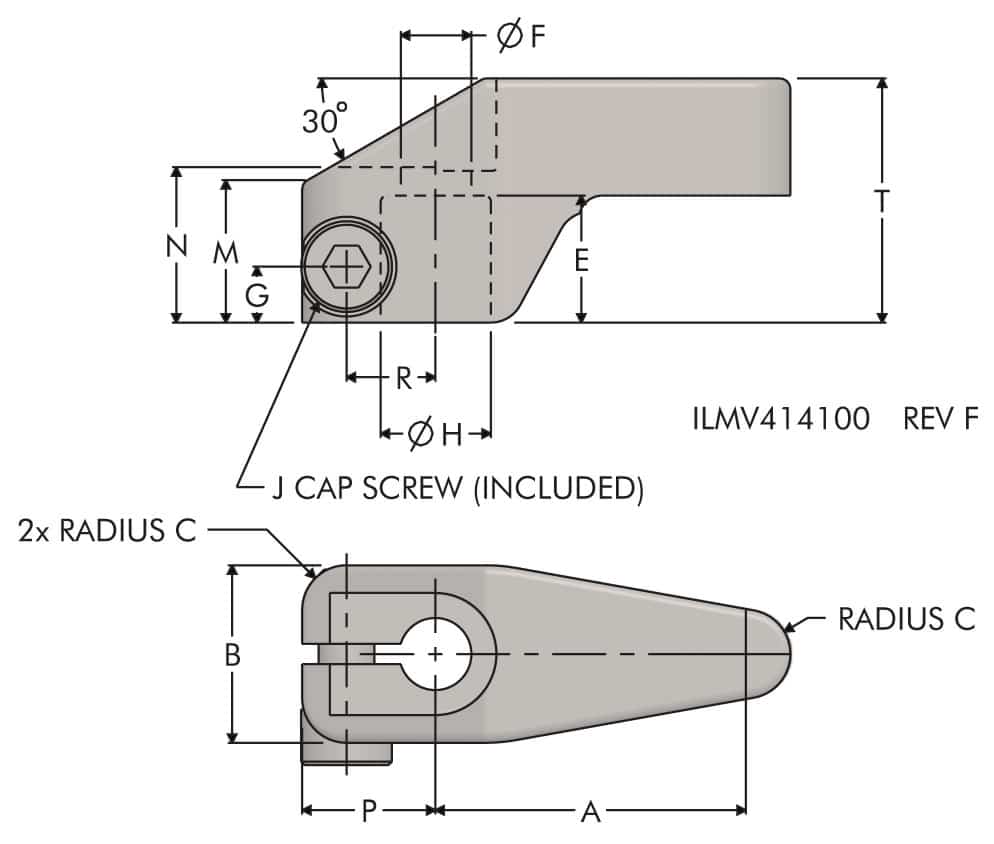

| Model No. | Clamp Capacity (kN) | A | B | C | E | F | G | H | J | M | N | P | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-1411-00 | 2 | 32 | 19 | 5 | 12.5 | 7 | 6.5 | 11.13 - 11.18 | M6 X 1 | 14 | 16 | 16 | 9.5 | 25.5 |
| 44-1415-00 | 4.9 | 44.5 | 25.5 | 6.5 | 18 | 10.5 | 8 | 15.88 - 15.92 | M8 X 1.25 | 20.4 | 22 | 19 | 12.5 | 35 |
| 44-1422-00 | 11.6 | 63.5 | 35 | 9.5 | 25.5 | 13.5 | 11.2 | 22.23 - 22.28 | M10 X 1.25 | 29.3 | 32 | 26 | 16.5 | 51 |
| 44-1431-01 | 22 | 76 | 51 | 14.3 | 36.6 | 16.7 | 13.5 | 31.75 - 31.80 | M16 X 1.5 | 42.2 | 44.5 | 38 | 24.6 | 70 |
