Flow Control

Accessory Valves

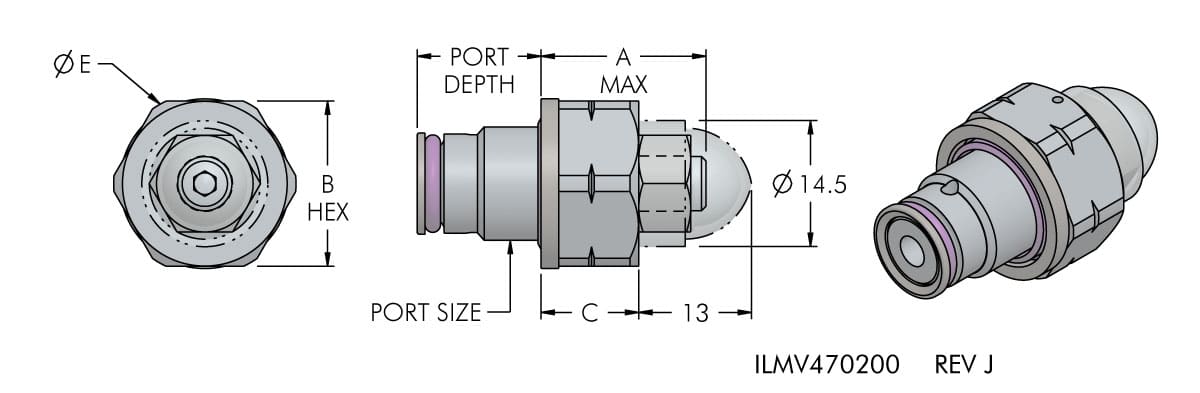

In The Port Precision Flow Control

• Use with single or double acting clamps.
• Meter-in flow control with reverse free flow check valve.
• Smallest high-pressure flow control valve on the market.
• Prevent component cam damage from unexpected or accidental surges in flow rate.
• Adjusting screw is positively retained and will not come out under pressure.
• Integral reverse free flow check valve for use with single or double acting clamps.

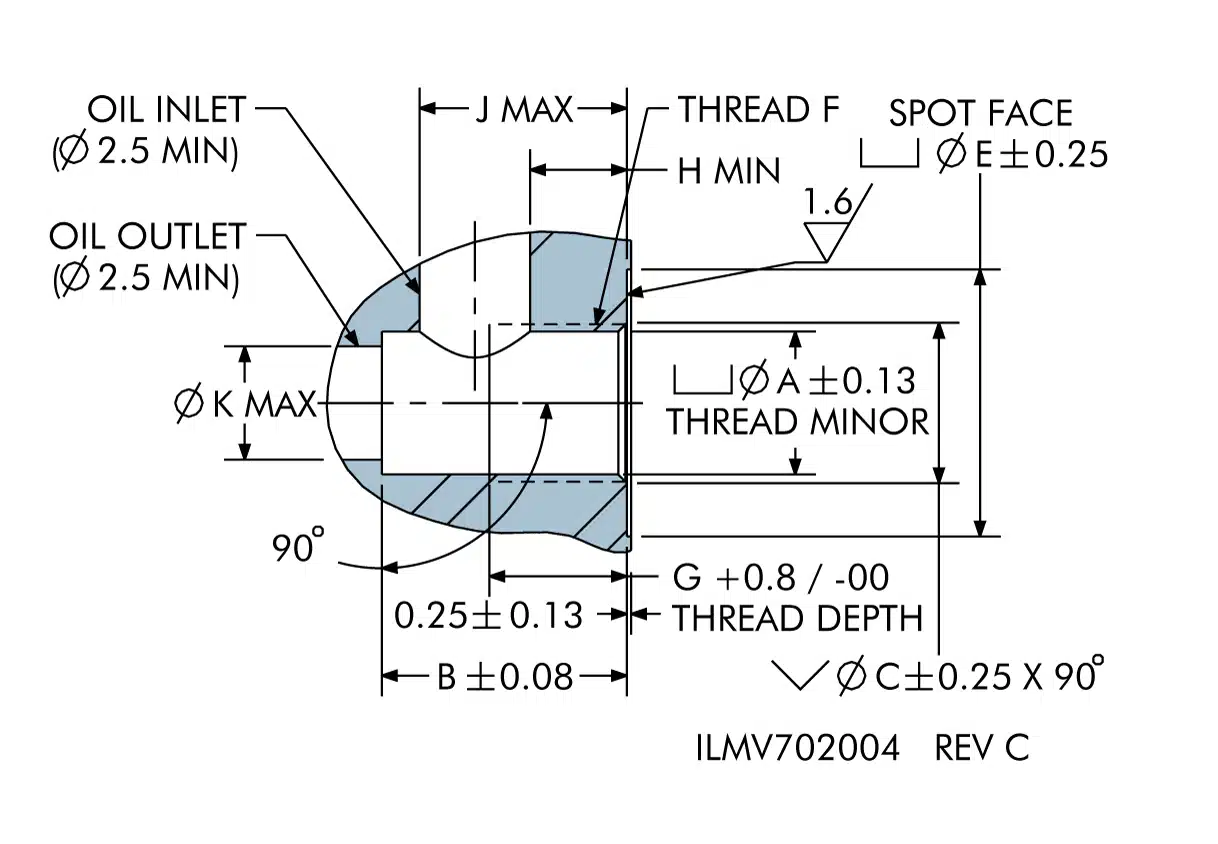

• Flow control requires the use of manifold mount ports.

Consult the Swing Clamp or Link Clamp specifications page for the valve that is appropriate for your application.

NOTE: Max flow rate not to exceed the individual device rating or 3.8 l/min whichever is lower.

NOTE: Max flow rate not to exceed the individual device rating or 3.8 l/min whichever is lower.
