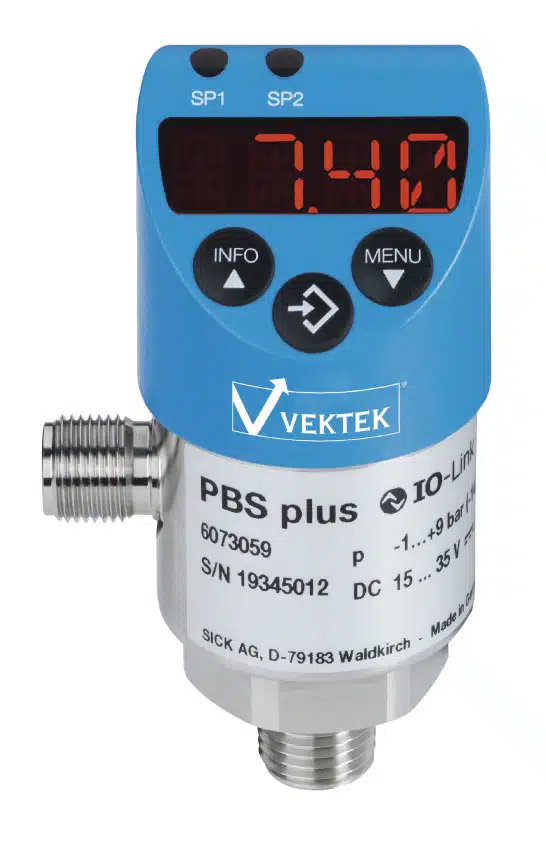

Powered LED Display Electronic Pressure Switch
Pressure Switches
- Large 4 digit LED pressure display.
- Requires power (15-32 VDC).
- Programmable deadband.
- Easy 3-Button programmable electronic pressure switch.
- 2 digital switching outputs, 500 mA Rating, PNP only.
- Single analog output, 0-10 V or 4-20 mA.
- Set pressure range of 0-6,000 psi.
- Programmable reset pressure for each output.
- Sealed switch for operation in high moisture environments. Complies with IP 67 rated guidelines or Nema Rating 6.
- Suitable for rapid cycling applications.

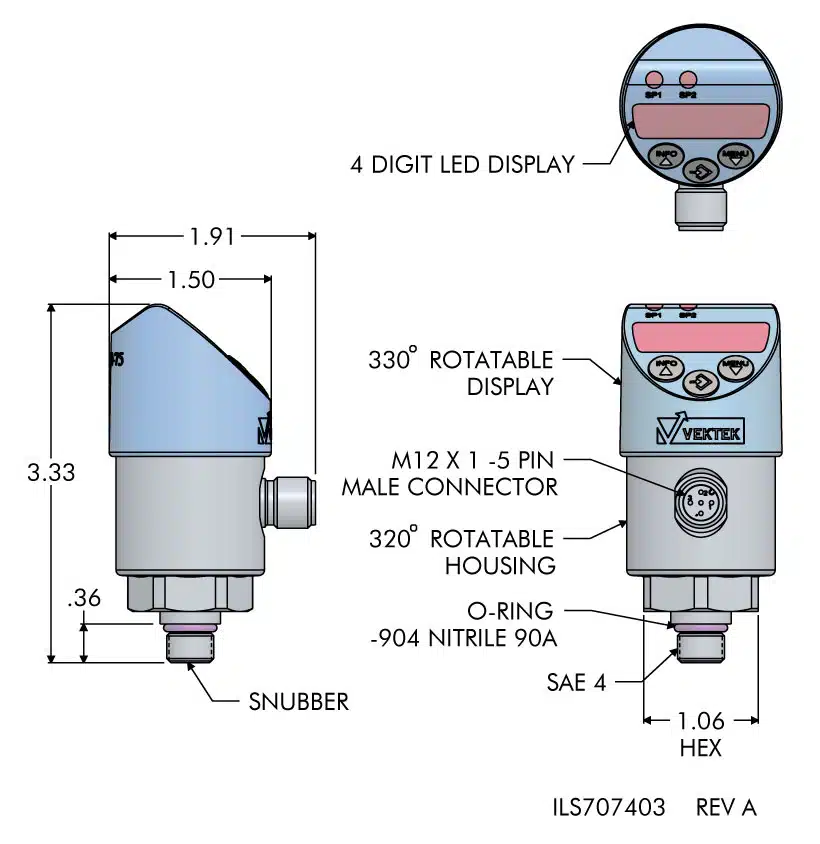

- Display and electronic connection: rotatable by 320°.

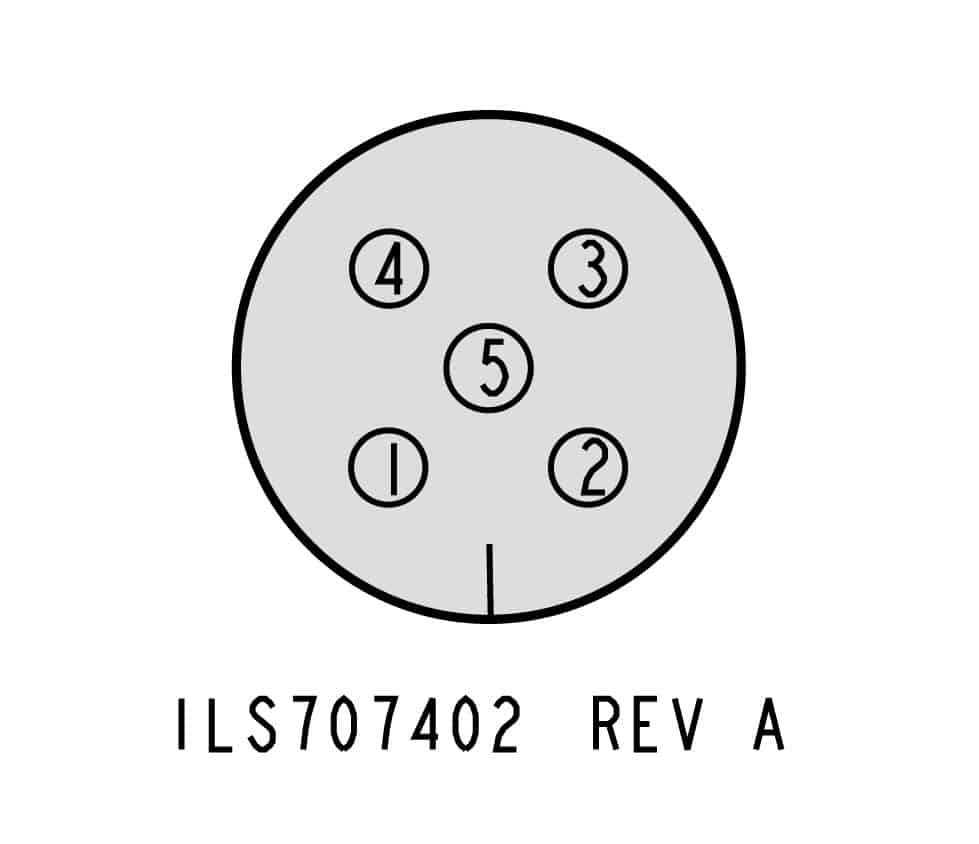

| Plug Pin | Input/Output |
| Pin 1, Brown | +15 – 32 VDC |
| Pin 2, White | Analog |
| Pin 3, Blue | 0 V |
| Pin 4, Black | SP1 0.5 A Max |
| Pin 5, Gray | SP2 0.5 A Max |
| Model No. | Set Pressure Range | Electrical Connection | Power Supply | Power Consumption | 2 Digital Contacts | 1 Analog Output | Media Temp. Range |
|---|---|---|---|---|---|---|---|
| 70-7400-75 | 0 - 5800 psi | M 12 Male 5 Pin | 15 - 35 VDC | 45 mA | Porgrammable N/O or N/C | Programmable 0 - 10 V or 4 / 20 mA | -4 to +176° F |
| Model No. | End 1 Connection | End 2 Connection | Length (ft.) |
|---|---|---|---|
| 27-7422-00 | Male 90° | Female 90° | 2.0 |
| 27-7422-01 | Male Straight | Female Straight | 2.0 |
| 27-7422-03 | Female Straight | Male Straight | 16.4 |
| 27-9422-02 | Male Straight | Female Straight | 32.8 |
