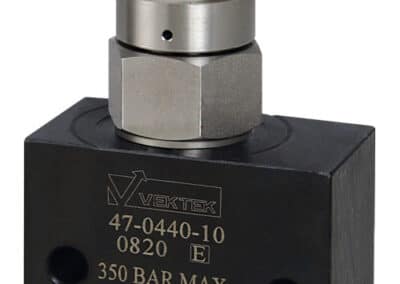

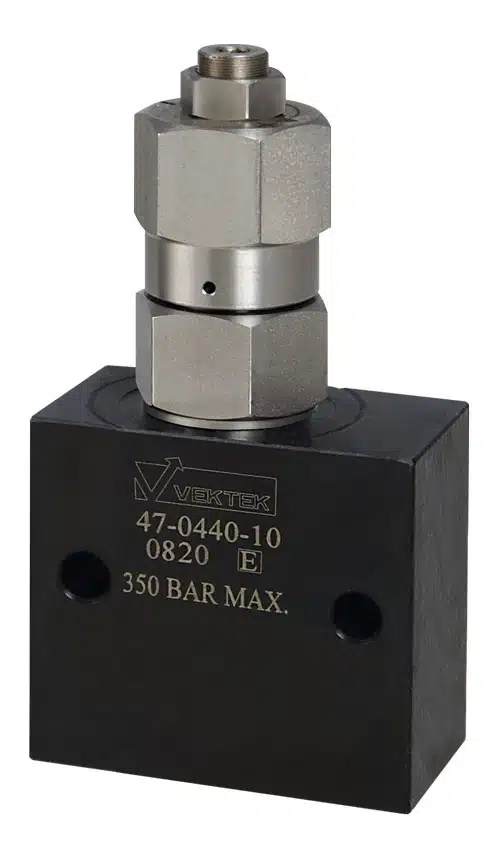

Sequence Valve for Tight Spaces
Ported and Manifold Mount
- 20% narrower than standard sequence valve.
- Valve is 100% stainless steel construction and resists the corrosion which can cause other styles to misfire.
- The valve is the same one used in the larger block.
- Direct acting poppet style, adjustable cartridge type construction.
- The cartridge may be installed directly into your manifold.
- Pressure adjustment ranges are: 52 bar (5.2 MPa) to 350 bar (3.5 MPa) and 20 bar (2.0 MPa) to 62 bar (6.2 MPa).
- True sequence design allows full system pressure downstream of valve after opening.
- Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (min.)
* Maximum inlet pressure for sequence valves is 350 bar Excess flow voids warranty
Order a Filter Plate to protect valves from debris.

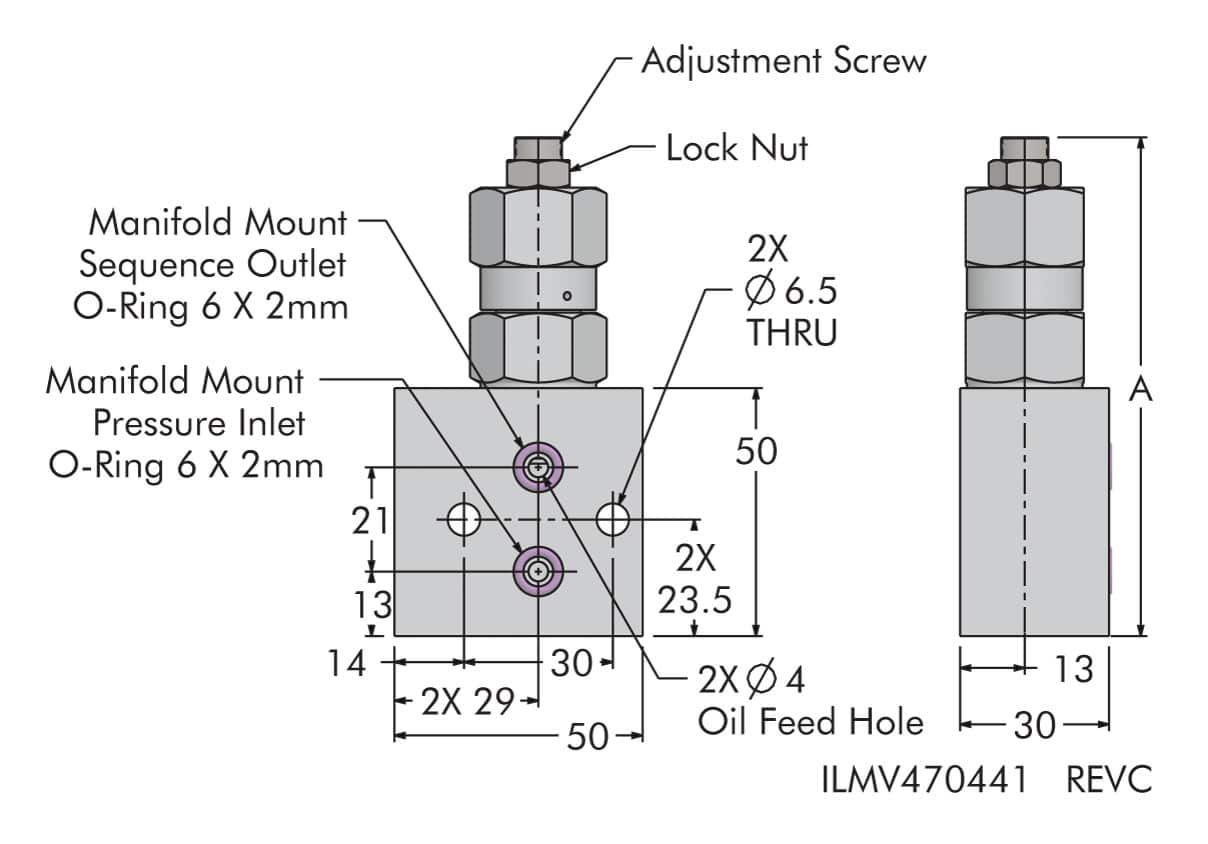

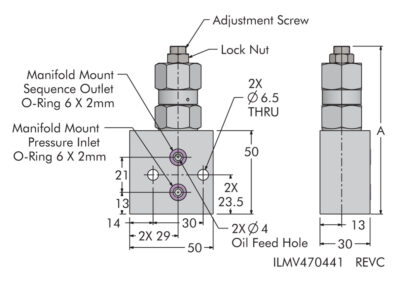

Manifold Sequence

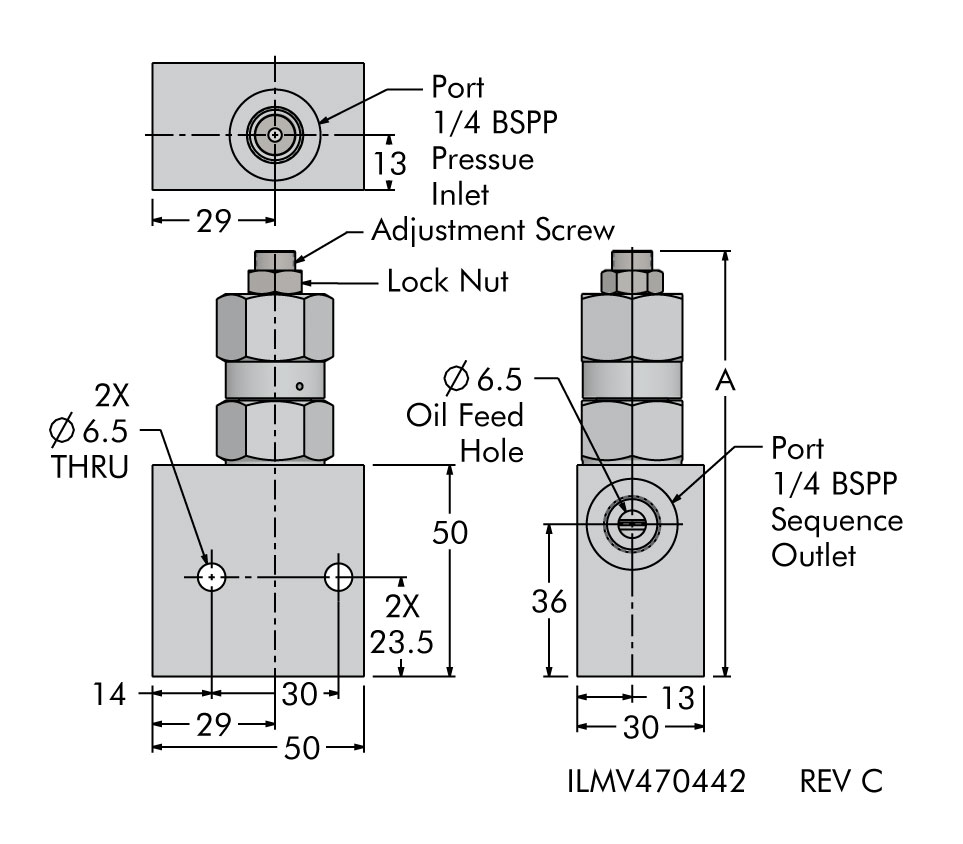

G1/4 BSPP Sequence
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Mounting Style | Set Pressure Range | Max Flow |
|---|---|---|---|
| 47-0440-10 | Manifold - Tight Spaces | 52 - 350 bar | 5.7 l/min |
| 47-0440-11 | Manifold - Tight Spaces | 20 - 62 bar | 11.4 l/min |
| 47-0440-12 | G 1/4 - Compact | 52 - 350 bar | 5.7 l/min |
| 47-0440-13 | G 1/4 - Compact | 20 - 62 bar | 11.4 l/min |
| Model No. | A |
|---|---|
| 47-0440-10 | 101 |
| 47-0440-11 | 116 |
| 47-0440-12 | 101 |
| 47-0440-13 | 116 |
